IP Enclosures

Filter Vent 204 x 204

SKU
In stock
Stock on hand
West Midlands WarehouseDroitwich, WR9 0NR
32 in stock
Updated just now
Shipping & pickup →
£23.72 ex. VAT £28.46 inc. VAT
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Height (mm) 204
  • Width (mm) 204
  • IP & IK Rating IP54
  • Colour Grey (RAL7035)

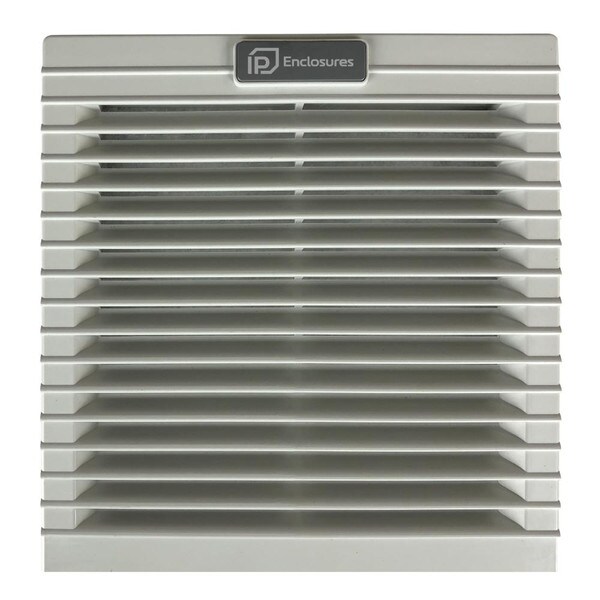

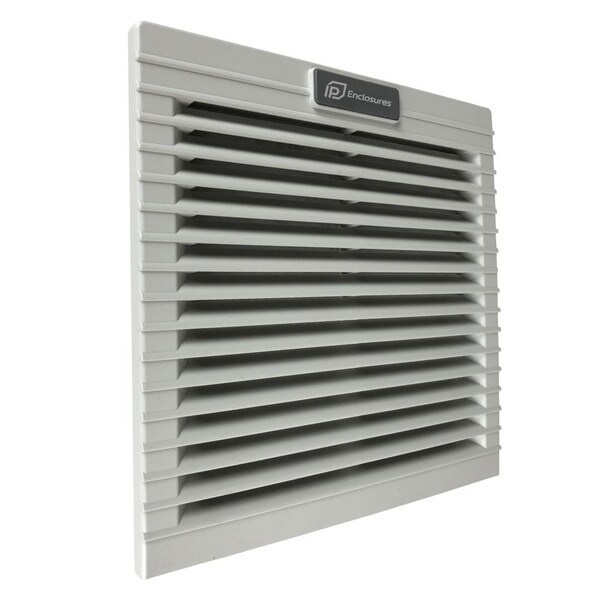

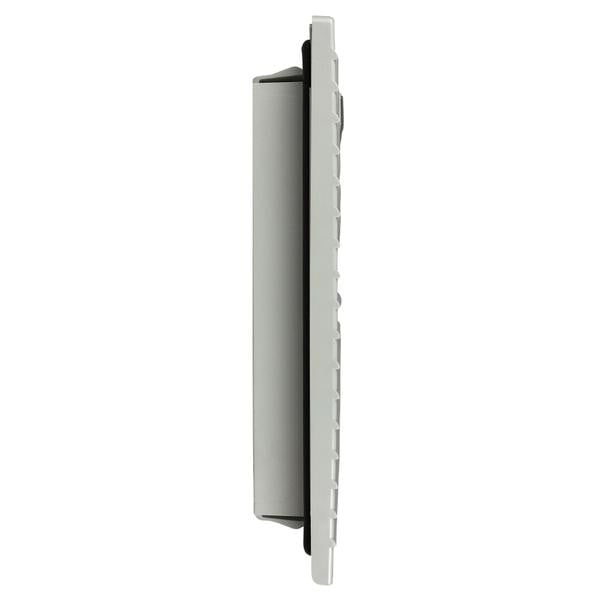

Filter Vent 204 x 204

High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.

G3 Filter Mat Included.

Features Unit IP-V3000
Air flow rate (free blow) m³/h –
Flow rate with exit filter m³/h –
Power supply V/Hz –
Dimensions HxLxP mm 204x204x37
Power consumption W –
Current consumption A –
Overcurrent consumption – –
Electric connection – –
Duty cycle – –
Operating temperature °C – 10 / +70 (+14 / +158)
Protection degree/class – IP54
Noise level dB(A) –
Flow direction – –
Bearing – –
Filter mat (Eurovent) – G3
Service life (at 40°C) hr –
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 0.32(0.42)
Package dimensions mm 220x220x43
Montaggio – fast clip-on
Cut-Out dimensions mm 177x177
Conformity/Approvals – CE
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG
