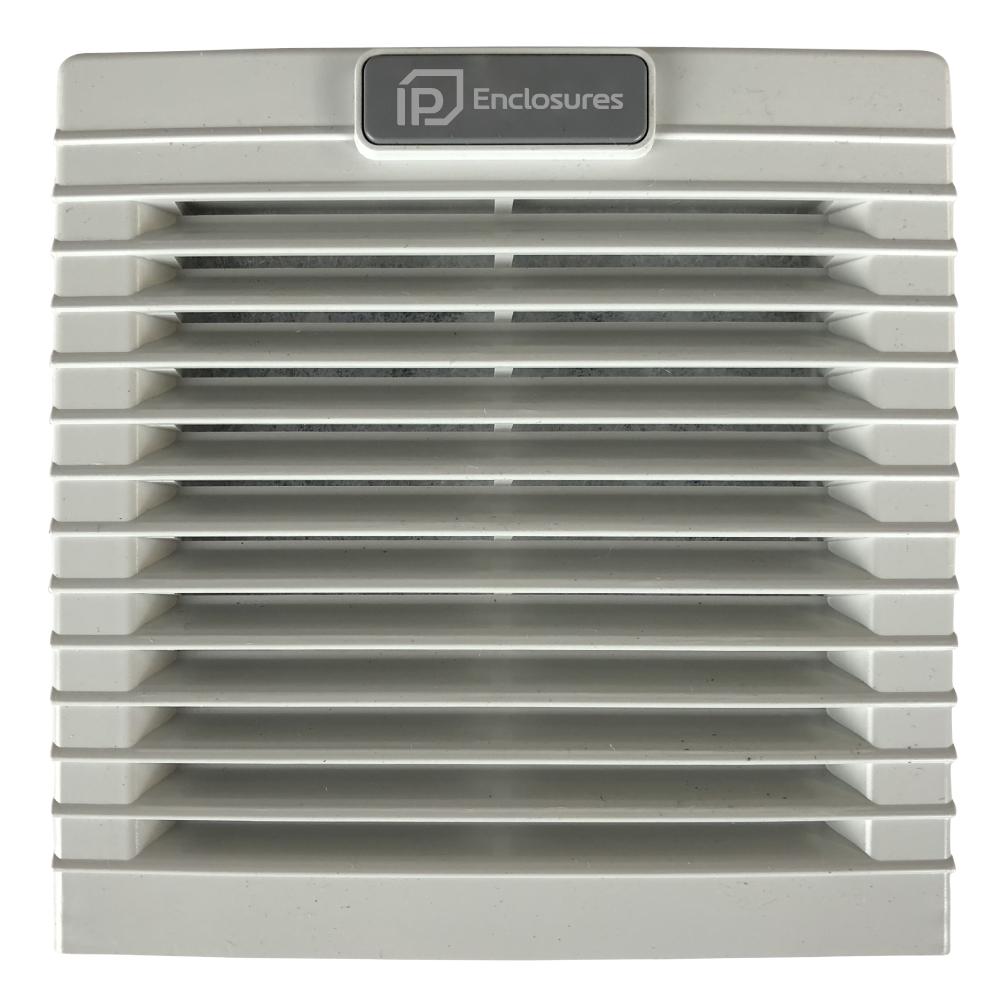

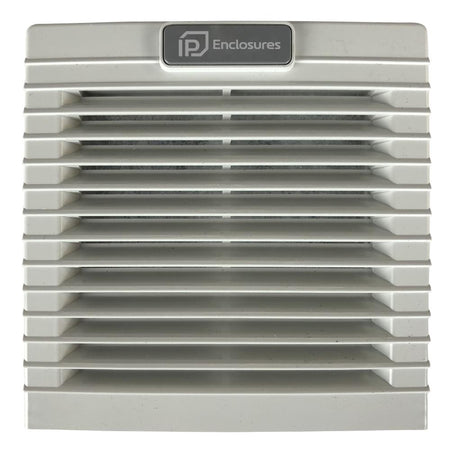

Filter Fan 114 x 114 25m3/hr 230V — IP Enclosures

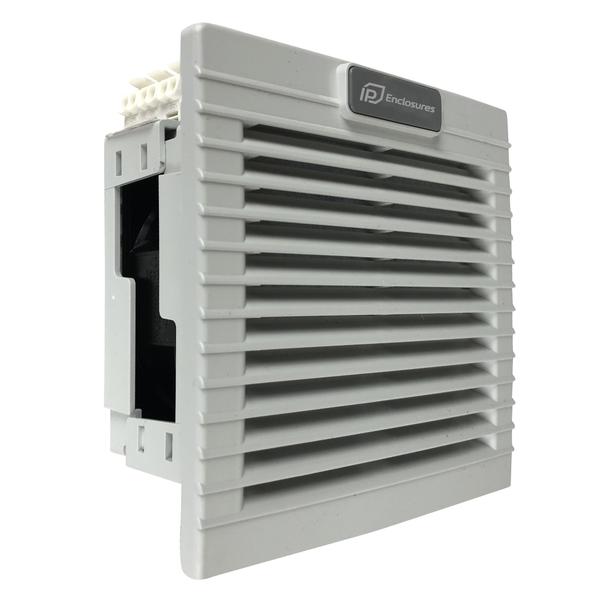

IP-V1100 - image 2

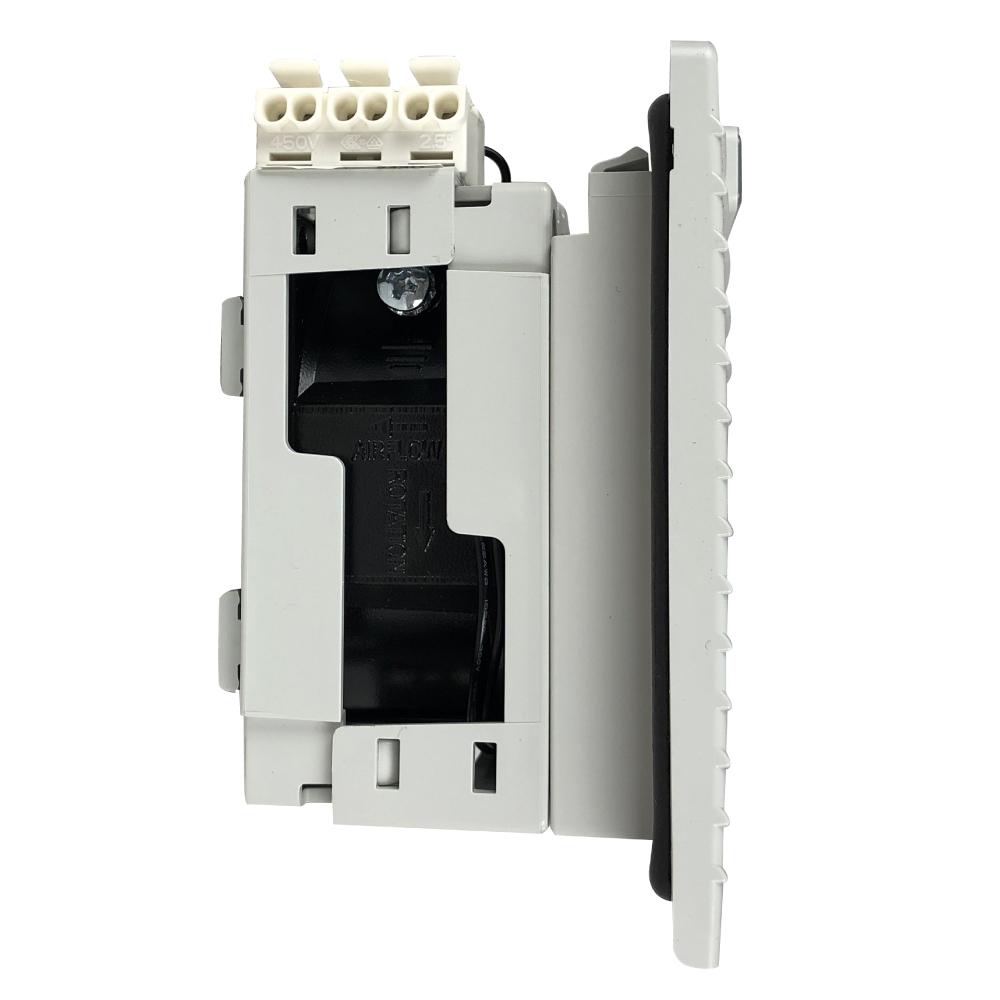

IP-V1100 - image 3

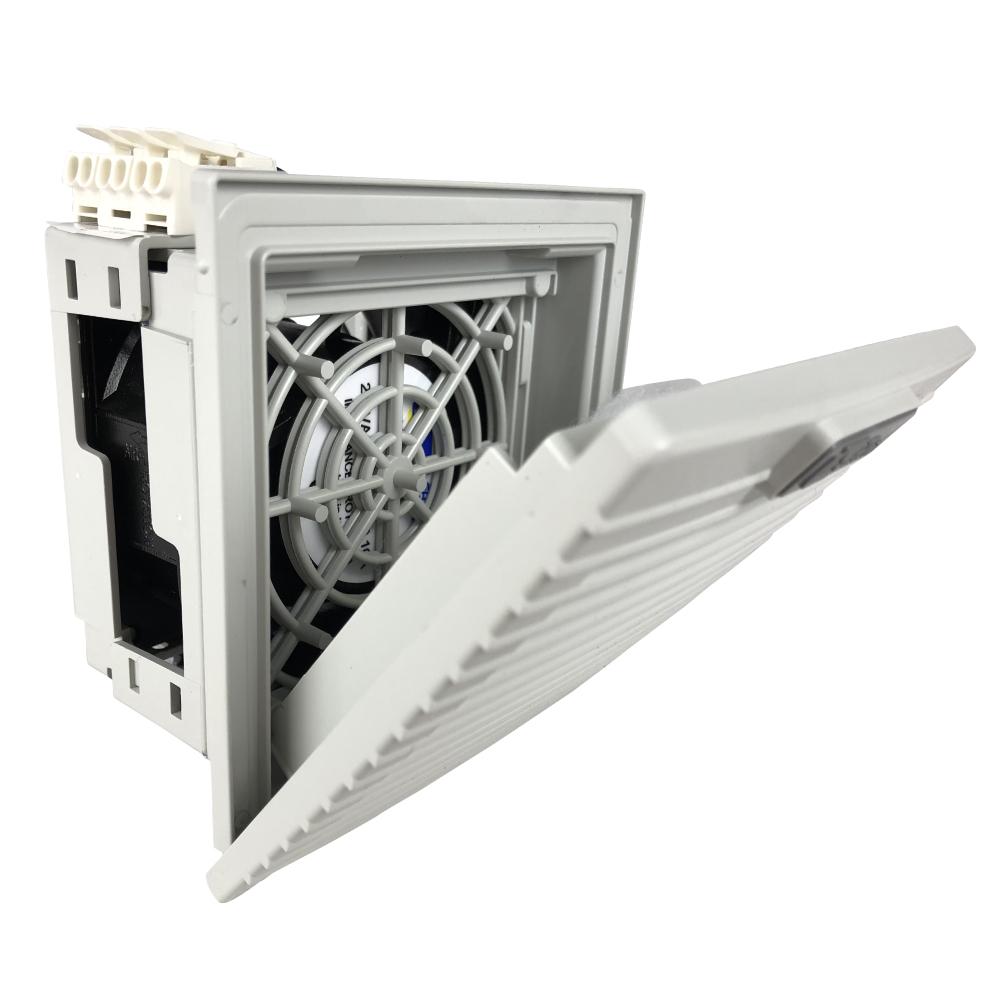

IP-V1100 - image 4
Filter Fan 114 x 114 25m3/hr 230V — IP Enclosures
IP-V1100 - image 2
IP-V1100 - image 3
IP-V1100 - image 4

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Filter Fan 114 x 114 25m3/hr 230V

SKU
£48.50 ex. VAT £58.20 inc. VAT
In stock
6 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Height (mm) 114
  • Width (mm) 114
  • Colour Grey
  • IP Rating IP54
  • Voltage 230V
  • Size 26m3/h

Filter Fan 114 x 114 25m3/hr 230V

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

Features Unit IP-V1100
Air flow rate (free blow) m³/h 26 (30)
Flow rate with exit filter m³/h 15 (18)
Power supply V/Hz 230 / 50-60
Dimensions HxLxP mm 114x114x73
Power consumption W 13 (12)
Current consumption A 0.10 (0.08)
Overcurrent consumption – impedance
Electric connection – 3-poles spring terminals
Duty cycle – 100%
Operating temperature °C – 10 / +70 (+14 / +158)
Protection degree/class – IP54/Class I
Noise level dB(A) 30 (35)
Flow direction – reversible: default factory setting outside-in
Bearing – ball
Filter mat (Eurovent) – G2
Service life (at 40°C) hr 50 000
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 0.41 (0.46)
Package dimensions mm 125x125x80
Montaggio – fast clip-on
Cut-out dimensions mm 92×92
Conformity/Approvals – CE

Standards & certifications

IP54Dust-protected · splashing
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG
