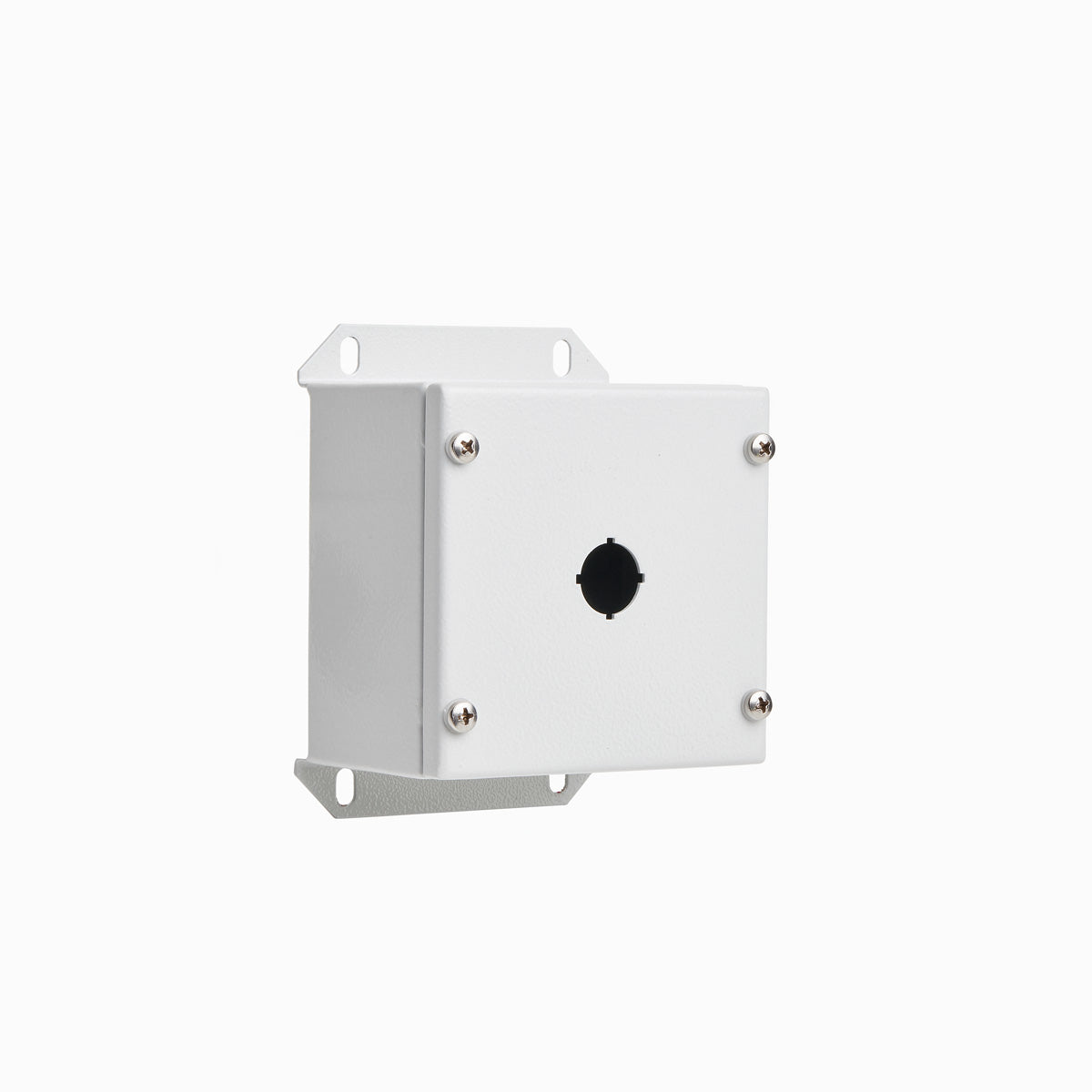

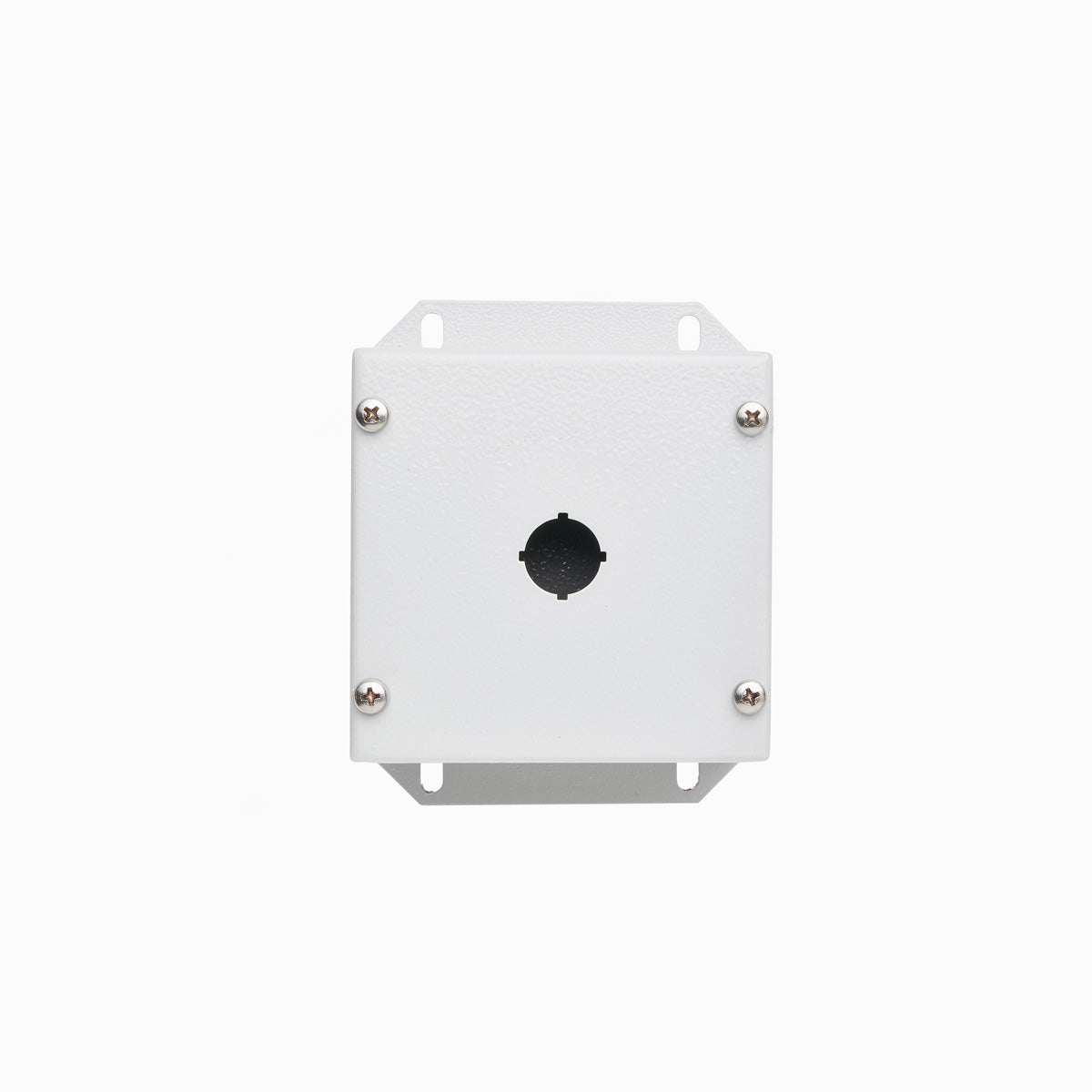

Pushbutton Enclosure 1 Hole, Grey

Pushbutton Enclosure 1 Hole, Grey

IP Enclosures pushbutton enclosures are suitable for extreme duty heavy industrial applications. They incorporate 22mm diameter holes and are available in 1 hole, 2 hole, 3 hole, 4 hole and 6 hole configurations with a flat roof or a sloping roof. We can also provide them with no hole for custom applications if required.

Features & Specifications

Protection: Complies with IP66

Standard: IEC/EN/AS60529, RoHS

Material:

– Body: Galvanised steel sheet
– Lid/Door: Galvanised steel sheet
– Seal: Polyurethane

Body:

The robust monoblock body is fabricated using galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Integral mounting feet to suit M6 fasteners are provided.

Lid/Door:

The robust door is fabricated using galvanised steel sheetand incorporates a polyurethane seal and M5 fasteners.

Seal:

A high quality machine-applied full perimeter Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life.

Surface Protection:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL7035.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
