Air Conditioner Indoor Wall Mounted 230V 1450W with Alarm, Door Interlock, RS485 Interface & Condensate Drain — IP Enclosures
Air Conditioner Indoor Wall Mounted 230V 1450W with Alarm, Door Interlock, RS485 Interface & Condensate Drain — IP Enclosures

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Air Conditioner Indoor Wall Mounted 230V 1450W with Alarm, Door Interlock, RS485 Interface & Condensate Drain

SKU
£2,047.89 ex. VAT £2,457.47 inc. VAT
In stock
2 in stockUpdated 2 minutes agoShipping & pickup →
  • Type Wall Mount
  • Material Steel
  • IP Rating IP54
  • Voltage 230V
  • kW Rating 1450W

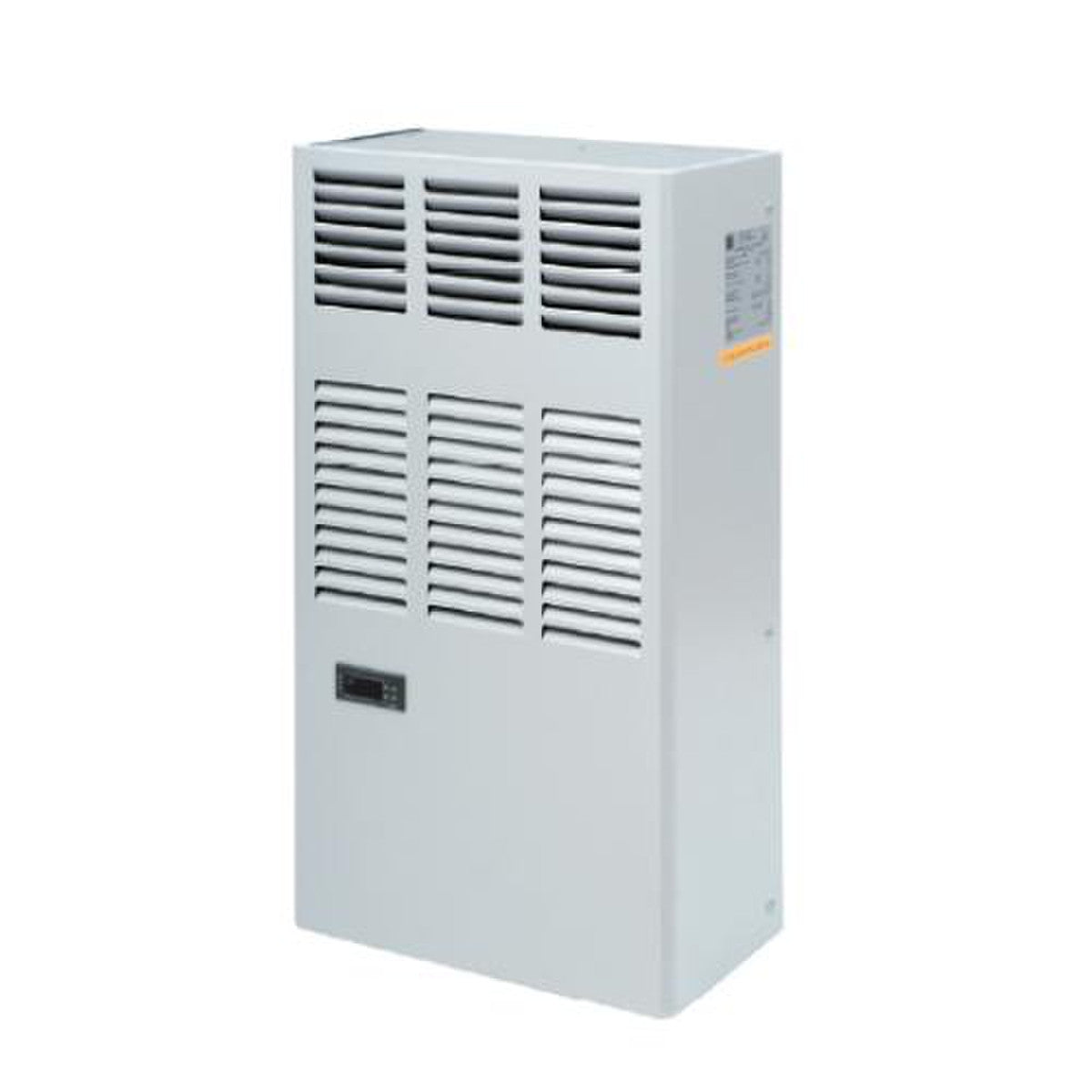

Air Conditioner Indoor Wall Mounted 230V 1450W with Alarm, Door Interlock, RS485 Interface & Condensate Drain

IP Enclosures Italian vertical-mount compact air conditioners designed for the cooling needs of indoor electrical cabinets. They are optimised for door or side-panel mounting and have been designed for high efficiency and low maintenance.

Features Unit IP-ACIWM145.001
Power supply V/Hz 230V/1ph/50-60
Dimensions HxWxD mm 800x400x240
Cooling capacity EN814 A35A35 W 1450/1500
Cooling capacity EN814 A35A50 W 1150/1200
Air flow rate (free blow)
inside m3/h 600/625
outside m3/h 880/950
Max current A 3.7/4.2
Delayed fuse A 6
Absorbed electric power EN814 A35A35 W 650/700
Absorbed electric power EN814 A35A50 W 770/850
Refrigerant (type/charge) kg R134a/0.55
Maximum Pressure bar 25
Operating temperature (ambient) °C +20/+55
Operating temperature (enclosure) °C +20/+45
Temperature controller (factory set at 35°C) – Digital thermostat
Compressor type – Rotative compressor
Noise level dB(A) 65
Electrical connection – Three-pole connector
Protection degree EN60529/1 enclosure inside – IP54
Protection degree EN60529/1 ambient inside – IP34
Weight (with packaging) Kg 37(38)
Colour – RAL 7035
Conformity/Certifications – CE

Standards & certifications

IP54Dust-protected · splashing
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG CAD File STEP

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
