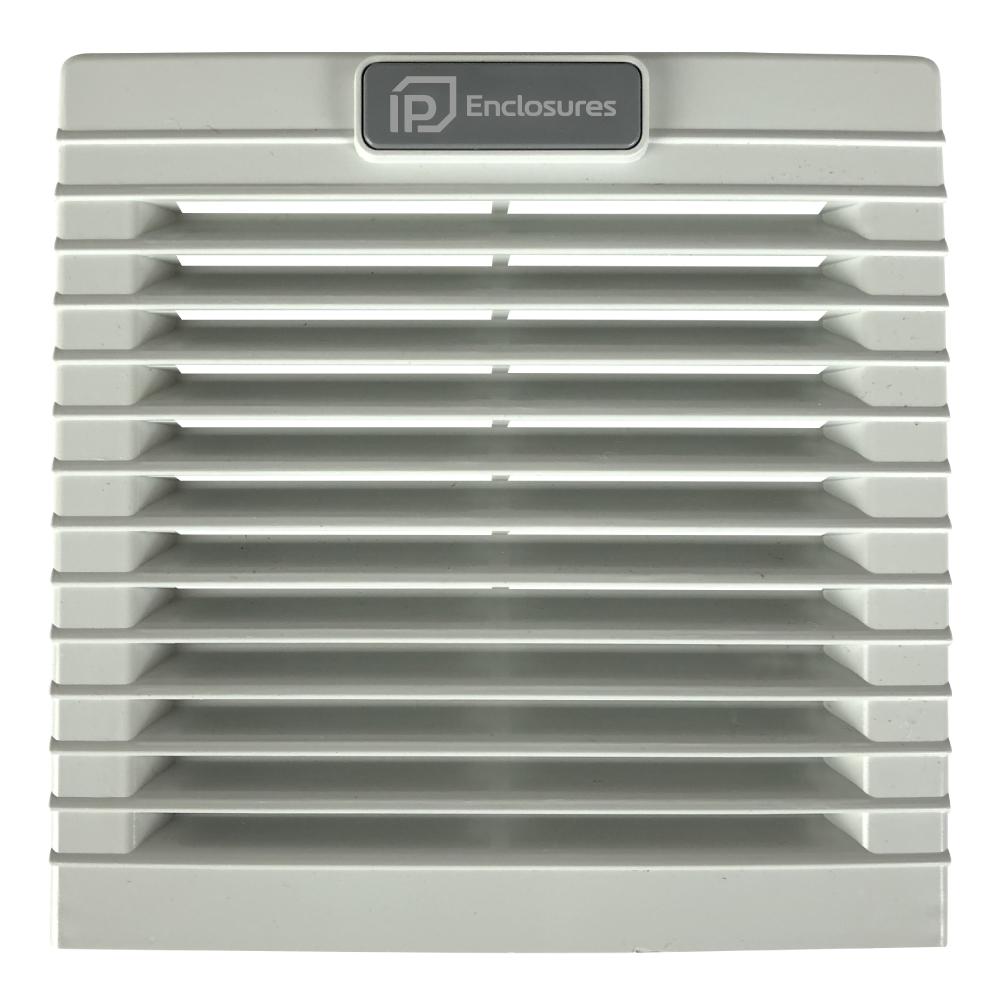

Filter Vent 114 x 114 — IP Enclosures

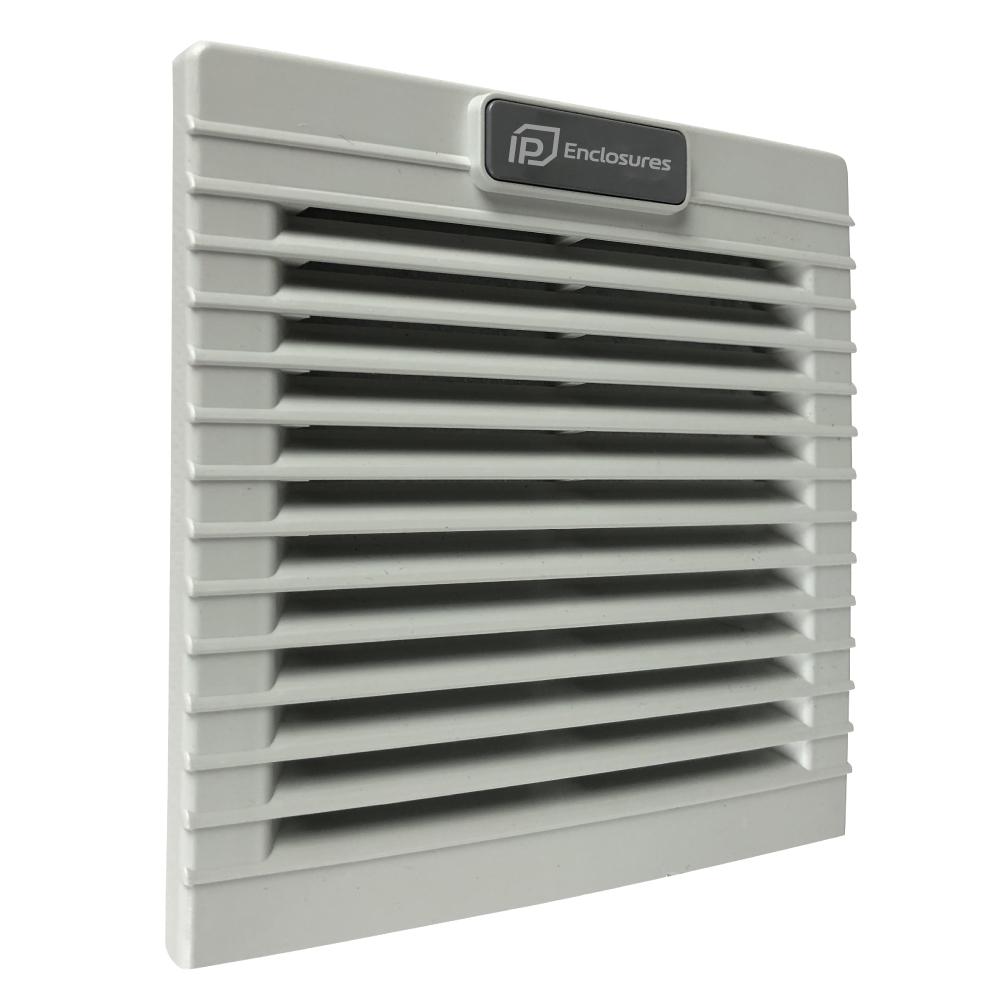

IP-V1000 - image 2

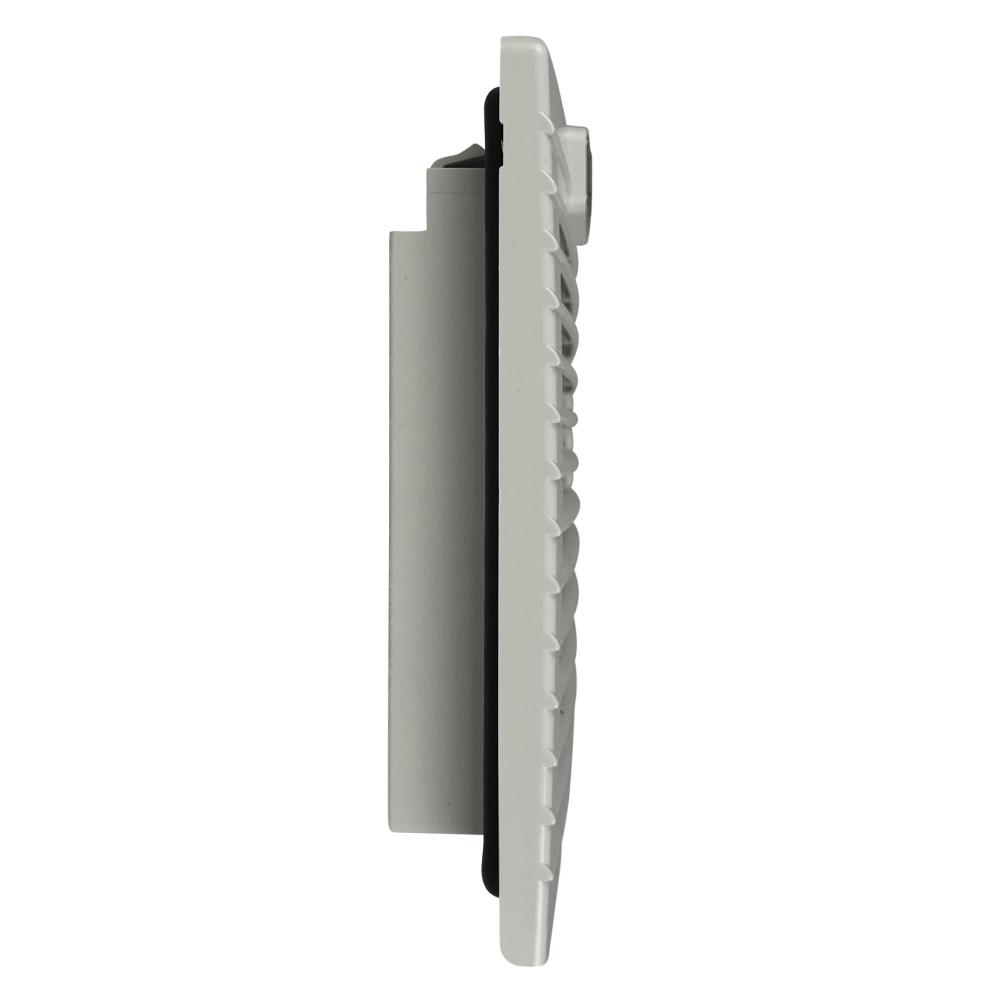

IP-V1000 - image 3
Filter Vent 114 x 114 — IP Enclosures
IP-V1000 - image 2
IP-V1000 - image 3

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Filter Vent 114 x 114

SKU
£10.18 ex. VAT £12.22 inc. VAT
In stock
103 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Height (mm) 114
  • Width (mm) 114
  • Colour Grey
  • IP Rating IP54

Filter Vent 114 x 114

High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.

G3 Filter Mat included.

Features Unit IP-V1000
Air flow rate (free blow) m³/h –
Flow rate with exit filter m³/h –
Power supply V/Hz –
Dimensions HxLxP mm 114x114x27
Power consumption W –
Current consumption A –
Overcurrent consumption – –
Electric connection – –
Duty cycle – –
Operating temperature °C – 10 / +70 (+14 / +158)
Protection degree/class – IP54
Noise level dB(A) –
Flow direction – –
Bearing – –
Filter mat (Eurovent) – G2
Service life (at 40°C) hr –
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 0.09 (0.11)
Package dimensions mm 125x125x35
Montaggio – fast clip-on
Cut-Out dimensions mm 92×92
Conformity/Approvals – CE

Standards & certifications

IP54Dust-protected · splashing
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
