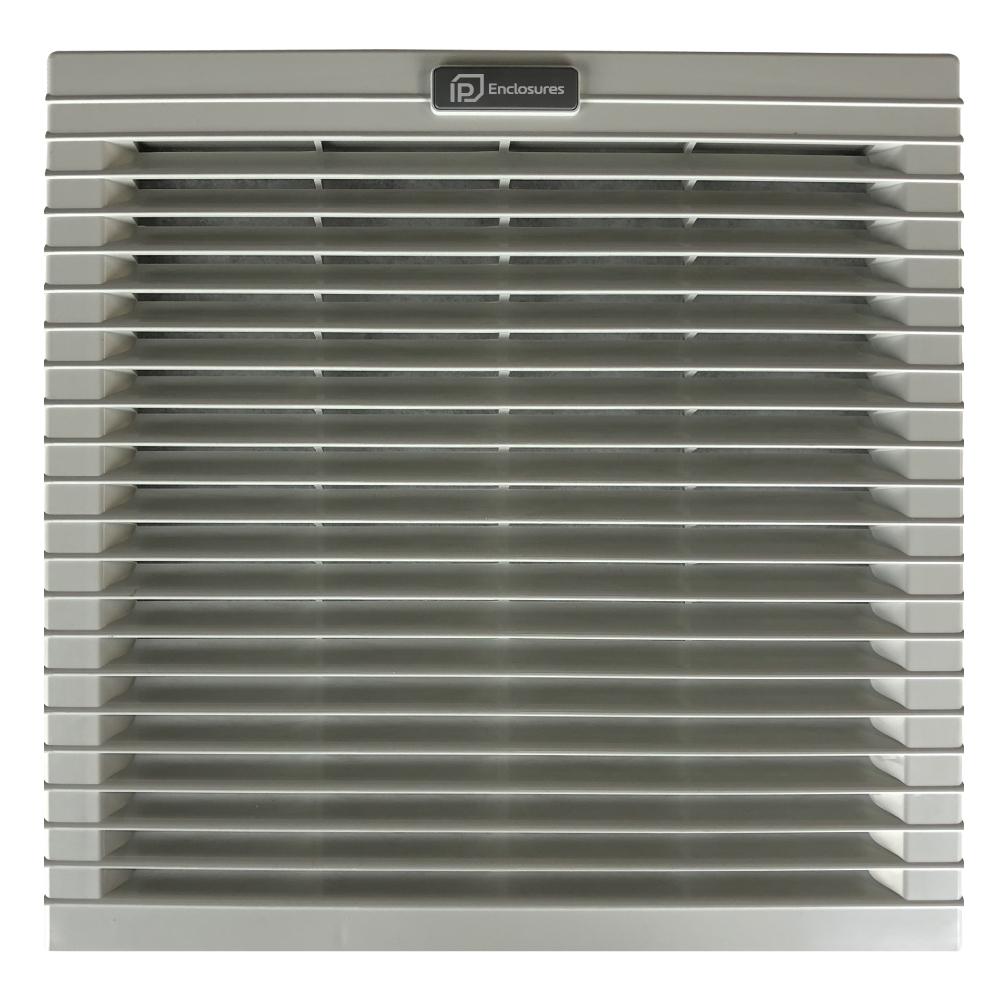

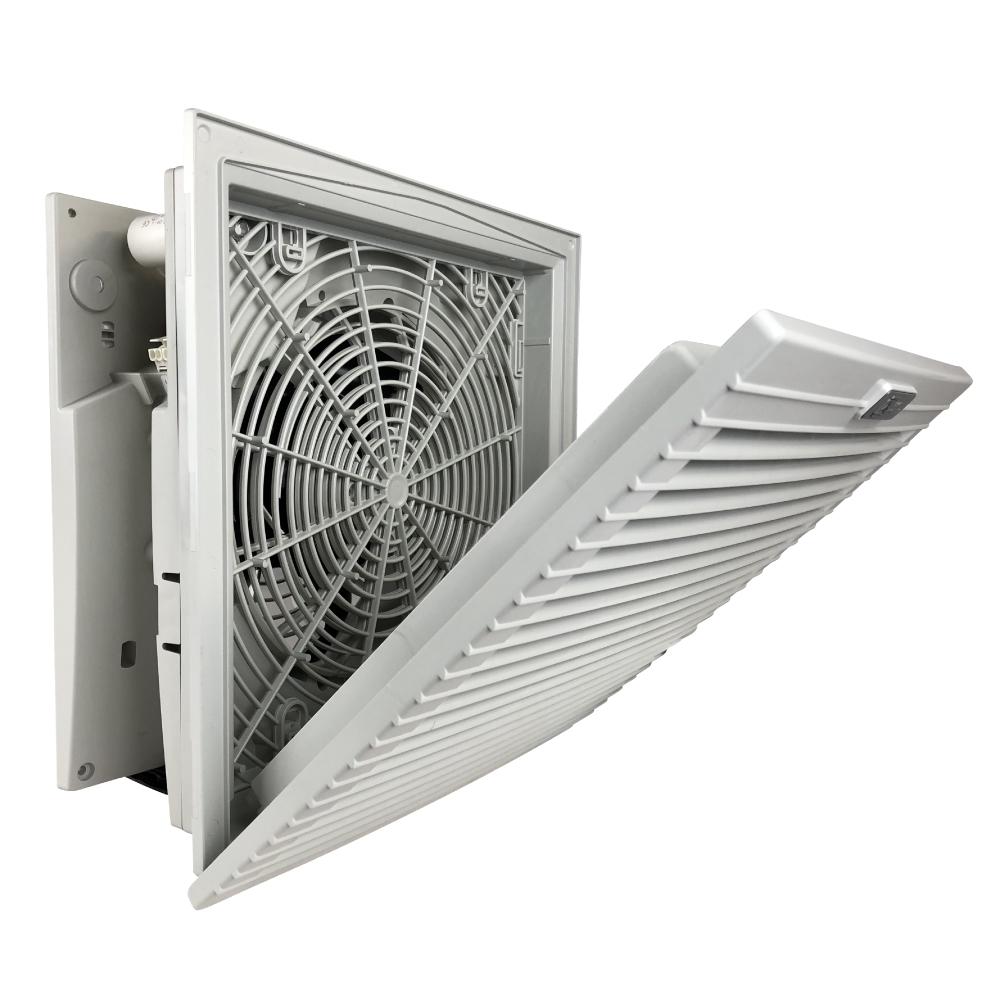

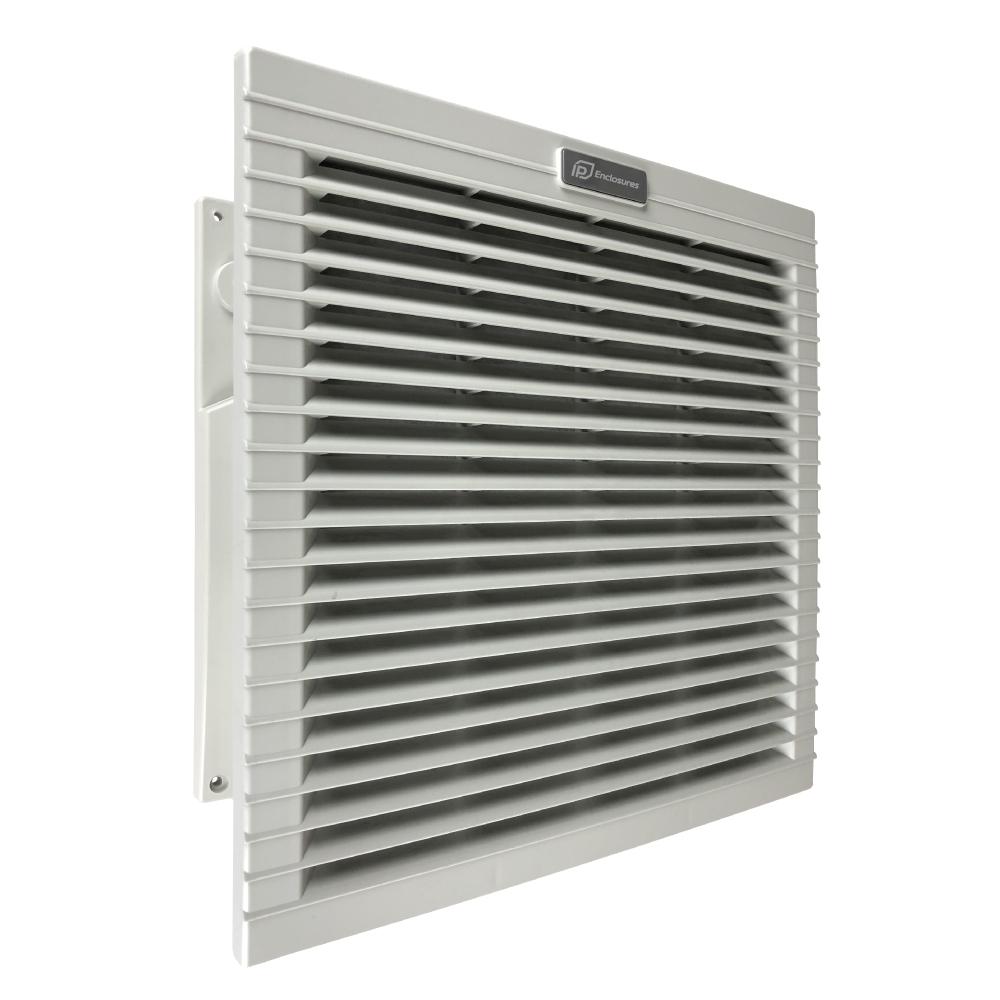

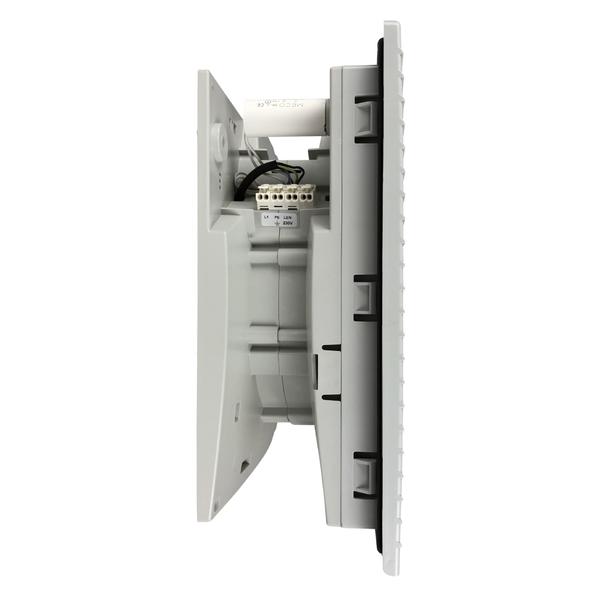

Filter Fan 325 x 325 550m3/hr 230V

SKU
£166.89 ex. VAT £200.27 inc. VAT
In stock
6 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Height (mm) 325
  • Width (mm) 325
  • Colour Grey
  • IP Rating IP54
  • Voltage 230V
  • Size 550m3/h

Filter Fan 325 x 325 550m3/hr 230V

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

Features Unit IP-V5400
Air flow rate (free blow) m³/h 550 (620)
Flow rate with exit filter m³/h 405 (450)
Power supply V/Hz 230 / 50-60
Dimensions HxWxD mm 325x325x140
Power consumption W 70 (90)
Current consumption A 0.40 (0.38)
Overcurrent consumption – thermal
Electric connection – 3-poles spring terminals
Duty cycle – 100%
Operating temperature °C (°F) – 10 / +70 (+14 / +158)
Protection degree/class – IP54/Class I
Noise level dB(A) 65 (68)
Flow direction – reversible: default factory setting outside-in
Bearing – ball
Filter mat (Eurovent) – G3
Service life (at 40°C) hr 50 000
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 3.00 (3.25)
Package dimensions mm 340x340x180
Mounting – fast clip-on
Cut-Out dimensions mm 291×291
Conformity/Approvals – CE

Standards & certifications

IP54Dust-protected · splashing
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG
