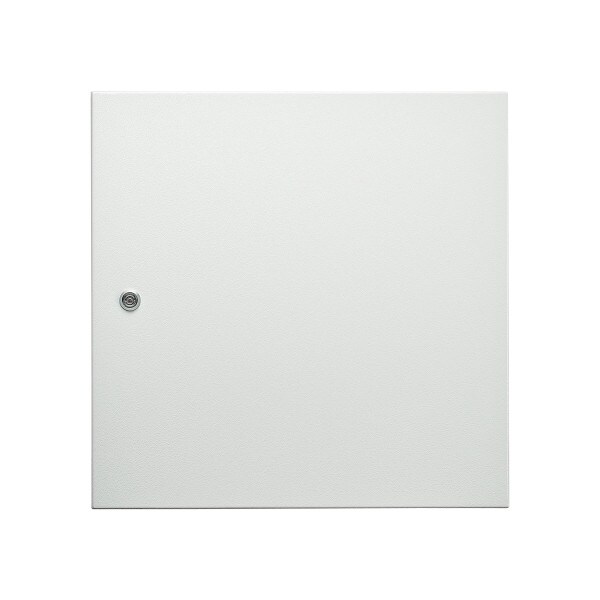

Aluminium Electrical Enclosure 400H x 400W x 300D IP66 Grey

Aluminium Electrical Enclosure 400H x 400W x 300D IP66 Grey

At 400 × 400 × 300mm in grey, this A1 marine-grade aluminium wall-mount enclosure suits switchboards, motor-control and power-distribution assemblies in coastal, marine and other highly corrosive environments where steel would corrode. 2.5mm marine-grade aluminium construction rated to IP66 IK10.

Features and Specifications

Protection: IP66 IK10, NEMA 4 (Independent accredited test laboratory).

Standards (& Conformities): IEC/EN 62208, IEC/EN/AS60529, UL, RoHS, CE, UKCA.

Construction

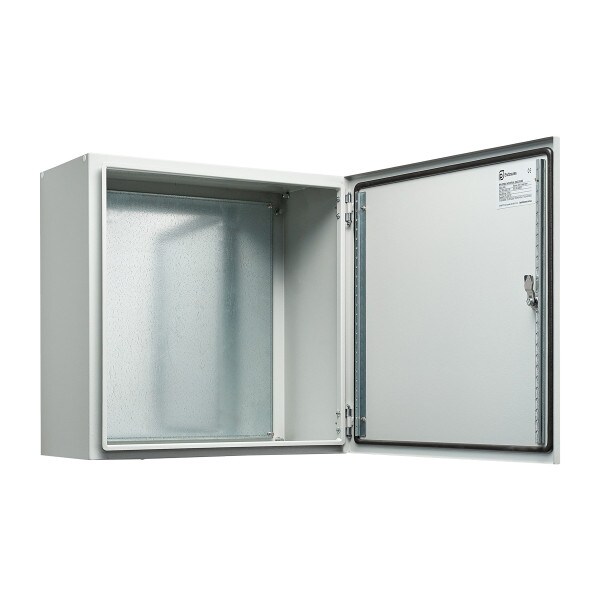

A robust monoblock 2.5mm marine-grade aluminium body with flat-face sealing surfaces, integral device-plate mounts, M6 earth studs and welded mounting feet. Concealed removable hinges with captive pins allow a 110° door opening. A machine-applied full-perimeter UL listed polyurethane seal foamed in place (FIP) provides continuous sealing rated to −40°C to +80°C (160°C short-term).

Surface Treatment

UL approved AkzoNobel epoxy polyester powder coat, textured, 80–120 micron average thickness. Standard colour RAL7035 — a full range of other colours available on request.

What's Included: Enclosure body, door with FIP polyurethane seal, 1× galvanised steel device mounting plate (pre-fitted), M6 earth studs, welded mounting feet.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.

TROAPC's standard warranty covers all products. The standard 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
