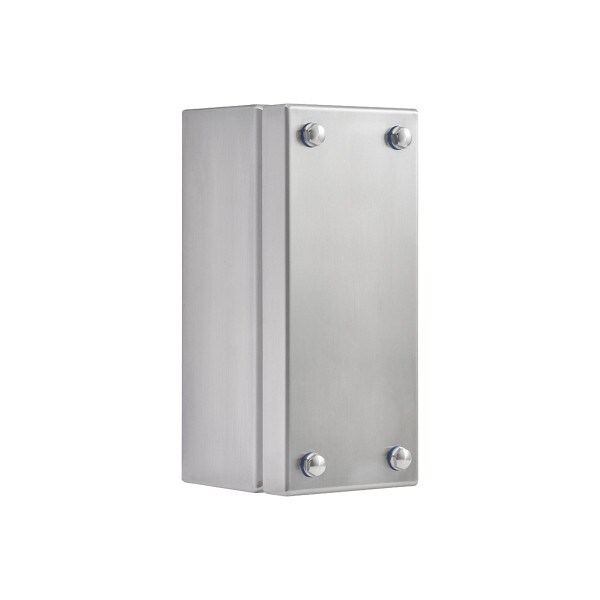

Terminal Box 304 Stainless Steel 140H x 90W x 90D

The IP Enclosures SSTB Range of grade 304 stainless steel terminal boxes are designed for use even in the most demanding industrial environments.

Protection: Complies with IP66, IP67, NEMA 4x

Standard: UL508A Certified


Features and Specifications

Material:

– Body: 1.0mm. Grade 304 stainless steel
– Door: 1.0mm. Grade 304 stainless steel
– Seal: Silicone

Body:

The robust body is fabricated using 1.0mm Grade 304 Stainless Steel and incorporates a high quality
Silicone seal.

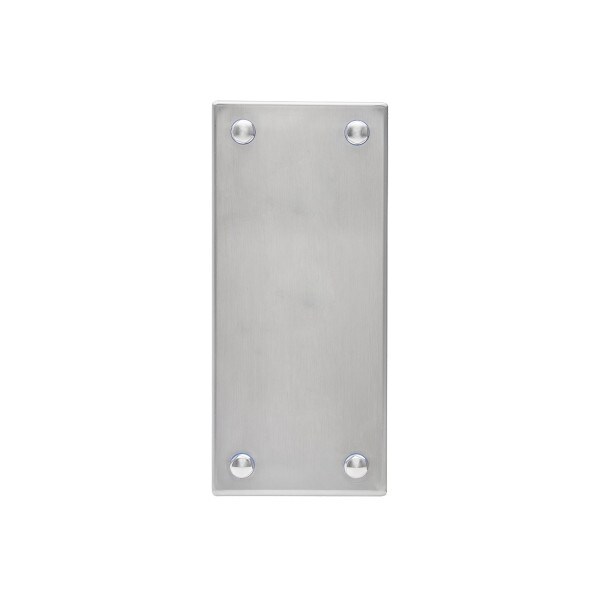

Lid/Door:

The robust pre-drilled lid/door is fabricated using 1.00mm. Grade 304 Stainless Steel and is fastened using screws.

Seal:

A high quality Silicone seal.

Internal Plate:

The inner plate is fabricated using 2.5mm sheet steel, supplied pre-fitted into the terminal box as standard.
