Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Filter Fan 250 x 250 255m3/hr 230V

SKU
£103.11 ex. VAT £123.73 inc. VAT
In stock
2 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Height (mm) 250
  • Width (mm) 250
  • Colour Grey
  • IP Rating IP54
  • Voltage 230V
  • Size 255m3/h

Filter Fan 250 x 250 255m3/hr 230V

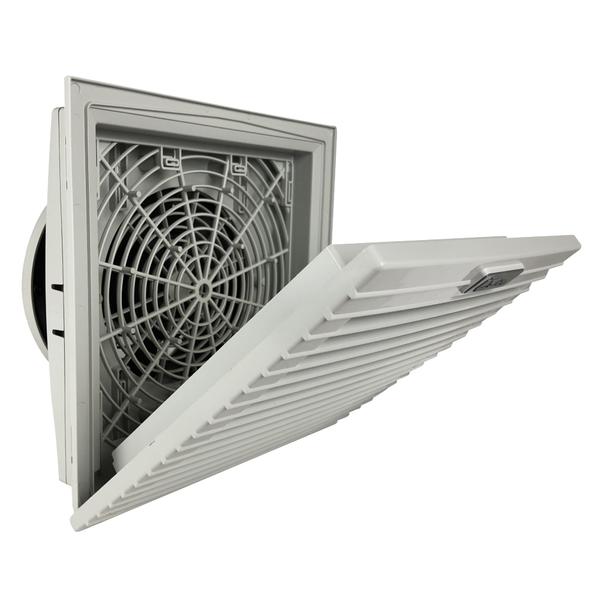

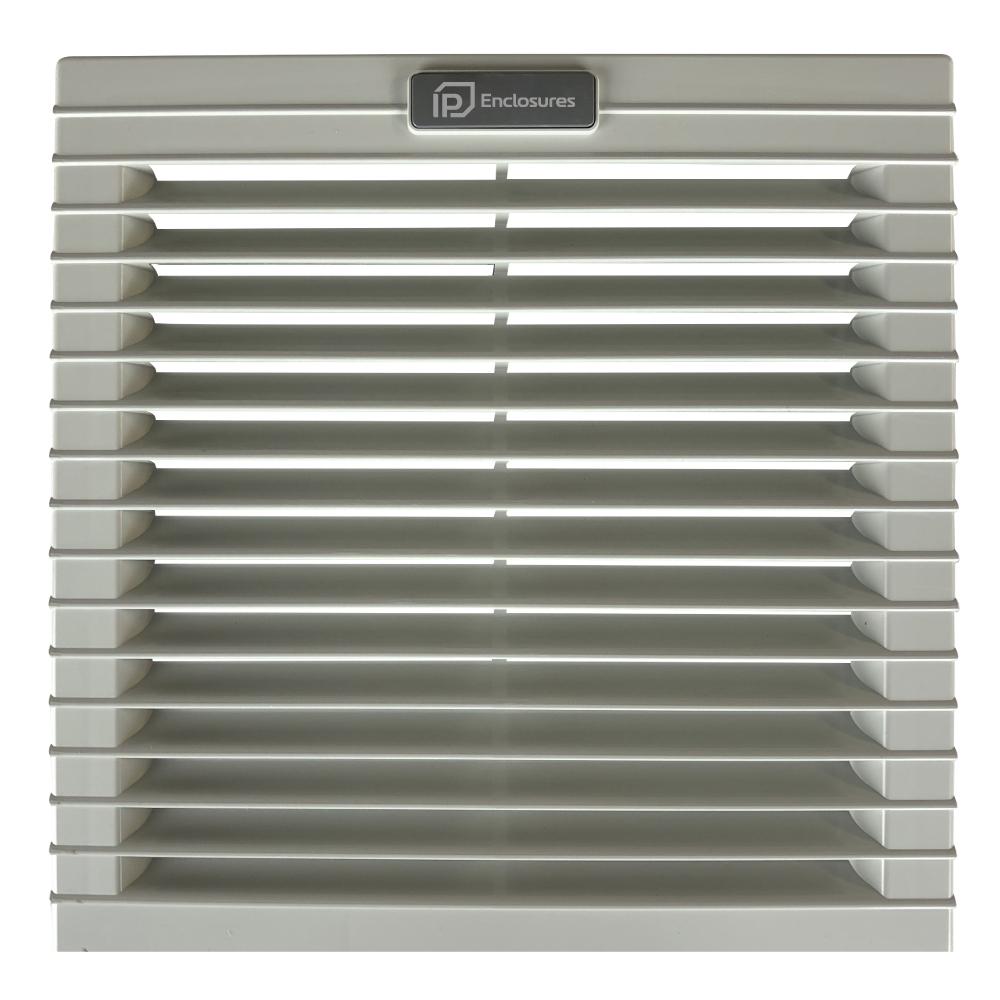

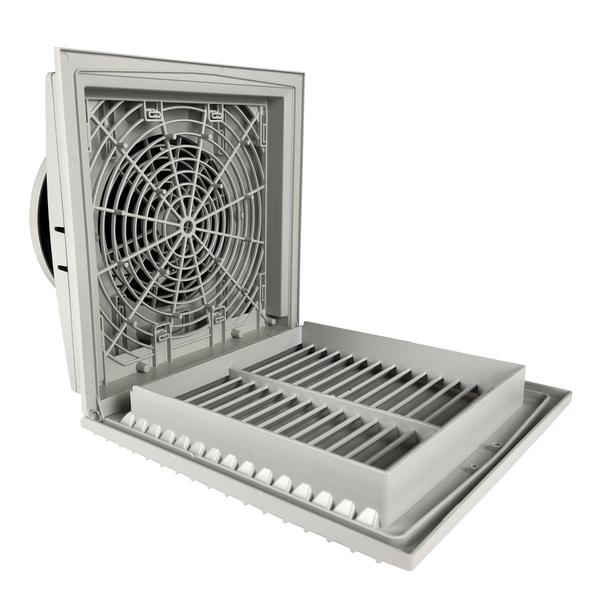

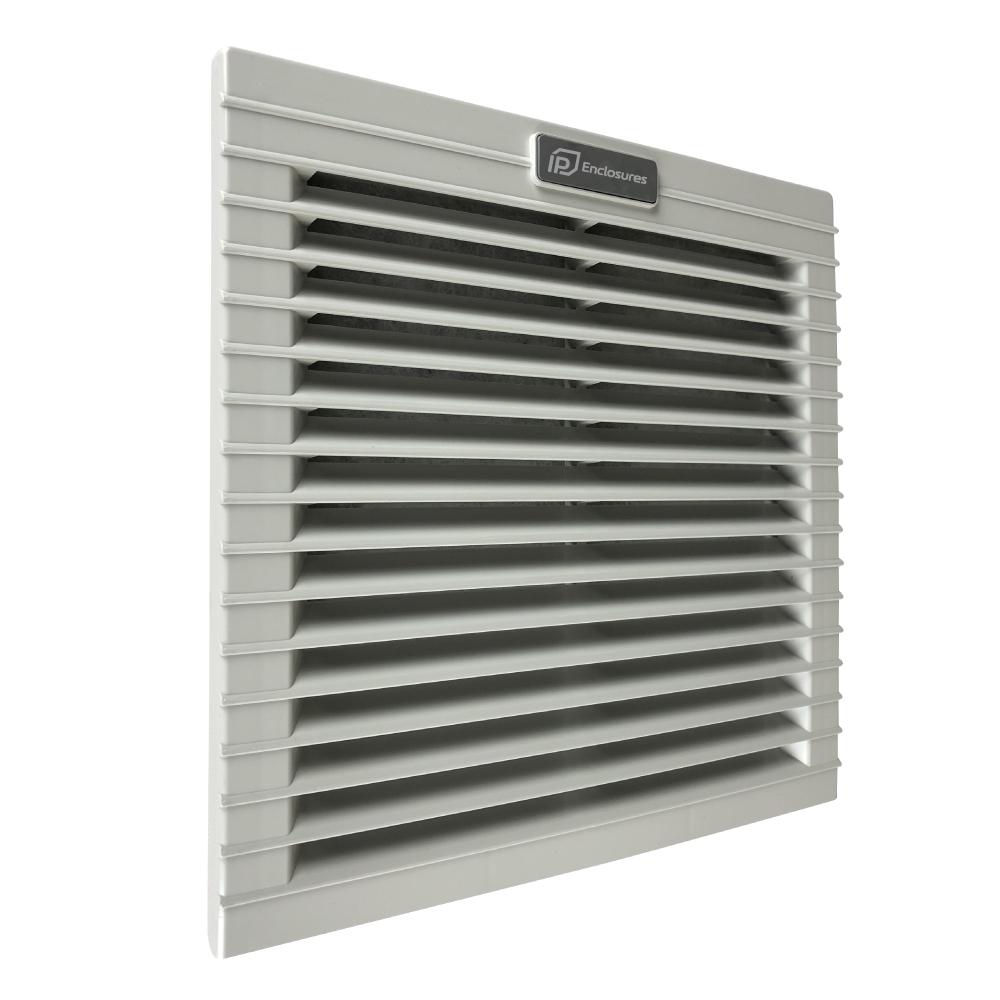

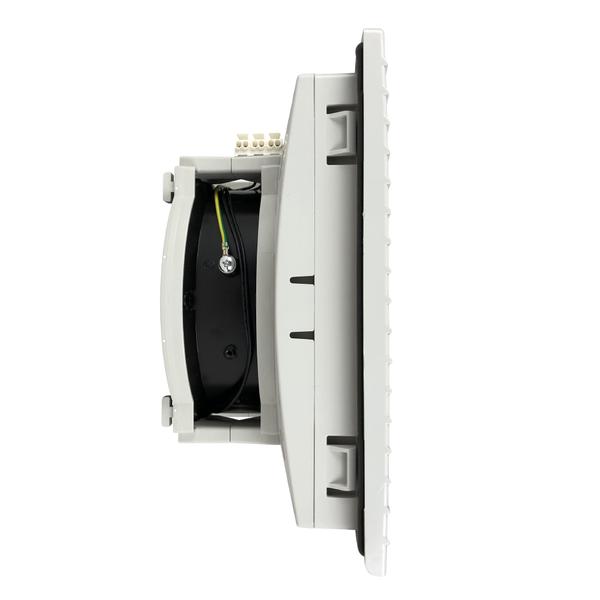

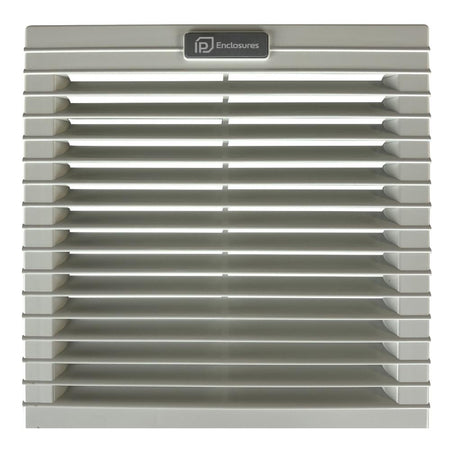

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

Features Unit IP-V4300
Air flow rate (free blow) m³/h 255 (290)
Flow rate with exit filter m³/h 202 (235)
Power supply V/Hz 230 / 50-60
Dimensions HxLxP mm 250x250x128
Power consumption W 40 (38)
Current consumption A 0.17 (0.16)
Overcurrent consumption – thermal
Electric connection – 3-poles spring terminals
Duty cycle – 100%
Operating temperature °C – 10 / +70 (+14 / +158)
Protection degree/class – IP54/Class I
Noise level dB(A) 53 (58)
Flow direction – reversible: default factory setting outside-in
Bearing – ball
Filter mat (Eurovent) – G3
Service life (at 40°C) hr 50 000
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 1.72 (1.92)
Package dimensions mm 270x270x165
Montaggio – fast clip-on
Cut-Out dimensions mm 224×224
Conformity/Approvals – CE

Standards & certifications

IP54Dust-protected · splashing
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
