Filter Fan 114 x 114 25m3/hr 230V

SKU
In stock
Stock on hand
West Midlands WarehouseDroitwich, WR9 0NR
19 in stock
Updated just now
Shipping & pickup →
£45.75 ex. VAT £54.90 inc. VAT
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Height (mm) 114
  • Width (mm) 114
  • IP & IK Rating IP54
  • Colour Grey (RAL7035)

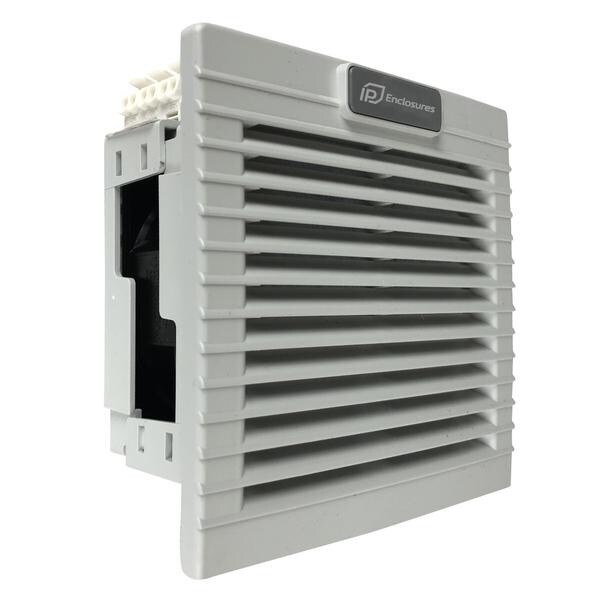

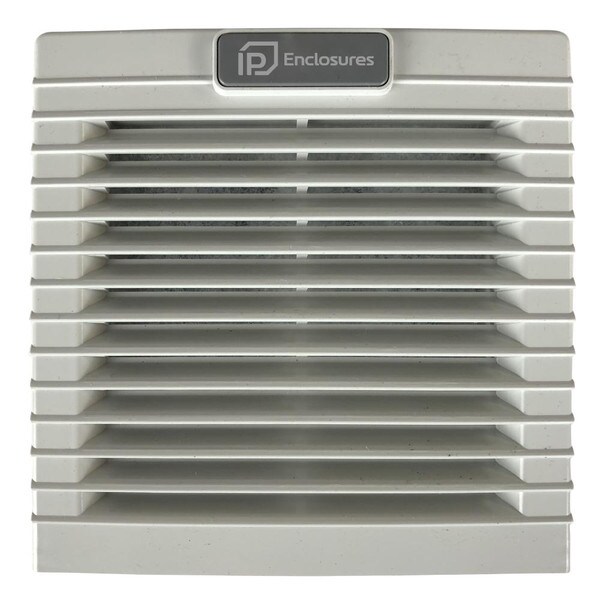

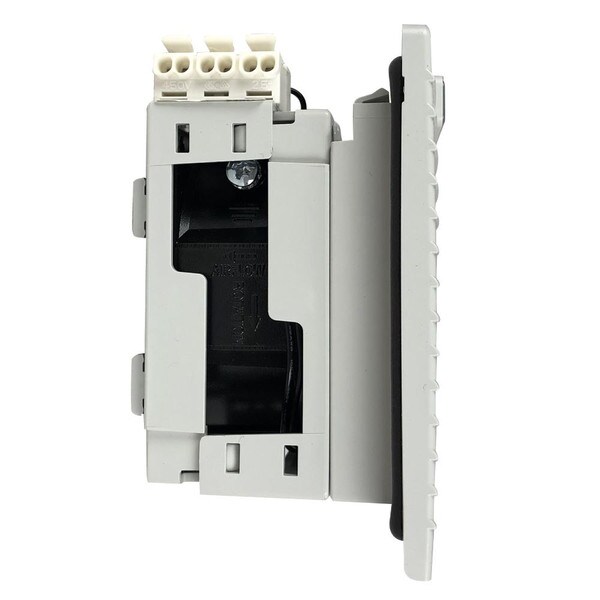

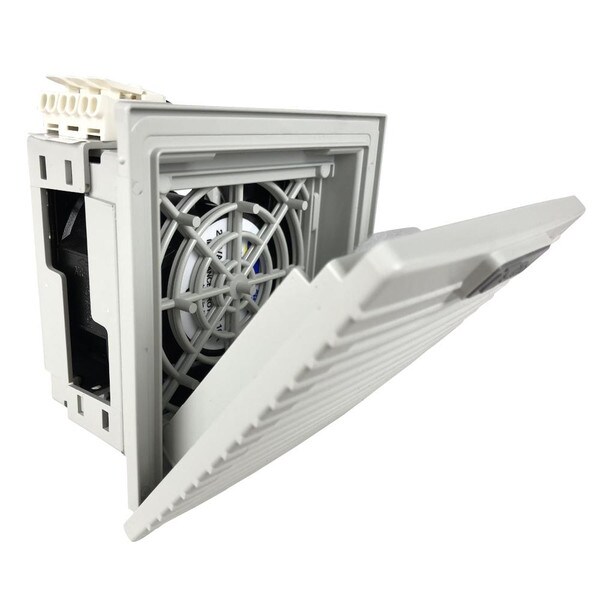

Filter Fan 114 x 114 25m3/hr 230V

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

Features Unit IP-V1100
Air flow rate (free blow) m³/h 26 (30)
Flow rate with exit filter m³/h 15 (18)
Power supply V/Hz 230 / 50-60
Dimensions HxLxP mm 114x114x73
Power consumption W 13 (12)
Current consumption A 0.10 (0.08)
Overcurrent consumption – impedance
Electric connection – 3-poles spring terminals
Duty cycle – 100%
Operating temperature °C – 10 / +70 (+14 / +158)
Protection degree/class – IP54/Class I
Noise level dB(A) 30 (35)
Flow direction – reversible: default factory setting outside-in
Bearing – ball
Filter mat (Eurovent) – G2
Service life (at 40°C) hr 50 000
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 0.41 (0.46)
Package dimensions mm 125x125x80
Montaggio – fast clip-on
Cut-out dimensions mm 92×92
Conformity/Approvals – CE
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG

TROAPC's standard warranty covers all products. The standard 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
