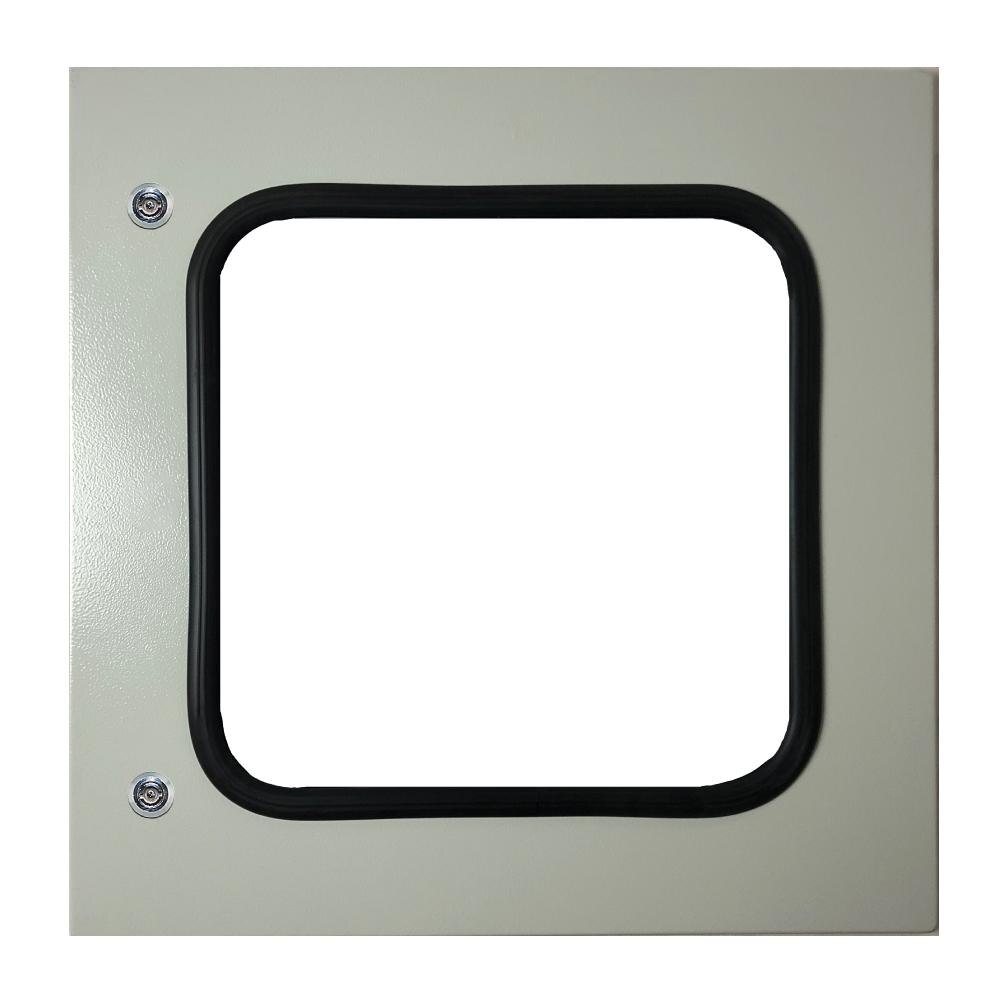

Transparent Door 600H x 600W IP66 Grey

Transparent Door 600H/12RU x 600W IP66 Grey

IP Enclosures offer steel transparent glazed doors engineered for compatibility with its range of electrical enclosures. Supplied as a standard accessory, transparent doors allow quick replacement by removing the existing door. The doors incorporate a transparent viewing window panel manufactured from polycarbonate material and are exclusively sold and available in the UK region to ensure compliance with applicable UK electronics and electrical standards.

Features and Specifications

Protection: IP66

Standard: IEC/EN 60529, RoHS

Material:

Enclosure Door: 1.5mm galvanised steel sheet
Viewing Window Panel: 4.0mm Polycarbonate
Enclosure Seal: Polyurethane

Door:

The surface mounted door is made from 1.5mm galvanised steel sheet. It incorporates concealed, removable hinges with captive pins and is designed for a 110° opening.

Viewing Window Panel:

The viewing window panel is made from 4.0mm thick Polycarbonate.

Seal:

A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Lock:

5mm Double Bit Quarter Turn Lock. A full range of locking solutions are available upon request.

Surface Treatment:

UL approved AkzoNobel epoxy polyester powder coated with a textured finish. 80-120 micron average thickness. Colour RAL7035 Light Grey (standard electrical enclosure).

Viewing Panel Size:

404mmH x 404mmW
