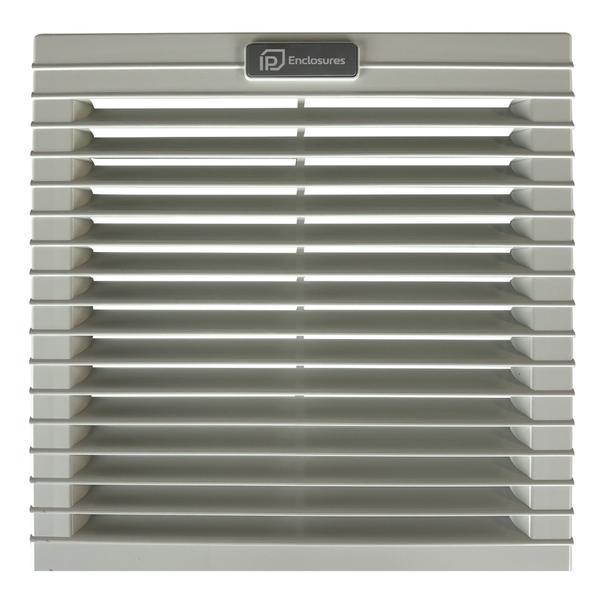

Filter Fan 250 x 250 255m3/hr 24VDC — IP Enclosures

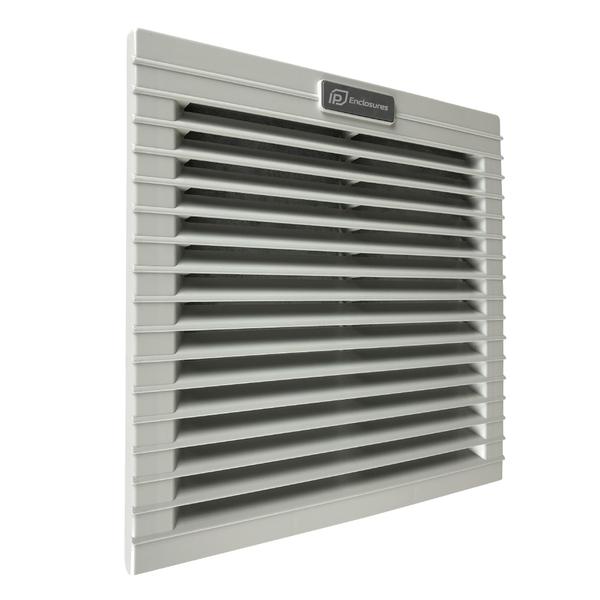

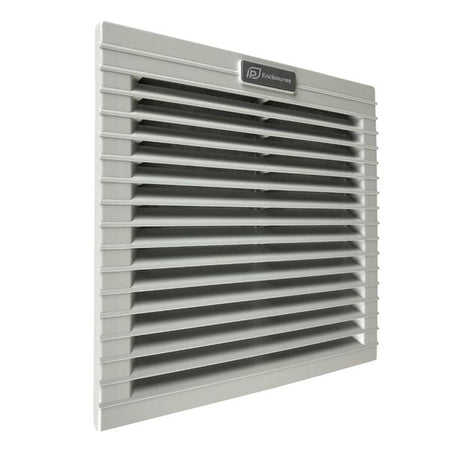

IP-V4324 - image 2

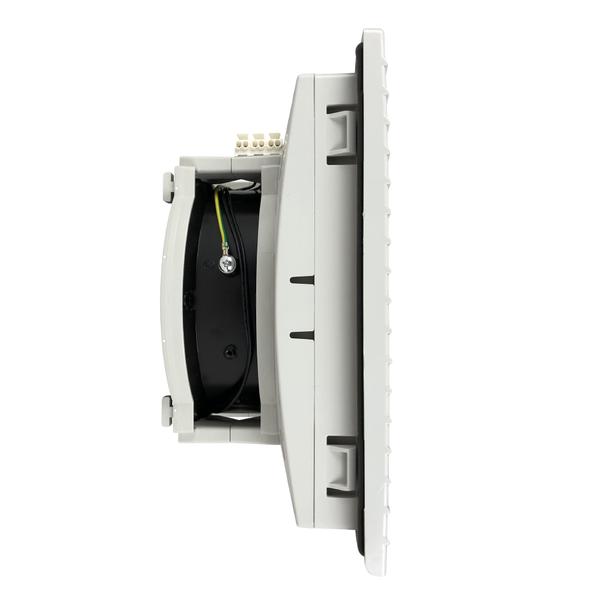

IP-V4324 - image 3

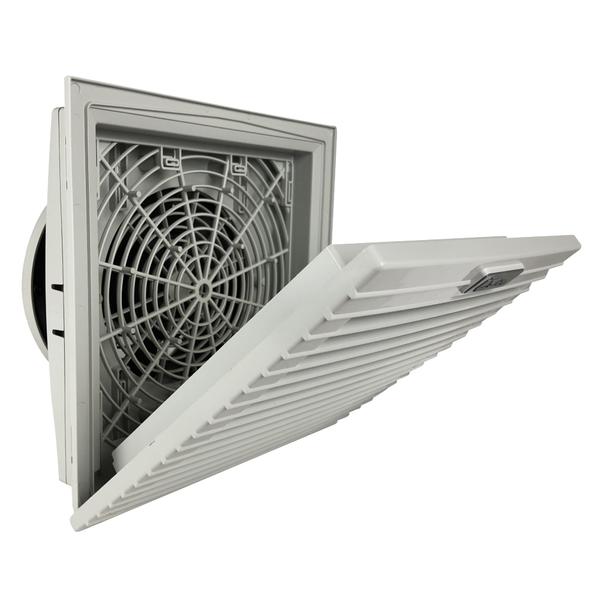

IP-V4324 - image 4

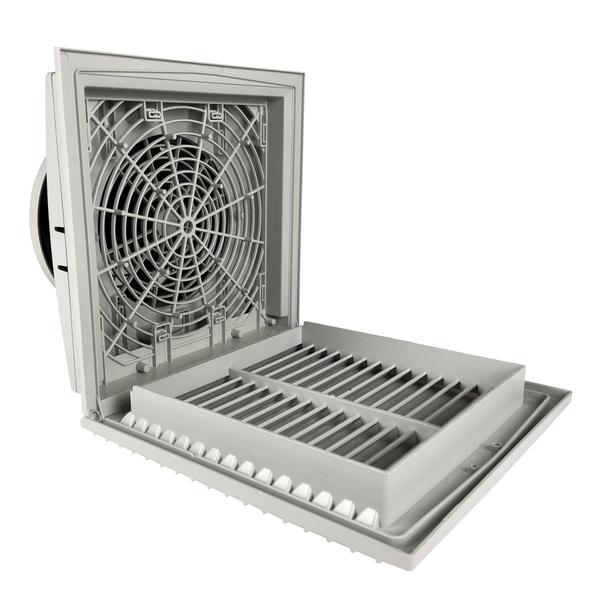

IP-V4324 - image 5
Filter Fan 250 x 250 255m3/hr 24VDC — IP Enclosures
IP-V4324 - image 2
IP-V4324 - image 3
IP-V4324 - image 4
IP-V4324 - image 5

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Filter Fan 250 x 250 255m3/hr 24VDC

SKU
£152.72 ex. VAT £183.26 inc. VAT
In stock
5 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Height (mm) 250
  • Width (mm) 250
  • Colour Grey
  • IP Rating IP54
  • Voltage 24V
  • Size 255m3/h

Filter Fan 250 x 250 255m3/hr 24VDC

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

Features Unit IP-V4324
Air flow rate (free blow) m³/h 255
Flow rate with exit filter m³/h 202
Power supply V/Hz DC24
Dimensions HxWxD mm 250x250x128
Power consumption W 33
Current consumption A 0.68
Overcurrent consumption – thermal
Electric connection – 2-poles spring terminals
Duty cycle – 100%
Operating temperature °C(°F) – 10 / +70 (+14 / +158)
Protection degree/class – IP54/Class I
Noise level dB(A) 61
Flow direction – reversible: default factory setting outside-in
Bearing – ball
Filter mat (Eurovent) – G3
Service life (at 40°C) hr 50 000
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 1.73
Package dimensions mm 270x270x165
Mounting – fast clip-on
Cut-Out dimensions mm 224×224
Conformity/Approvals – CE

Standards & certifications

IP54Dust-protected · splashing

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
