Home » Enclosures» Cooling & Heating» Filter Fan 250 x 250 125m3/hr 230V

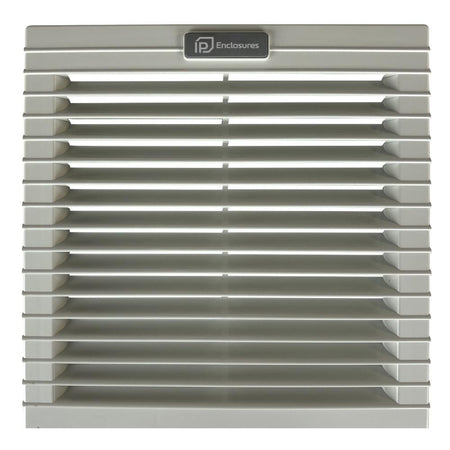

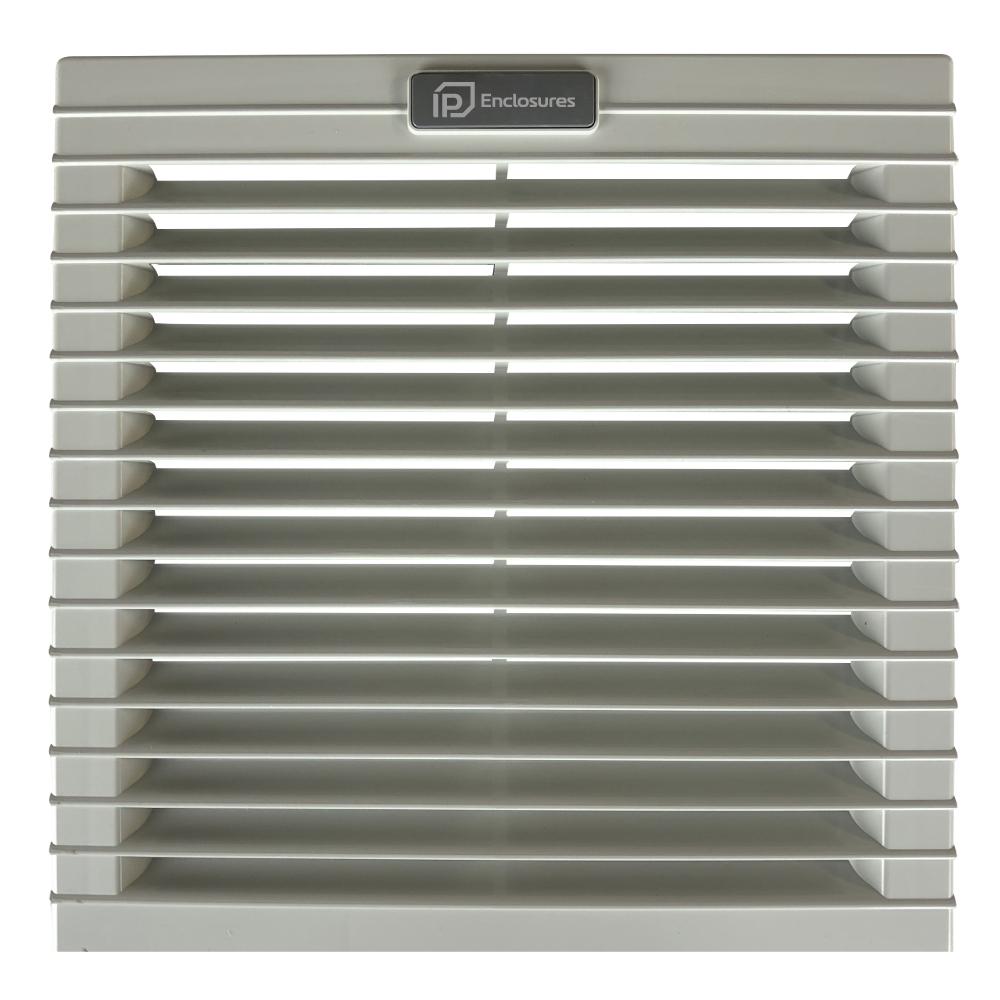

Filter Fan 250 x 250 125m3/hr 230V — IP Enclosures

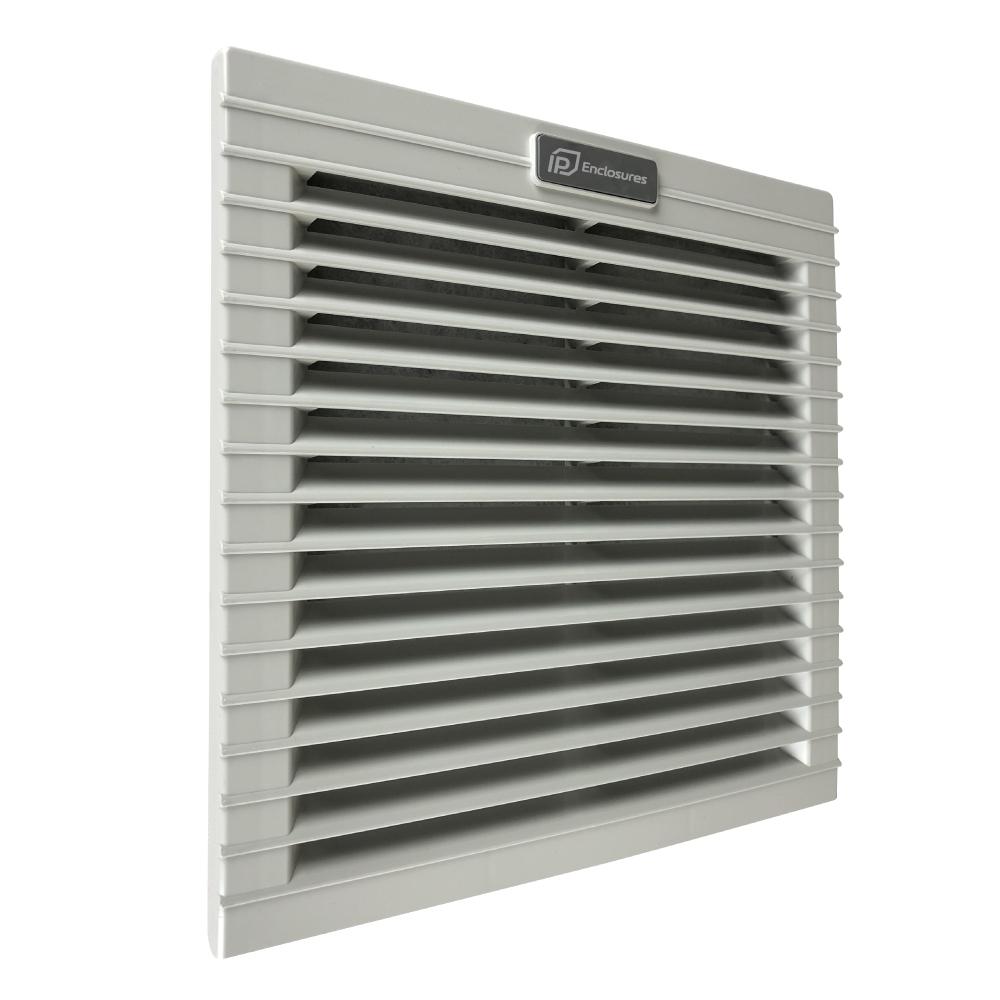

IP-V4200 - image 2

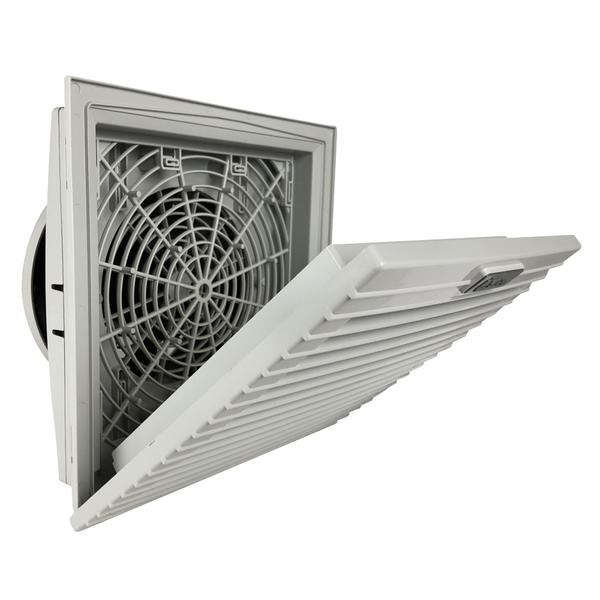

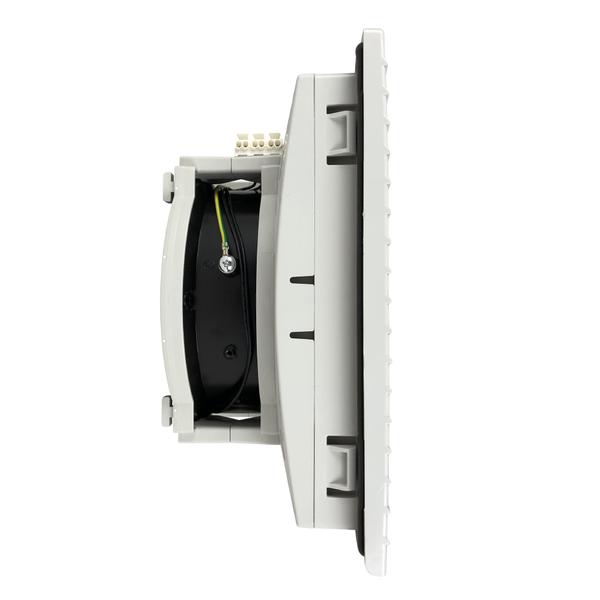

IP-V4200 - image 3

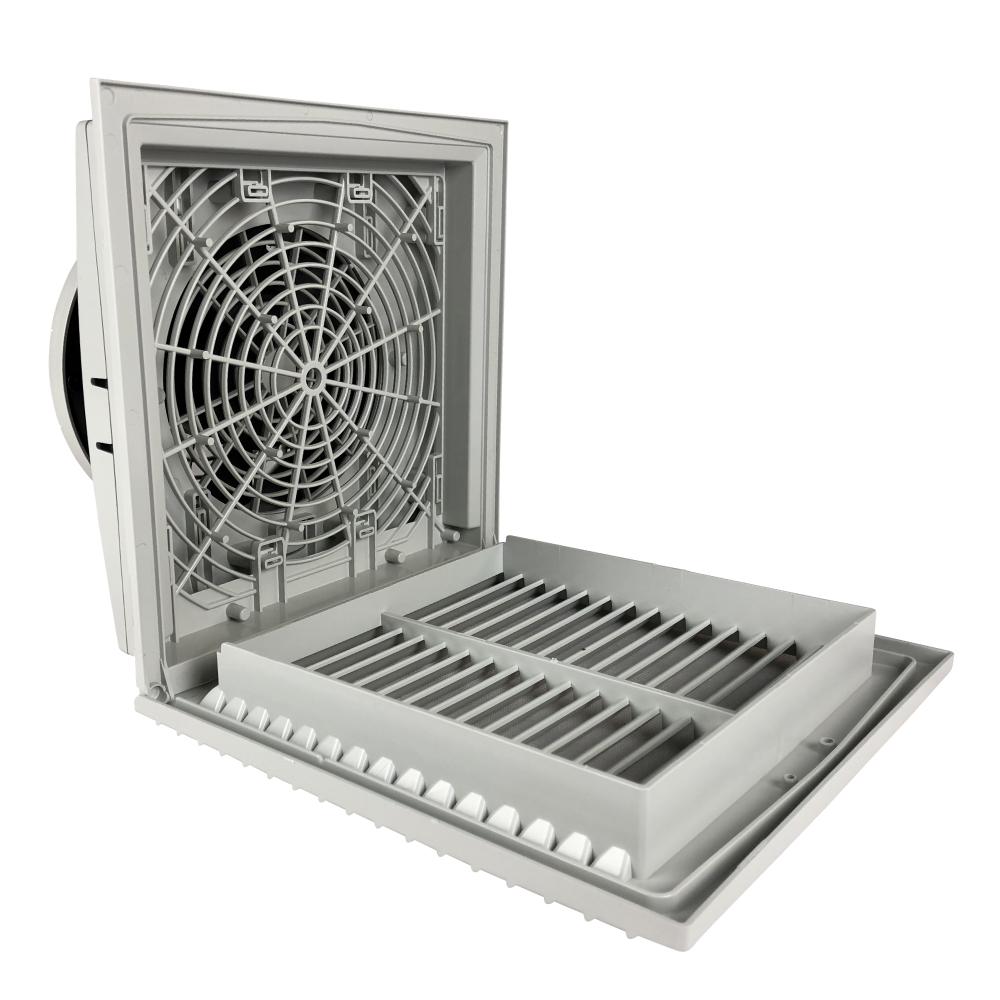

IP-V4200 - image 4
IP-V4200 - image 5
Filter Fan 250 x 250 125m3/hr 230V — IP Enclosures
IP-V4200 - image 2
IP-V4200 - image 3
IP-V4200 - image 4
IP-V4200 - image 5

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Filter Fan 250 x 250 125m3/hr 230V

SKU
In stock
Stock on hand
West Midlands WarehouseDroitwich, WR9 0NR
10 in stock
Updated 1 minute ago
Shipping & pickup →
£67.84 ex. VAT £81.41 inc. VAT
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 250
  • Width (mm) 250
  • Colour / Finish Grey
  • IP Rating IP54

Filter Fan 250 x 250 125m3/hr 230V

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

Features Unit IP-V4200
Air flow rate (free blow) m³/h 125 (135)
Flow rate with exit filter m³/h 102 (112)
Power supply V/Hz 230 / 50-60
Dimensions HxLxP mm 250x250x107
Power consumption W 22 (21)
Current consumption A 0.14 (0.12)
Overcurrent consumption – impedance
Electric connection – 3-poles spring terminals
Duty cycle – 100%
Operating temperature °C – 10 / +70 (+14 / +158)
Protection degree/class – IP54/Class I
Noise level dB(A) 43 (49)
Flow direction – reversible: default factory setting outside-in
Bearing – ball
Filter mat (Eurovent) – G3
Service life (at 40°C) hr 50 000
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 1.30 (1.50)
Package dimensions mm 270x270x165
Montaggio – fast clip-on
Cut-Out dimensions mm 224×224
Conformity/Approvals – CE

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
