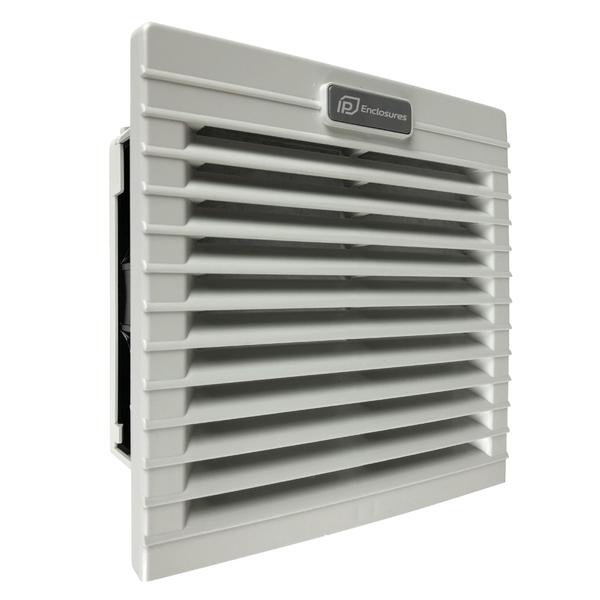

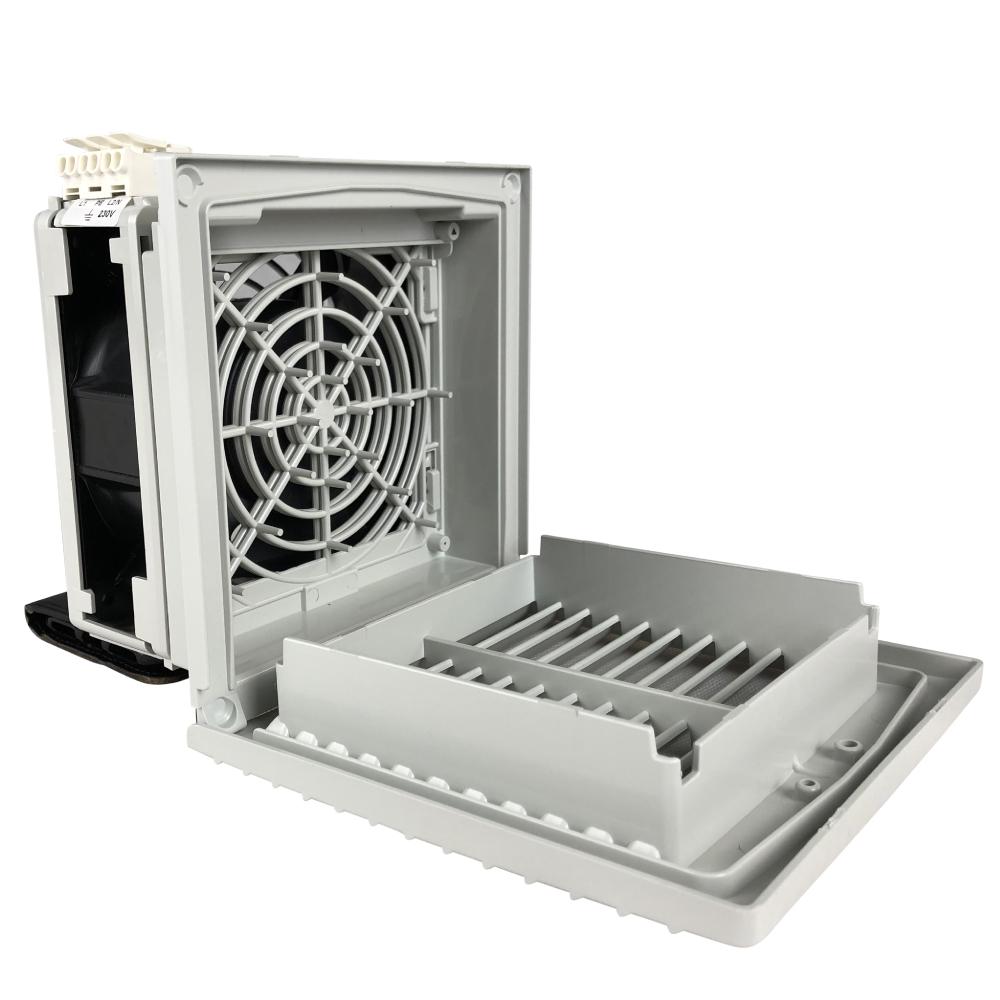

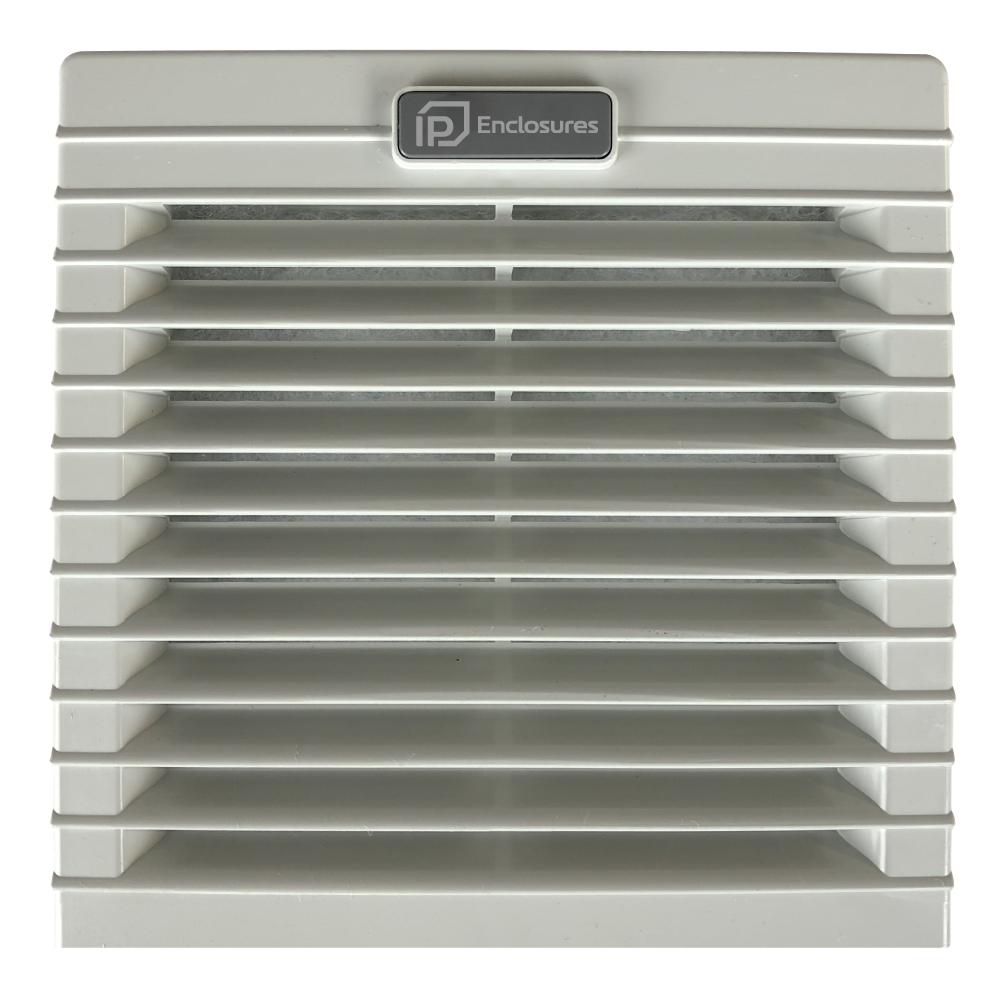

Filter Fan 150 x 150 58m3/hr 230V

SKU
£56.73 ex. VAT £68.08 inc. VAT
In stock
73 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Height (mm) 150
  • Width (mm) 150
  • Colour Grey
  • IP Rating IP54
  • Voltage 230V
  • Size 58m3/h

Filter Fan 150 x 150 58m3/hr 230V

High quality Italian filter fan unit for electrical enclosures.

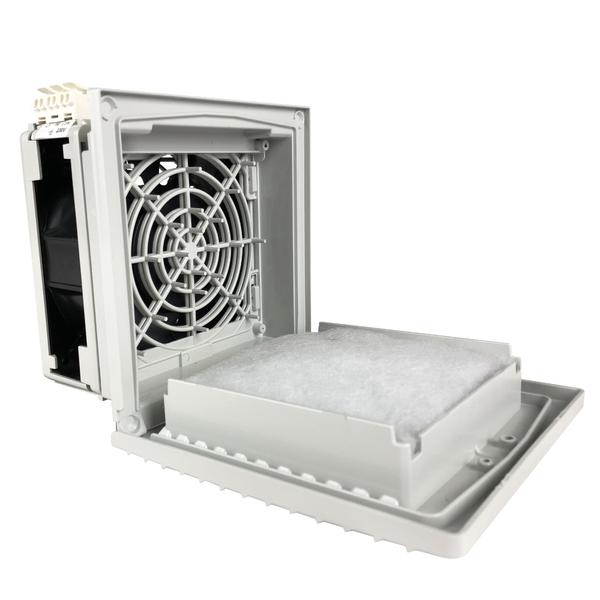

G3 Filter Mat Included.

Features Unit IP-V2200
Air flow rate (free blow) m³/h 58 (64)
Flow rate with exit filter m³/h 43 (48)
Power supply V/Hz 230 / 50-60
Dimensions HxLxP mm 150x150x86
Power consumption W 22 (21)
Current consumption A 0.14 (0.12)
Overcurrent consumption – impedance

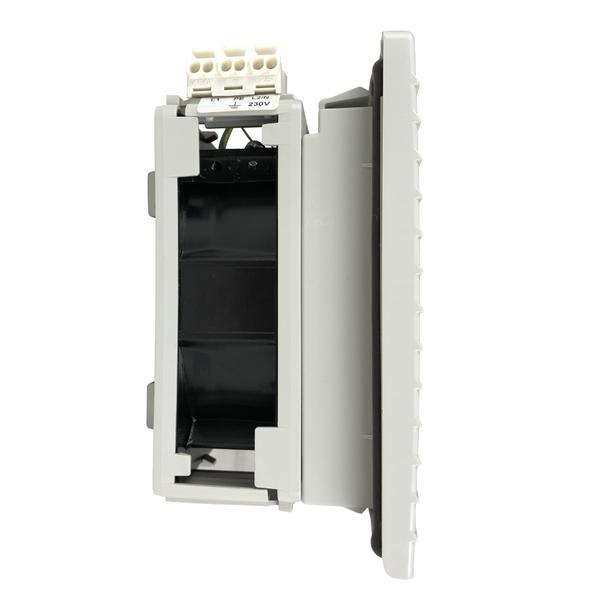

Electric connection – 3-poles spring terminals
Duty cycle – 100%
Operating temperature °C – 10 / +70 (+14 / +158)
Protection degree/class – IP54/Class I
Noise level dB(A) 43 (49)
Flow direction – reversible: default factory setting outside-in
Bearing – ball
Filter mat (Eurovent) – G3
Service life (at 40°C) hr 50 000
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 0.76 (0.83)
Package dimensions mm 165x165x90
Montaggio – fast clip-on
Cut-out dimensions mm 125×125
Conformity/Approvals – CE

Standards & certifications

IP54Dust-protected · splashing
