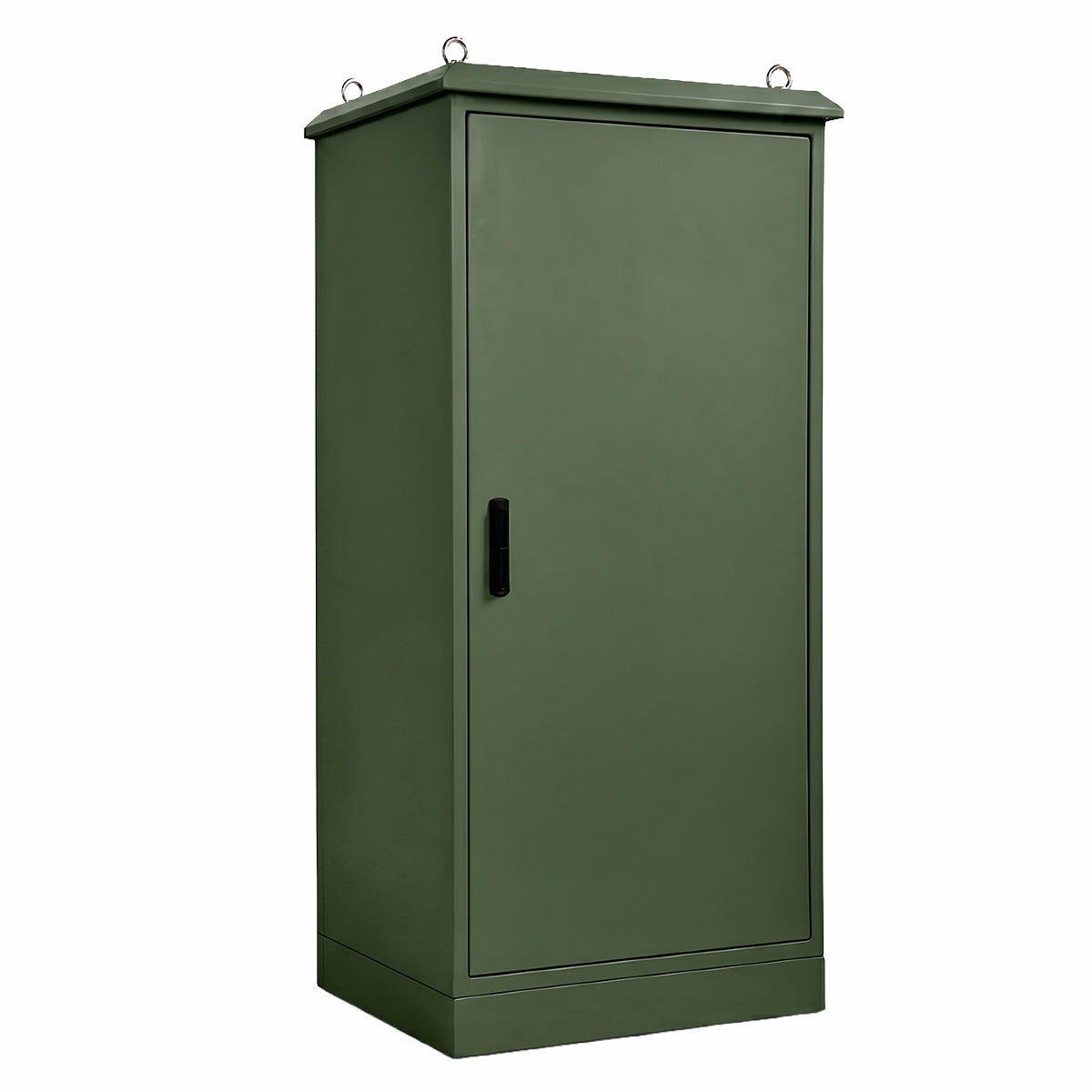

Field Cabinet 42U/RU 2275H x 750W x 620D IP66 Moss Green, Non-Ventilated

SKU
£1,915.15 ex. VAT £2,298.18 inc. VAT
In stock
2 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Height (mm) 2,275
  • Width (mm) 750
  • Depth (mm) 620
  • Material Steel
  • Colour Green
  • Finish Smooth Gloss Powder Coat
  • IP Rating IP66 IK10
  • Seal Type Polyurethane FIP
  • Lock Type 3-Point Key-Lock Swing Handle
  • Door Type Single Door
  • Operating Temp −40°C to +80°C
  • Standards
    • IEC 62208
    • IEC/EN/AS60529

Field Cabinet 42U/RU 2275H X 750W X 620D IP66 Moss Green, Non-Ventilated

At 2275 × 750 × 620mm in moss green, this non-ventilated 42U/RU pole-mount field cabinet houses large data-network, switchgear and infrastructure equipment in roadside, traffic-management and other heavy-duty outdoor installations. Galvanised steel construction rated to IP66 IK10, with flush-recessed vandal-resistant door and 3-point swing-handle locking.

Features and Specifications

Protection: IP66 IK10, NEMA 4 (Independent accredited test laboratory).

Standards (& Conformities): IEC/EN 62208, IEC/EN/AS60529, RoHS, CE, UKCA.

Construction

Body: 1.5mm galvanised steel; Door: 2.0mm galvanised steel. Robust monoblock body with flat-face sealing surfaces, integral device-plate mounts and M6 earth stud. The flush-recessed front door resists vandalism and unauthorised access, with concealed removable hinges, 110° opening and heavy-duty door stay. Supplied non-ventilated; fan/filter cutouts available on request. A machine-applied full-perimeter UL listed polyurethane seal (FIP) seals to −40°C to +80°C. 3-point key-lock swing-handle locking.

Surface Treatment

UL approved AkzoNobel polyester powder coat, smooth gloss finish, 80–120 micron — durable exterior colour retention. Standard colour T33 Smoke Blue; other colours available on request.

What's Included: Cabinet body, door with FIP polyurethane seal and A4 plan pocket, device mounting plate (pre-fitted), M6 earth stud, heavy-duty door stay. Pole-mount bracket and base ordered separately.


Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.

Standards & certifications

IP66 IK10Dust-tight · powerful jets IEC/EN/AS60529Ingress protection CEEU conformity UKCAUK conformity RoHSHazard-free IEC/EN 62208 Tested standards

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
