Home » Enclosures» Fibox ARCA Polycarbonate Enclosure 500H x 500W x 210D IP66 with 2 Quarter Turn Locks, Including Mounting Plate

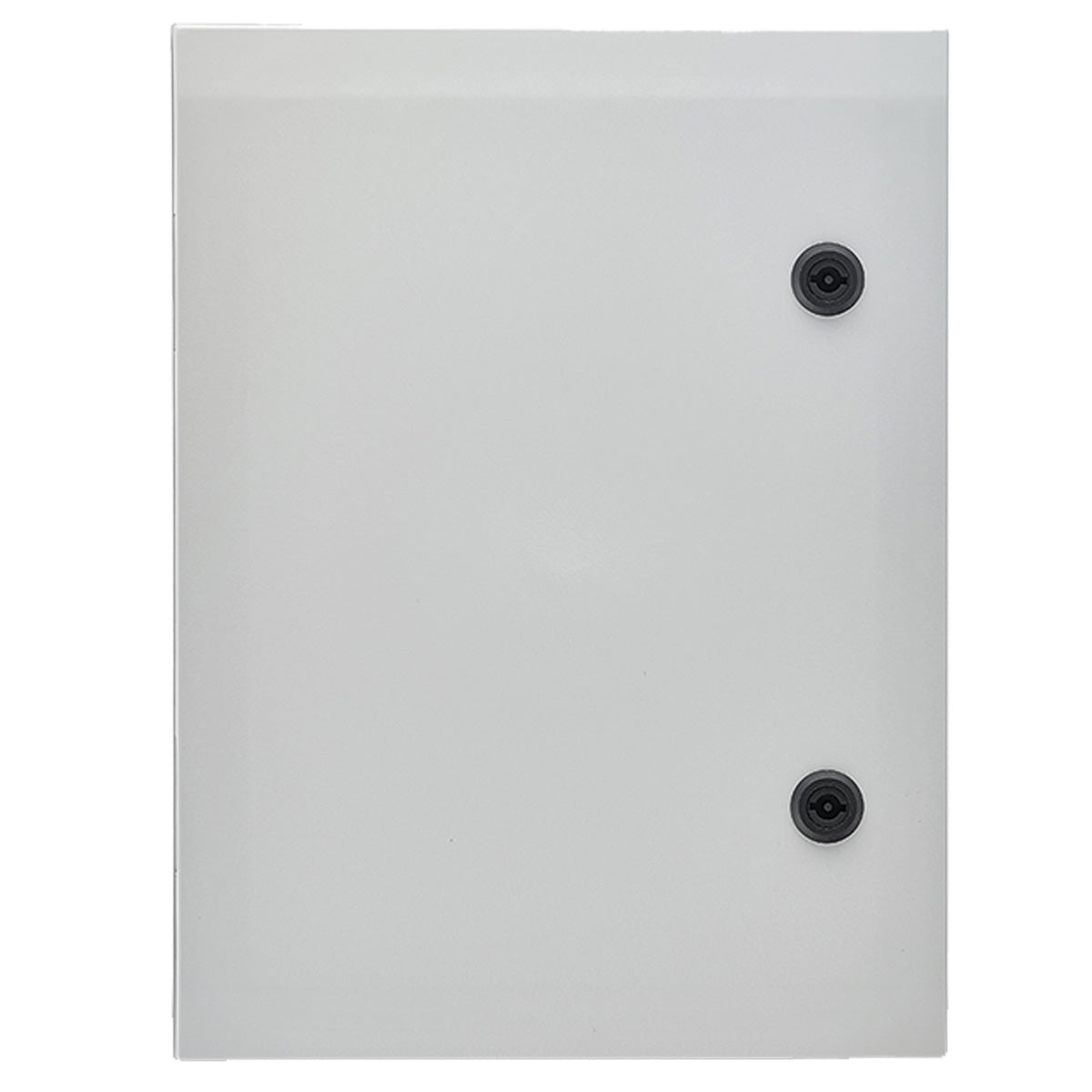

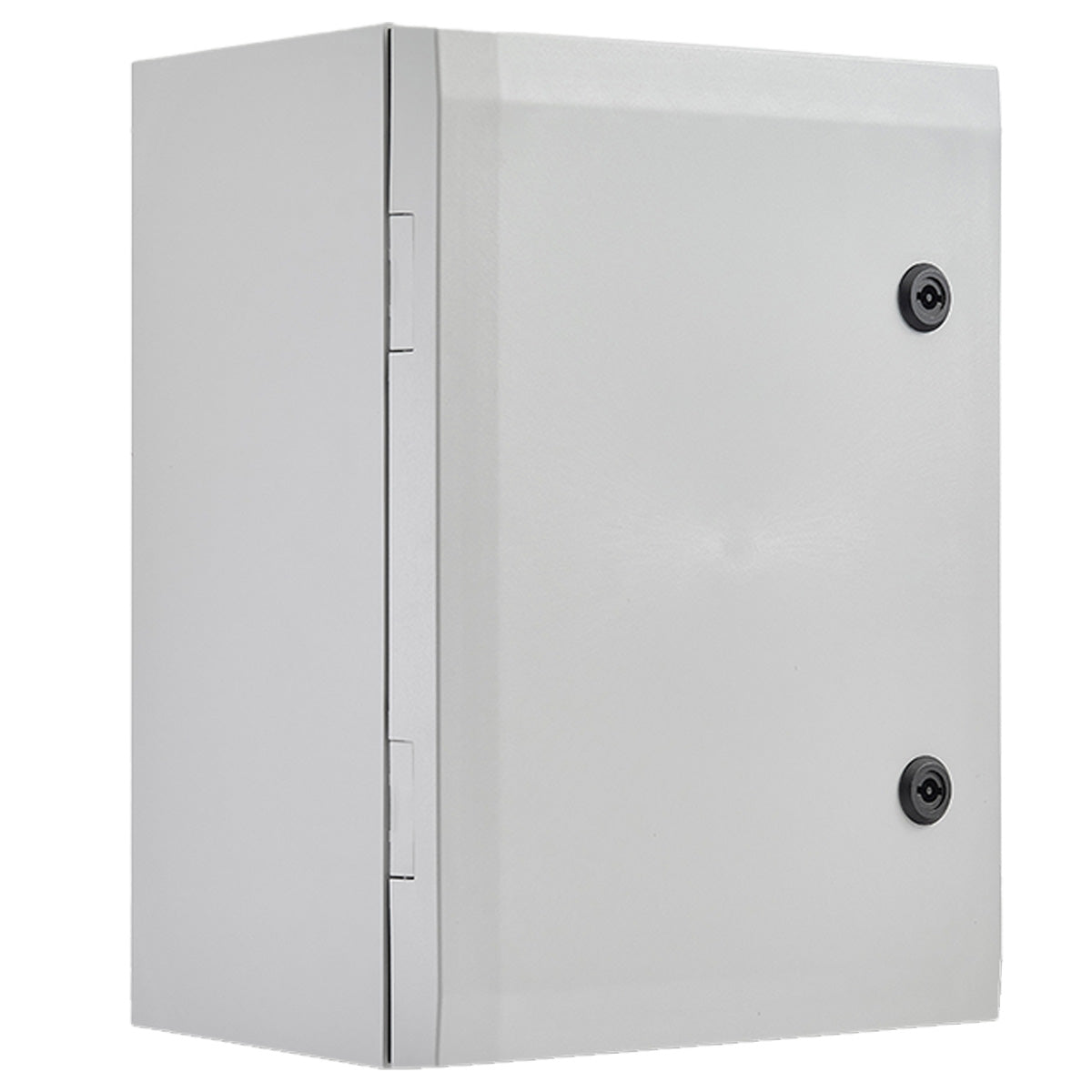

Fibox ARCA Polycarbonate Enclosure 500H x 500W x 210D IP66 with 2 Quarter Turn Locks, Including Mounting Plate — FIBOX
ARCA-505021 - image 2
Fibox ARCA Polycarbonate Enclosure 500H x 500W x 210D IP66 with 2 Quarter Turn Locks, Including Mounting Plate — FIBOX
ARCA-505021 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

FIBOX

Fibox ARCA Polycarbonate Enclosure 500H x 500W x 210D IP66 with 2 Quarter Turn Locks, Including Mounting Plate

SKU
£144.18 ex. VAT £173.02 inc. VAT
Min. order: 10
In stock
10 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Height (mm) 500
  • Width (mm) 500
  • Depth (mm) 210
  • Material Polycarbonate
  • Colour Grey
  • IP Rating IP66
  • IK Rating IK10
  • Seal Type Polyurethane FIP
  • Lock Type 3mm Double Bit 2-Point
  • Door Type Single Door
  • Mounting Plate
  • Operating Temp -40°C to 80°C
  • Country of Origin FI
  • Standards
    • IEC 62208
    • IEC 61439-1
    • IEC 61439-4
  • Flammability Rating UL 94 5VA

The Fibox ARCA 505021 is a 500H × 500W × 210D mm polycarbonate wall-mount enclosure rated IP66 and IK10, engineered for panel builders and electrical installations in harsh and demanding environments. The ARCA series offers the structural strength of a metal cabinet with the corrosion resistance and UV stability of high-grade polycarbonate — certified to IEC 62208, IEC 61439-1, and IEC 61439-4.

Supplied complete with PUR foam-in-place gasket, 3mm double-bit 2-point locks with key, mounting plate, and door guide. Halogen-free construction (DIN/VDE 0472), UL 94 5VA flammability rating, glow wire tested to 960°C. Suitable for continuous operation from -40°C to 80°C. NEMA Type 1, 4, 4X, 12, 13 rated.

Standards & certifications

IP66Dust-tight · powerful jets IK10Impact rated NEMAUS enclosure rating IEC/EN 62208 · 614391 · 614394 Tested standards
Product Datasheet PDF Dimensional Drawing PDF CAD File STEP Declaration of Conformity PDF

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
