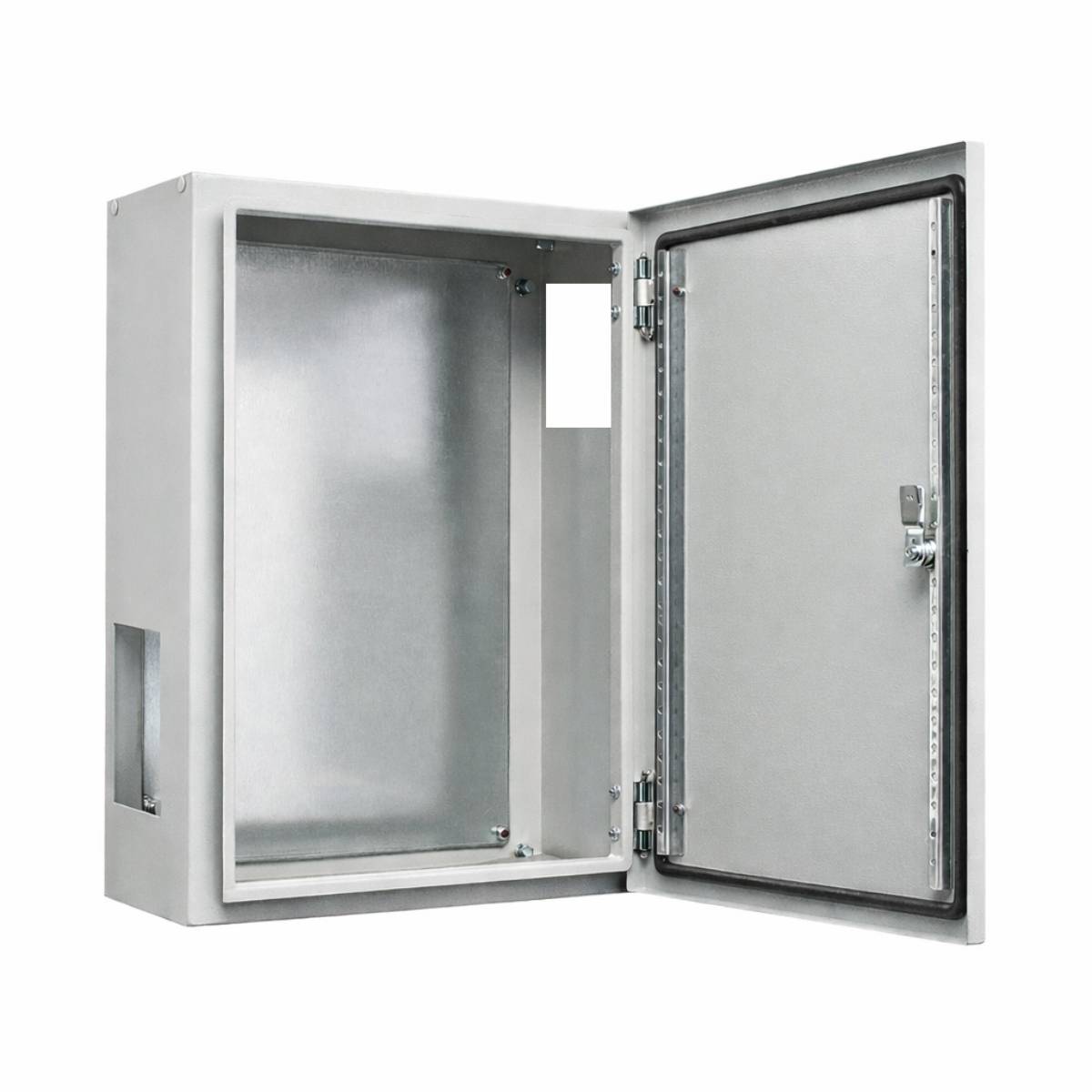

Electrical Enclosure 600H x 400W x 300D With Ventilation Cutouts

The S1 range of electrical enclosures are rated for protection up to IP55 (when used with IP-V2000-UV, IP-V2200-UV). This range is wall-mounted, powder-coated galvanised steel, single door construction, and features cut-outs for fans and vents for fast and easy assembly.

Protection: IP55, IK10

Standards & Conformities: IEC/EN 60529, IEC/EN 62208, IEC/EN 61439, RoHS

Material:

• Body: 1.2mm galvanised steel sheet
• Gland Plate: 1.5mm galvanised steel sheet
• Door: 1.5mm galvanised steel sheet
• Device Mounting Plate: 1.5mm galvanised steel sheet
• Seal: Polyurethane

Certificates:

• IEC 60529 – Degrees of protection provided by enclosures
  Certificate AB-0386-T 1902.14 02/00
• IEC/EN 62208 – Empty enclosures for low-voltage switchgear and controlgear assemblies
  Certificate 0366932-TSE-01/01
• IEC/EN 61439-1, 61439-2 – Low voltage switchgear and controlgear assemblies
  Certificate AB-0341-T, 23-297-R1-N1-1
• CE Certificate of Compliance
  Certificate SZT-24 MA 33485-1
• UKCA Certificate of Compliance
  Certificate SZU-22 MA 19560-1
• UL Listing
  Listing Number E534557

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
