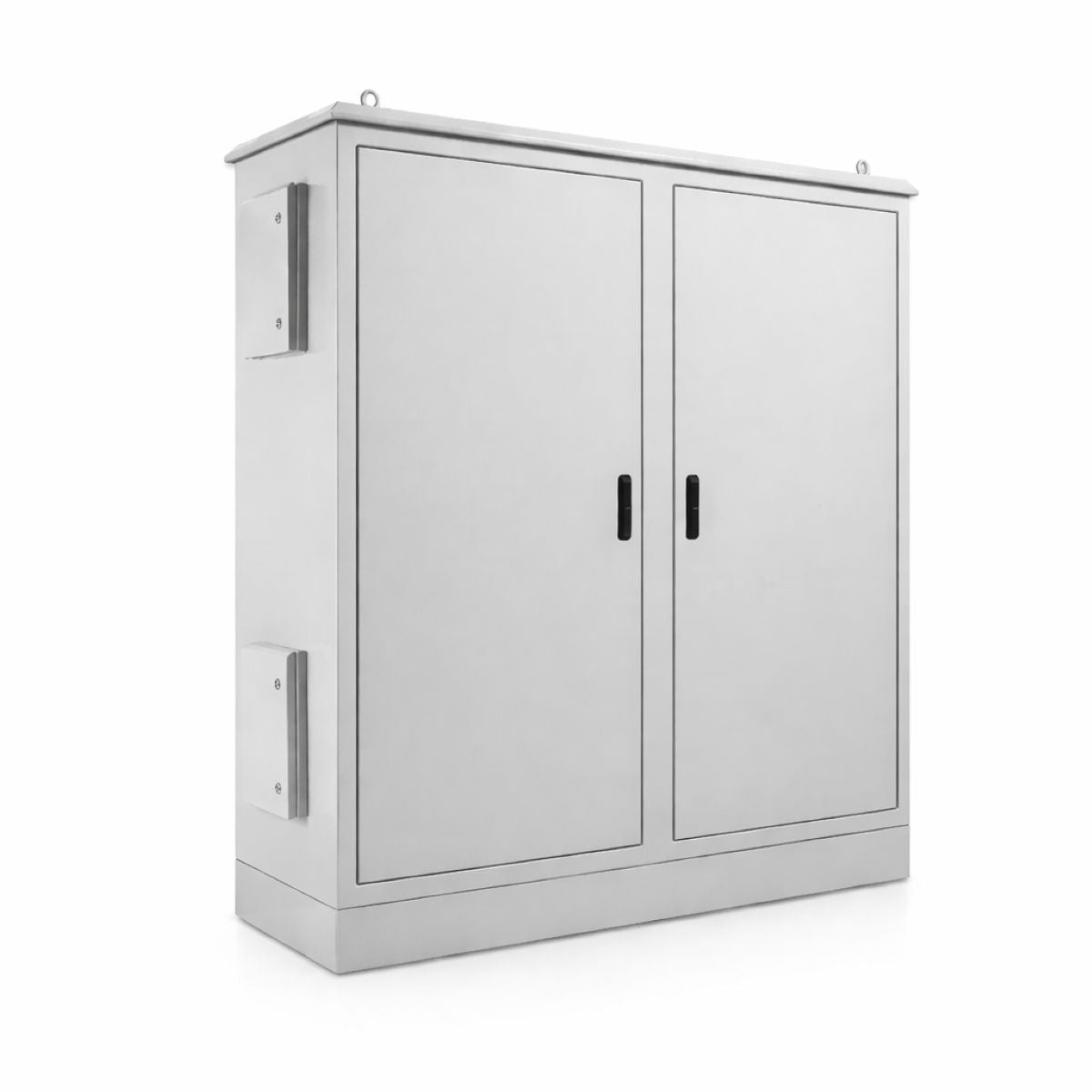

Double Bay Field Cabinet 2 X 24RU (48RU) 1375H X 1500W X 800D IP55 Grey, Ventilated

Double Bay Field Cabinet 2 X 24RU (48RU) 1375H X 1500W X 800D IP55 Grey, Ventilated

At 1375 × 1500 × 800mm in grey, this ventilated double-bay 2X24RU pole-mount field cabinet houses large data-network, switchgear and infrastructure equipment in roadside, traffic-management and other heavy-duty outdoor installations. Galvanised steel construction rated to IP55 IK10, with flush-recessed vandal-resistant door and 3-point swing-handle locking.

Features and Specifications

Protection: IP55 IK10, NEMA 4 (Independent accredited test laboratory).

Standards (& Conformities): IEC/EN 62208, IEC/EN/AS60529, RoHS, CE, UKCA.

Construction

Body: 1.5mm galvanised steel; Door: 2.0mm galvanised steel. Robust monoblock body with flat-face sealing surfaces, integral device-plate mounts and M6 earth stud. The flush-recessed front door resists vandalism and unauthorised access, with concealed removable hinges, 110° opening and heavy-duty door stay. Fan/filter cutouts and hinged vent hoods are fitted as standard (fans and filters ordered separately). A machine-applied full-perimeter UL listed polyurethane seal (FIP) seals to −40°C to +80°C. 3-point key-lock swing-handle locking.

Surface Treatment

UL approved AkzoNobel polyester powder coat, smooth gloss finish, 80–120 micron — durable exterior colour retention. Standard colour T33 Smoke Blue; other colours available on request.

What's Included: Cabinet body, door with FIP polyurethane seal and A4 plan pocket, device mounting plate (pre-fitted), M6 earth stud, heavy-duty door stay. Pole-mount bracket and base ordered separately.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
