Home » Enclosures» Chrome Quarter Turn 5mm Double Bit Lock for Electrical Enclosures
Chrome Quarter Turn 5mm Double Bit Lock for Electrical Enclosures — IP Enclosures
IP-L001 - image 2
Chrome Quarter Turn 5mm Double Bit Lock for Electrical Enclosures — IP Enclosures
IP-L001 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

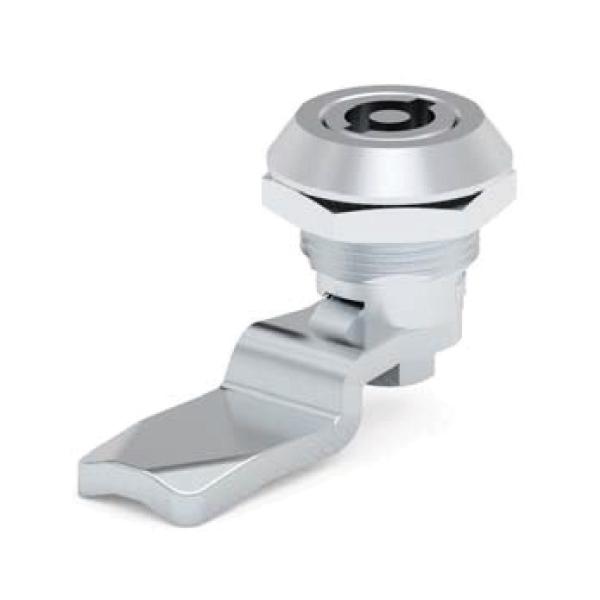

Chrome Quarter Turn 5mm Double Bit Lock for Electrical Enclosures

SKU
£5.68 ex. VAT £6.82 inc. VAT
In stock
48 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Material Chrome
  • Colour Chrome
  • IP Rating IP65

Chrome Quarter Turn 5mm Double Bit Lock for Electrical Enclosures

FEATURES

– Specially designed internal spring provides 1.5 mm of compression.
– Cam does not rotate beyond quarter turn due to stop lip.

MATERIAL

HOUSING: Zamak DIN-EN 1774-ZnAl4Cu1
DRIVER: Zamak DIN-EN
CAM: Steel
GASKET: Rubber
FINISH: Chrome
IP RATING: IP65

DRIVERS

IP-L001: 5mm Double Bit

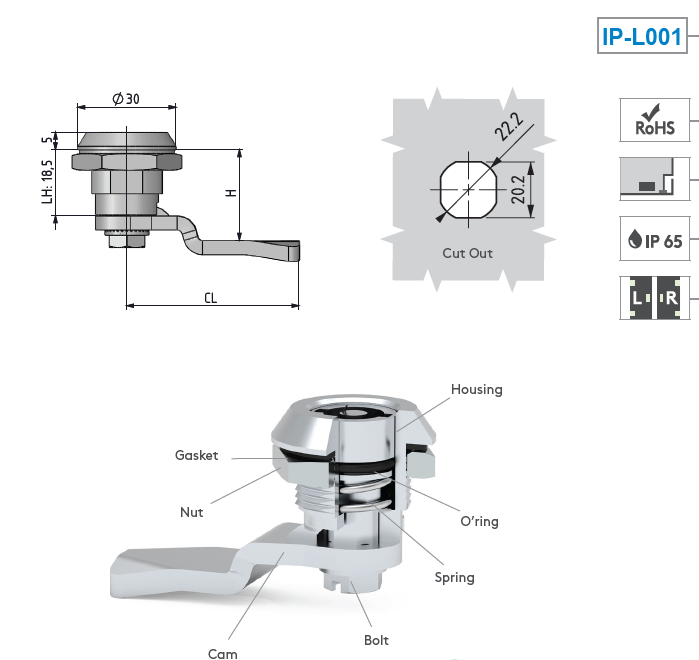

DIMENSIONS

H=25.5mm

CL=49mm

Standards & certifications

IP65Dust-tight · water jets
