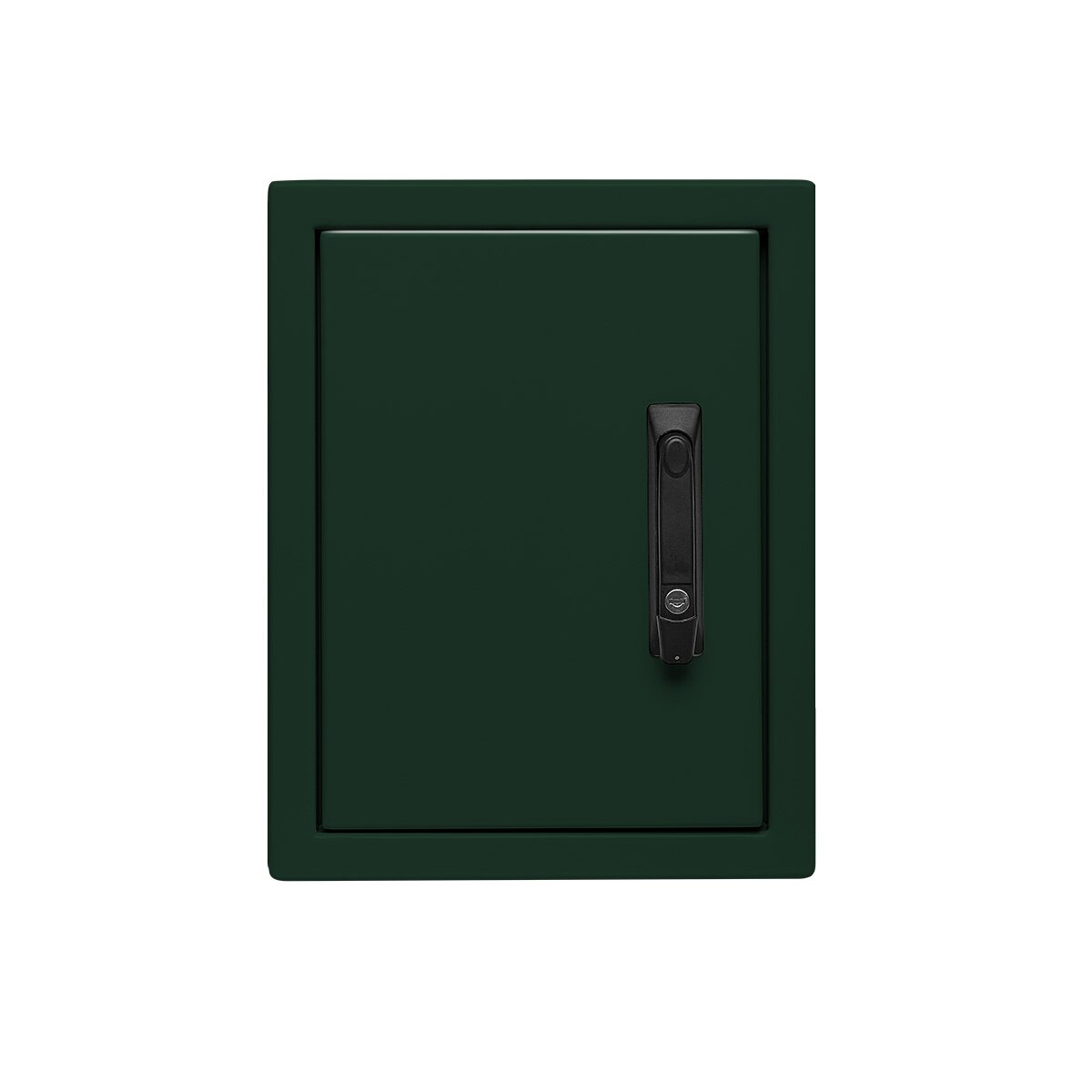

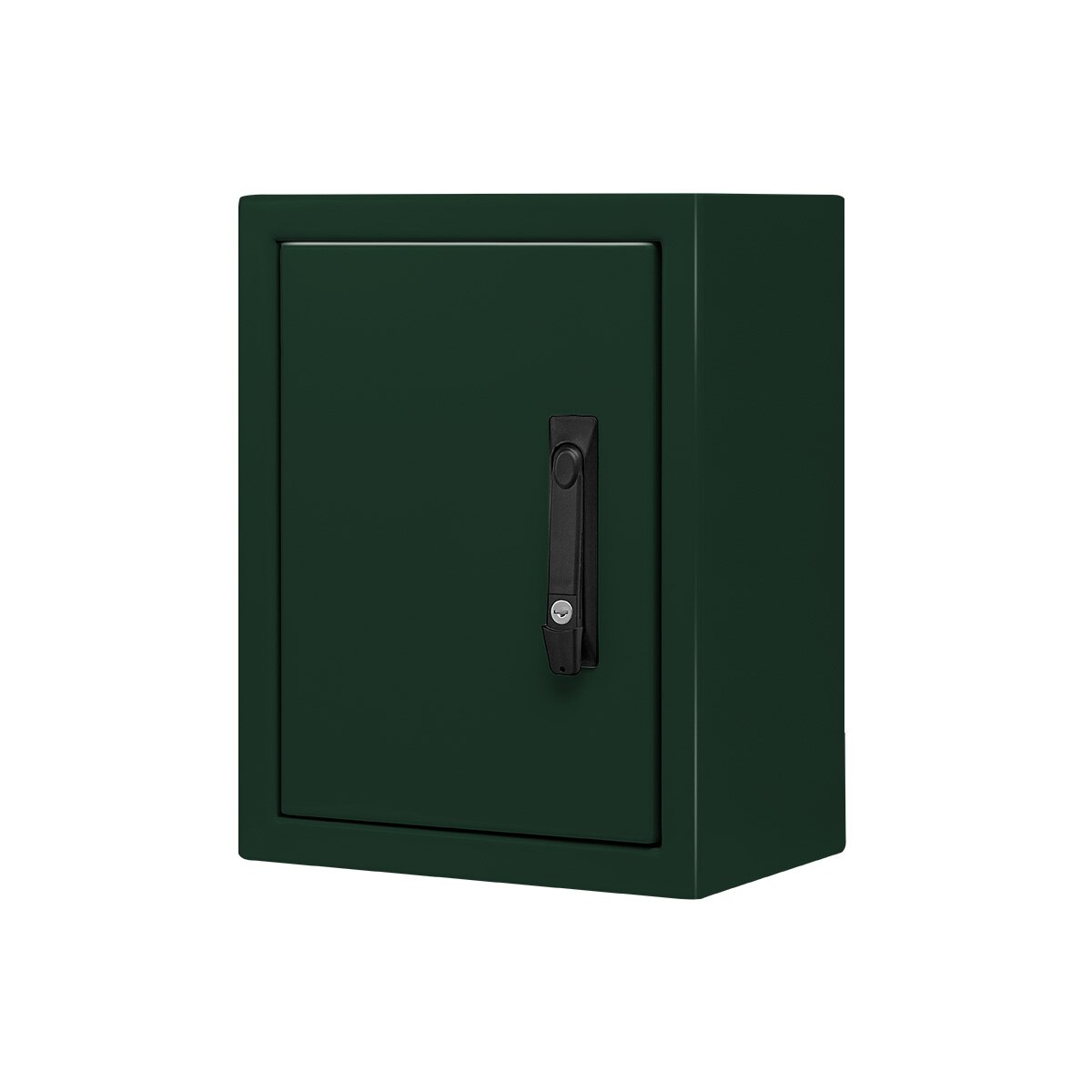

Field Enclosure 700H x 600W x 325D IP66 RAL6005 Moss Green, Non-Ventilated C/W 12U 19" Rack Profiles

700H X 600W X 325D IP66 Field Enclosure Gal Steel RAL6005 Moss Green, Non-Ventilated C/W 12U 19” Rack Profiles

Pole-mounted field cabinets are designed to house sensitive data network and electrical equipment for a variety of heavy-duty outdoor applications including general industrial, infrastructure, road and traffic management, and intelligent transport systems.

Features and Specifications

Protection: Complies with IP66

Standard: IEC62208, IEC/EN/AS60529

Material:

Body: 1.5mm galvanised steel sheet
Doors: 2.0mm galvanised steel sheet
19” Data Rack Rails: 1.5mm galvanised steel sheet
Enclosure Seal: Polyurethane

Body:

The robust monoblock body is fabricated using 1.5mm galvanised steel sheet. Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. Integral device plate mounts and an M6 earth stud are included. 19″ data rack rails are fitted.

Doors:

The front door is fabricated using 2.0mm galvanised steel sheet and is designed to provide flush recessed mounting to prevent vandalism and unauthorised access. The door incorporates concealed removable hinges with captive pins. It is hinged on the left side, designed for a 110° opening, and is provided with a heavy-duty door stay. An A4 plan pocket is included.

Seals:

A high-quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance: -40°C to 80°C (160°C short-term loading).

Device Mounting Plate:

The device mounting plate is fabricated from 1.5mm galvanised steel sheet and is pressed to provide additional strength. It is pre-fitted into the enclosure as standard and powder-coated RAL9010 Pure White.

Locks:

3 point locking system with key-lock swing handle.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish, 80–120 micron average thickness. Colour: RAL6005 Moss Green.

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
