316 Stainless Steel Transparent Door 800H x 400W IP66
Ask an expert!
- Height (mm)
- Width (mm)
- Material
- Colour / Finish
- IP Rating

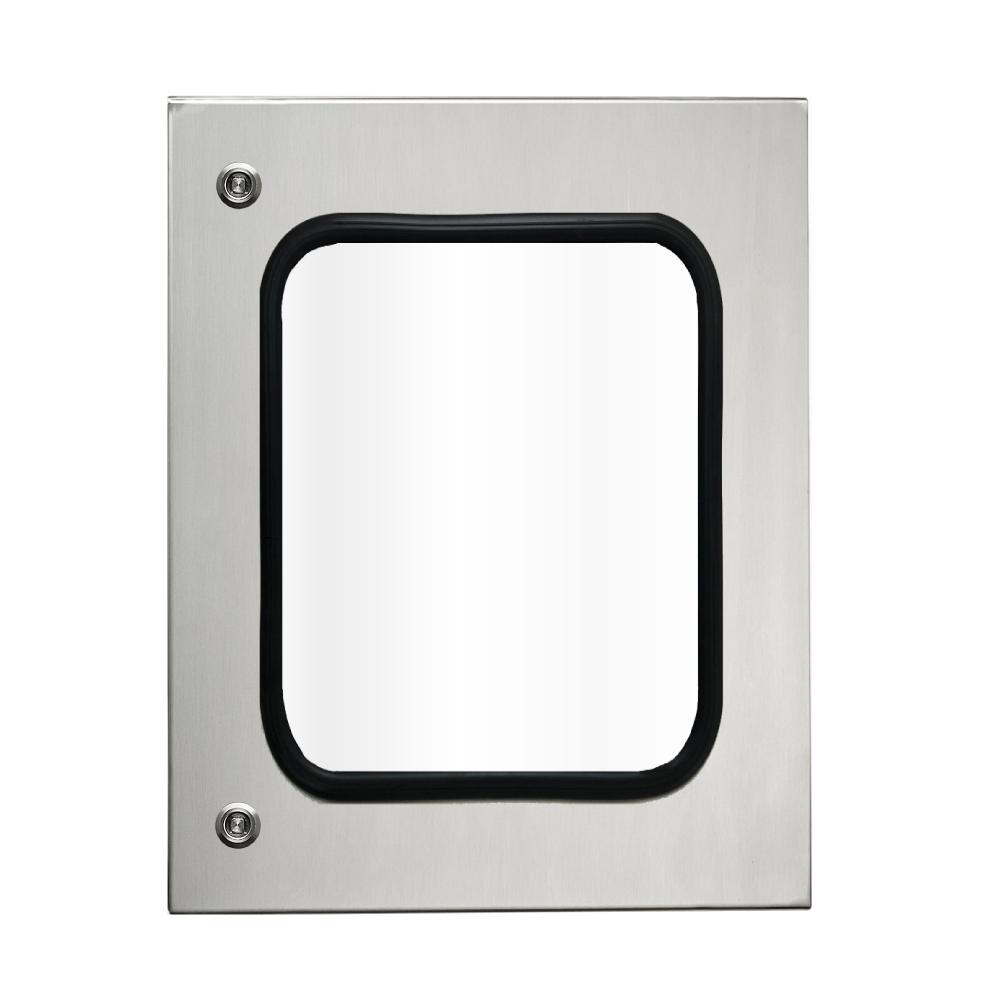

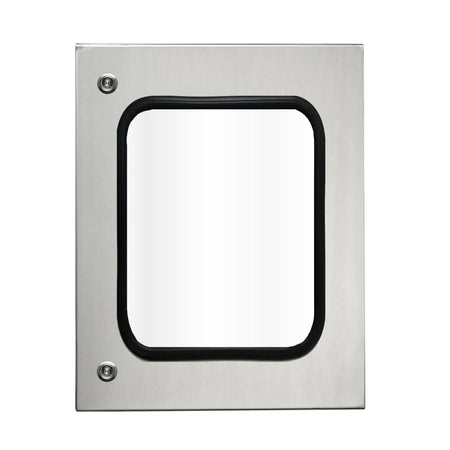

316 Stainless Steel Transparent Door 800H x 400W IP66
IP Enclosures offer stainless steel transparent glazed doors engineered for compatibility with its range of electrical enclosures. Supplied as a standard accessory, transparent doors allow quick replacement by removing the existing door. The doors incorporate a transparent viewing window panel manufactured from polycarbonate material and are exclusively sold and available in the UK region to ensure compliance with applicable UK electronics and electrical standards.
Features and Specifications
Protection: IP66
Standard: IEC/EN 60529, RoHS
Material:
Enclosure Door: 1.5mm grade 316L stainless steel
Viewing Window Panel: 4.0mm Polycarbonate
Enclosure Seal: Polyurethane
Door:
The surface mounted door is made from 1.5mm 316L stainless steel. It incorporates concealed, removable hinges with captive pins and is designed for a 110° opening.
Viewing Window Panel:
The viewing window panel is made from 4.0mm thick Polycarbonate.
Seal:
A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).
Lock:
Grade 316L stainless steel 8mm square drive quarter turn lock. A full range of locking solutions are available upon request.
Viewing Panel Size:
604mmH x 204mmW
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
