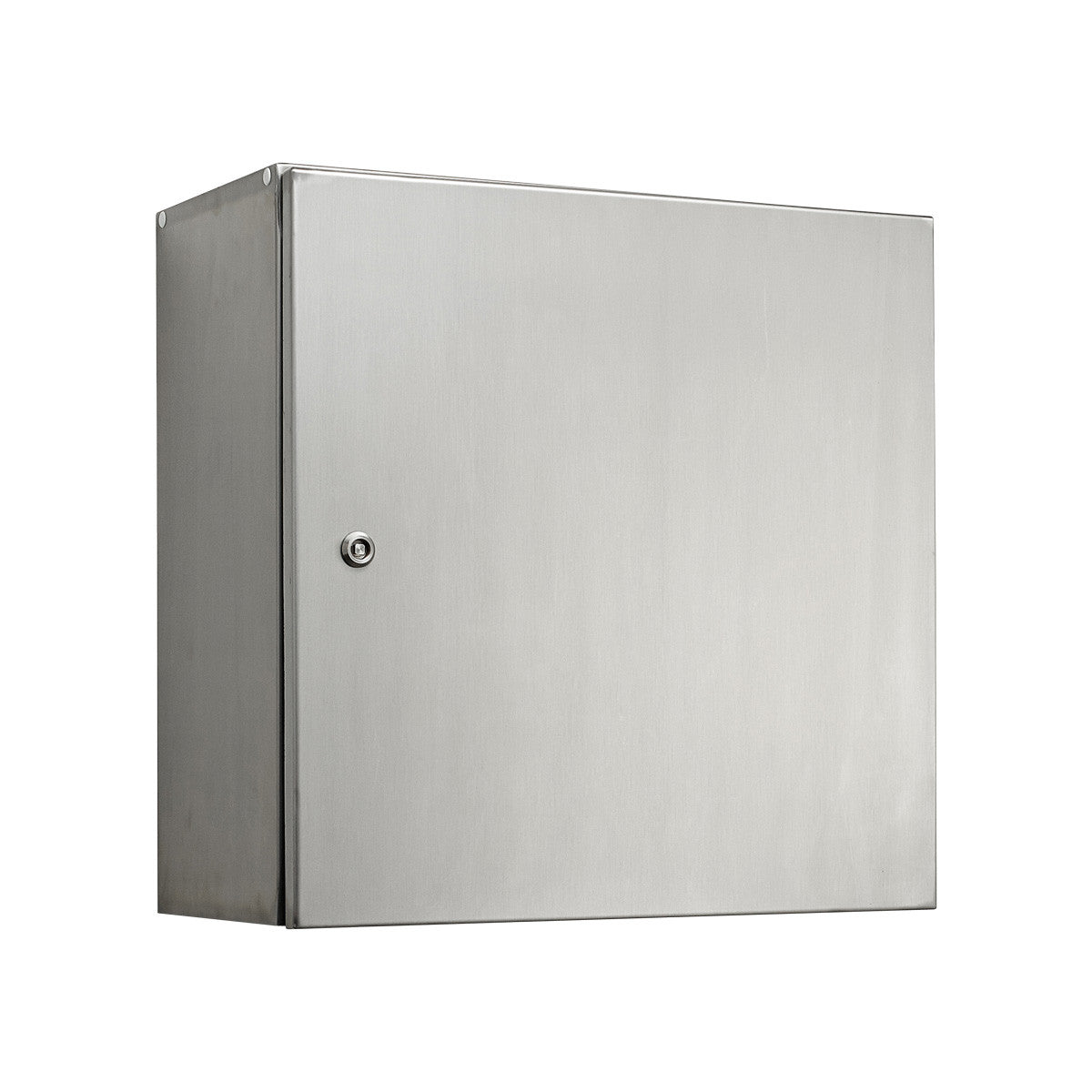

316 Stainless Steel Electrical Enclosure 500H x 500W x 300D IP66 — IP Enclosures

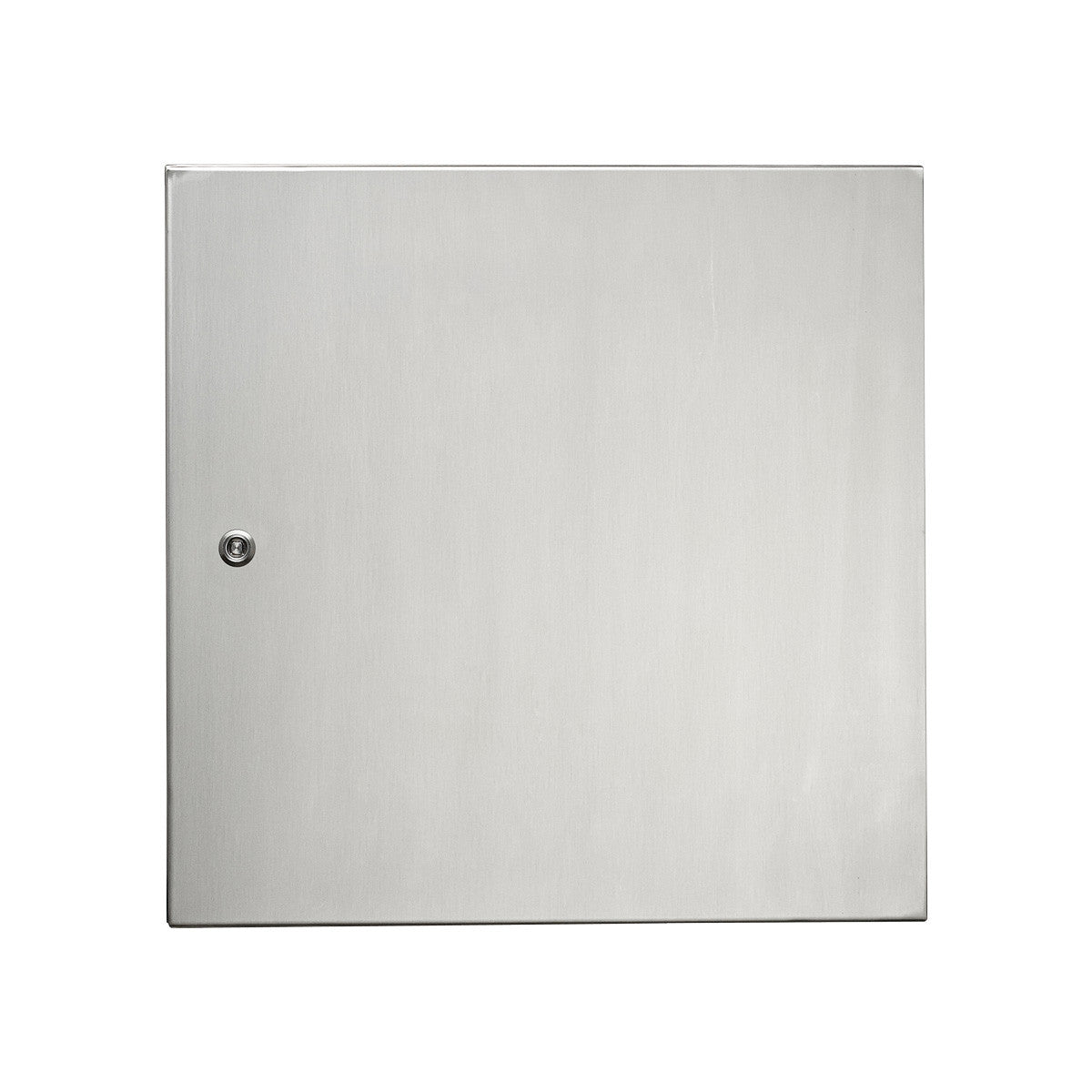

IP-SS505030 - image 2

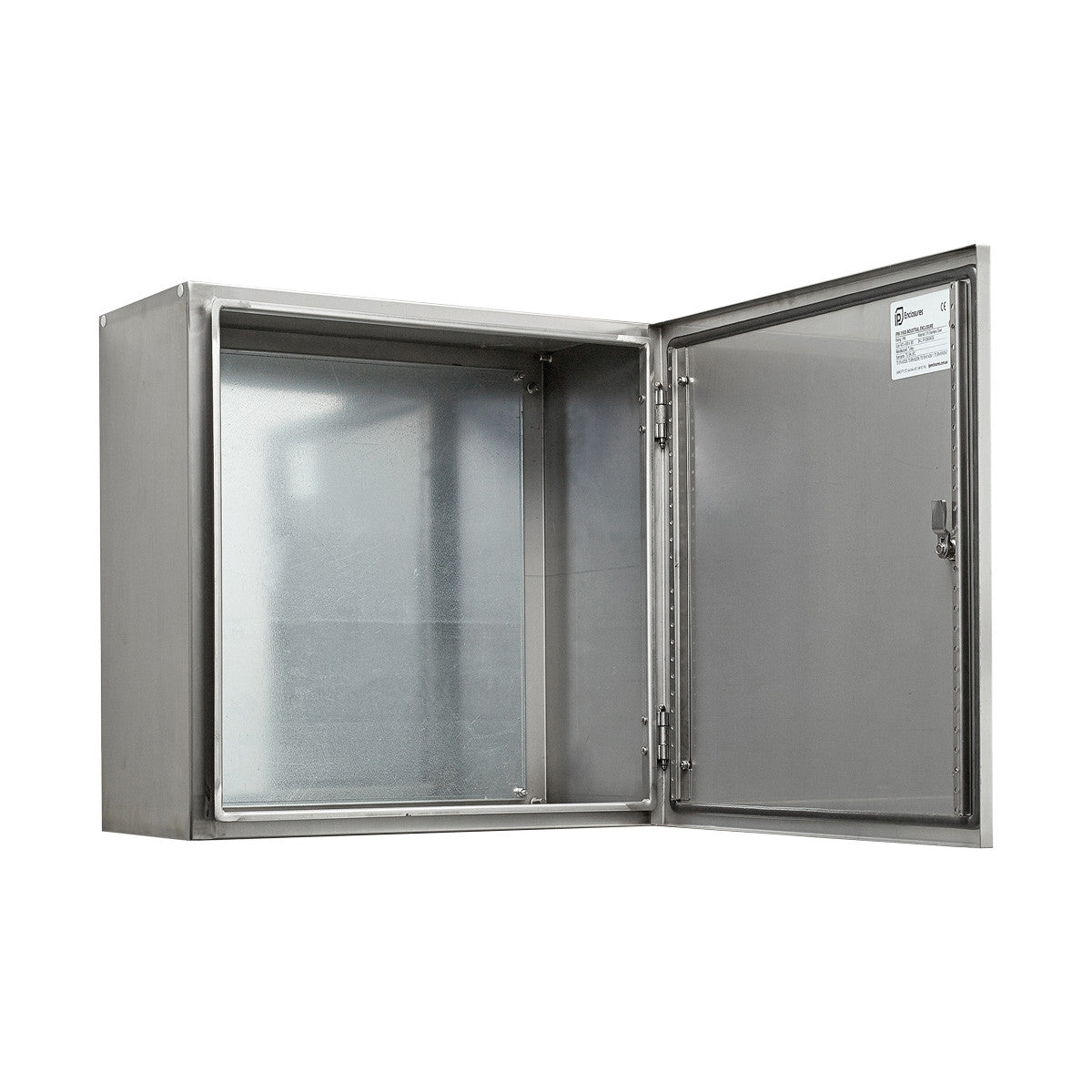

IP-SS505030 - image 3
316 Stainless Steel Electrical Enclosure 500H x 500W x 300D IP66 — IP Enclosures
IP-SS505030 - image 2
IP-SS505030 - image 3

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

316 Stainless Steel Electrical Enclosure 500H x 500W x 300D IP66

SKU
£599.97 ex. VAT £719.96 inc. VAT
In stock
4 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Height (mm) 500
  • Width (mm) 500
  • Depth (mm) 300
  • Material Stainless Steel 316
  • Finish 4B Brushed
  • IP Rating IP66
  • Seal Type Polyurethane FIP
  • Lock Type 8mm Square Drive Quarter Turn
  • Door Type Single Door
  • Operating Temp −40°C to +80°C
  • Standards
    • IEC 62208
    • IEC/EN/AS60529
    • IEC/EN 61439
316 Stainless Steel Electrical Enclosure 500H x 500W x 300D IP66




Note: Please choose product carefully. Product selection is the responsibility of the 'Purchaser'. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.

Standards & certifications

IP66Dust-tight · powerful jets IEC/EN/AS60529Ingress protection CEEU conformity UKCAUK conformity ULUS safety listed NEMAUS enclosure rating RoHSHazard-free IEC/EN 62208 · 61439 Tested standards
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG CAD File STEP
