Home » Enclosures» 304 Stainless Steel Electrical Enclosure 500H x 500W x 300D IP66

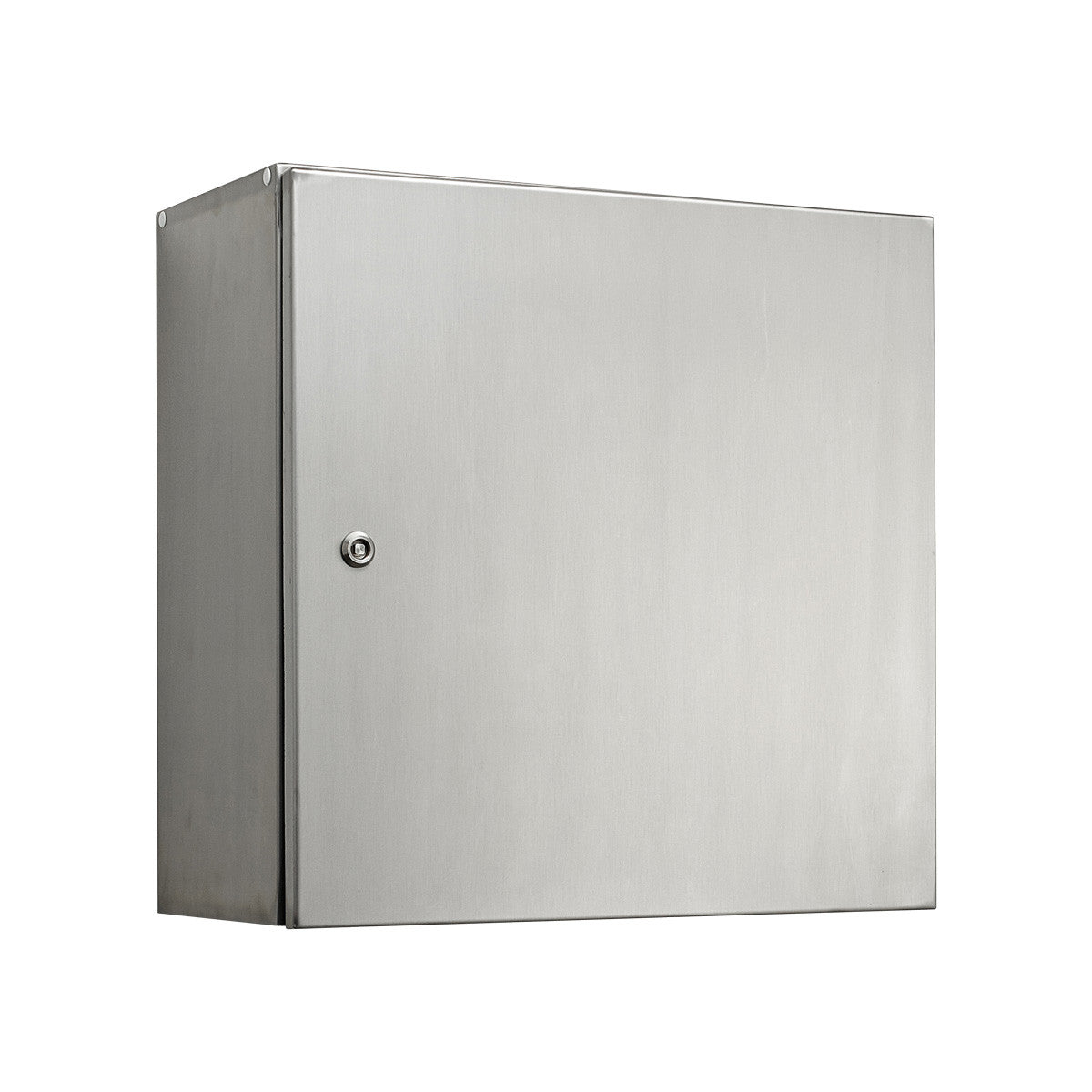

304 Stainless Steel Electrical Enclosure 500H x 500W x 300D IP66 — IP Enclosures

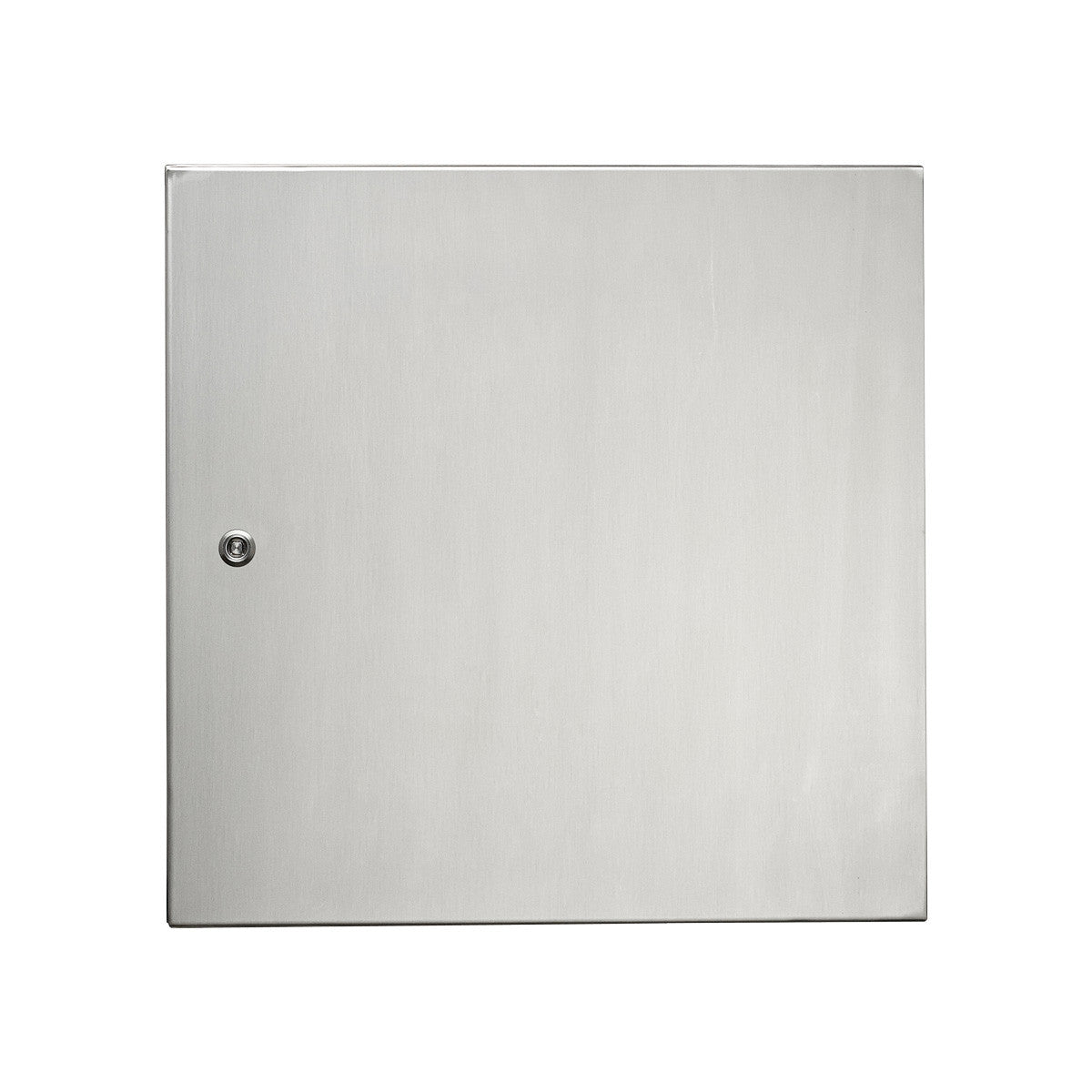

IP-304-505030 - image 2

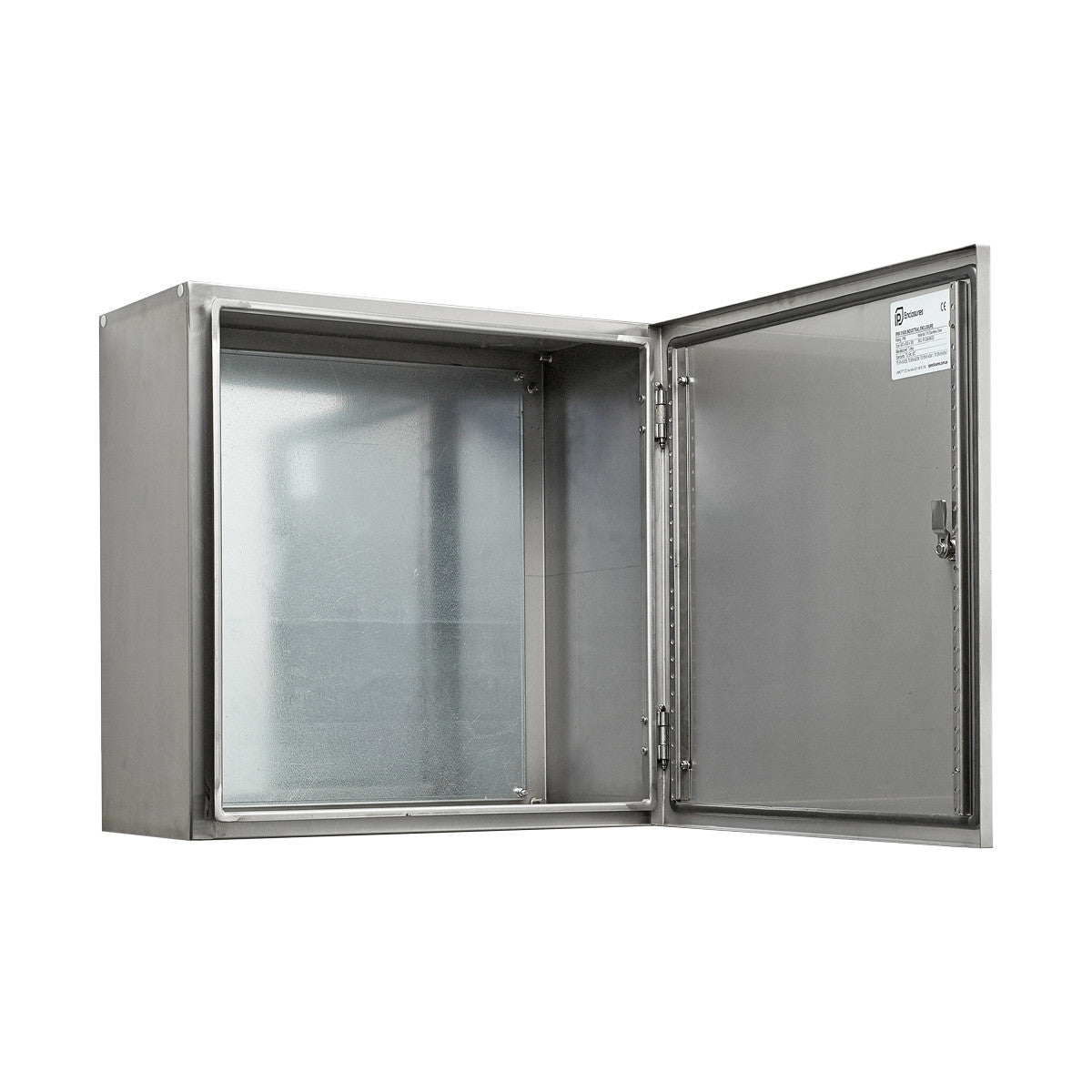

IP-304-505030 - image 3
304 Stainless Steel Electrical Enclosure 500H x 500W x 300D IP66 — IP Enclosures
IP-304-505030 - image 2
IP-304-505030 - image 3

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

304 Stainless Steel Electrical Enclosure 500H x 500W x 300D IP66

SKU
In stock
Stock on hand
West Midlands WarehouseDroitwich, WR9 0NR
24 in stock
Updated 1 minute ago
Shipping & pickup →
£351.30 ex. VAT £421.56 inc. VAT
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 500
  • Width (mm) 500
  • Depth (mm) 300
  • Material Stainless Steel 304
  • IP Rating IP66
  • Door Type Single Door
  • Seal Type Polyurethane FIP
  • Lock Type 8mm Square Drive Quarter Turn
  • Operating Temperature −40°C to +80°C
  • Standards
    • IEC 62208
    • IEC/EN/AS60529
    • IEC/EN 61439
  • Certifications
    • IP66
    • IK10
    • CE
    • UKCA
    • UL
    • NEMA 4X
    • RoHS
304 Stainless Steel Electrical Enclosure 500H x 500W x 300D IP66




Note: Please choose product carefully. Product selection is the responsibility of the 'Purchaser'. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
