Power Flex · TOPFLEX MS · Tri-rated

One panel wire, approved on four continents.

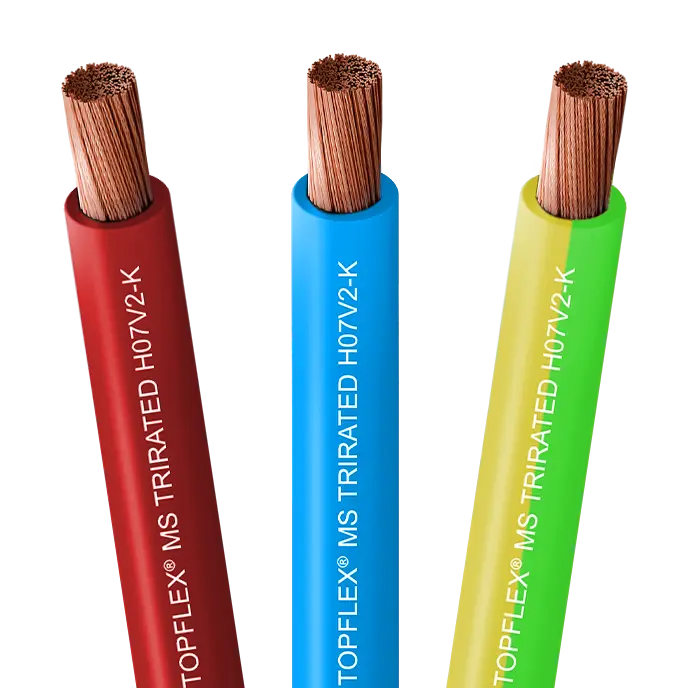

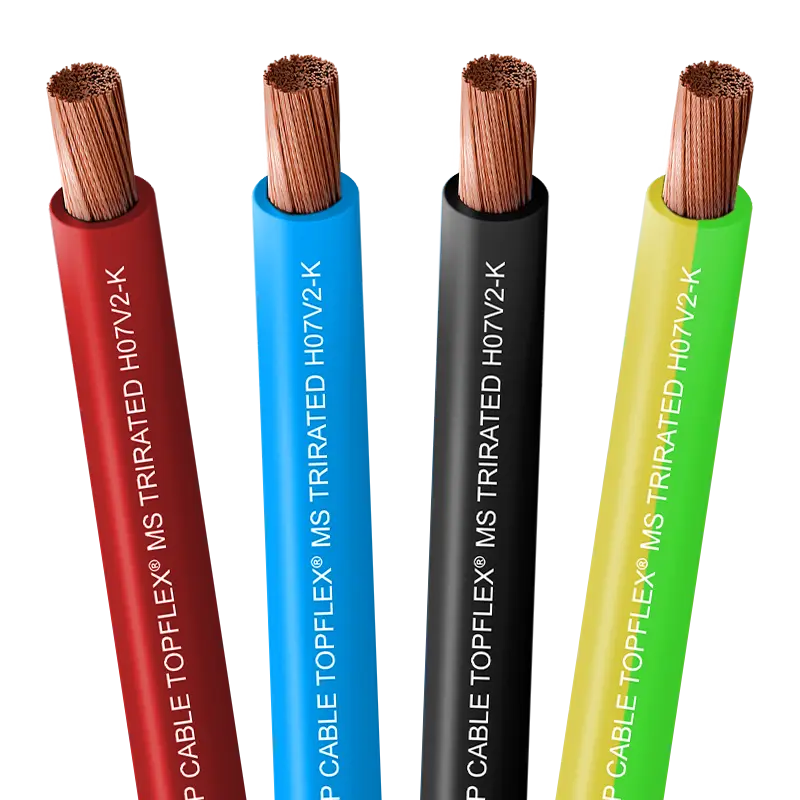

TOPFLEX MS Tri-rated (H07V2-K) is the high-temperature, extra-sliding panel wire that carries EN, BS, UL and CSA approval in a single cable — so the switchboard you build in Australia ships to North America, the UK or Europe without re-spec or re-wire. Class 5 flexible copper, 105 °C rated, made in Spain, stocked in Australia through TROPAC.
Shop TOPFLEX MS range Download Datasheet
Tri-rated EN · BS · UL · CSA
105°C UL/CSA max conductor
Class 5 Extra-sliding flexible Cu
Eca CPR fire rating
Australian stock QLD · NSW · VIC warehouses
Tri-rated compliance UL 758 · CSA C22.2 · BS 6231 · EN 50525-2-31
HAR · AENOR · UL Listed Genuine, fully traceable Top Cable
PAC support Panel-wire selection & cut-to-length
The compliance spec

When one approval isn't enough.

Standard panel wire is approved to one regional standard. Build for export with it and you re-spec — or re-wire — for every market. TOPFLEX MS carries four approvals in one cable.

Standard building / panel wire TOPFLEX MS Tri-rated
Standard building / panel wire TOPFLEX MS Tri-rated
Approvals One regional standard EN + BS + UL + CSA
Export-ready Re-spec per market One cable, all markets
Max temp 70–90 °C typical 105 °C (UL/CSA)

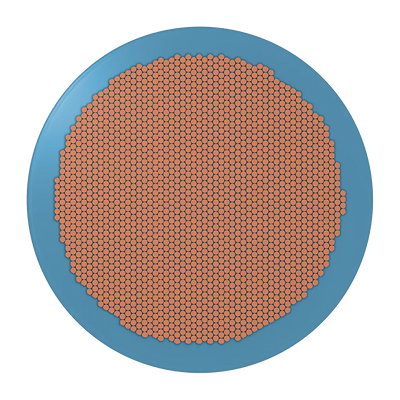

Conductor Often Class 1 / 2 Class 5 flexible, extra-sliding
Cold limit 0 °C typical −40 °C (fixed / protected)
Fire (CPR) Varies Eca, flame non-propagating

Indicative positioning for internal panel wiring. Voltage rating varies by standard — 450/750 V (EN), 600/1000 V (BS), 600 V (UL/CSA).

Power Flex TOPFLEX MS

Why it wins

The cable that simplifies compliance. TOPFLEX MS is built for one job done globally: internal wiring of cabinets, switchboards and machinery for equipment that crosses borders.

Tri-rated approval means a single part number satisfies North American (UL/CSA), UK (BS) and European/AU (EN) requirements — one line item instead of four, and no re-wire for the export build. Class 5 extra-sliding copper pulls fast through crowded conduit and dresses cleanly into tight switchboards.

One wire, every market. Standardising on TOPFLEX MS cuts SKUs and removes the compliance guesswork from multi-market panel builds.

Tri-rated for global compliance Compliance
UL 758, CSA C22.2, BS 6231 and EN 50525-2-31 in one cable — four markets, one part number.
105 °C high-temperature service Thermal
Reliable in high-density, high-current panels — often lets you drop a cross-section for the same load.
Extra-sliding Class 5 PVC Handling
Low-friction sheath pulls fast through crowded conduit and dresses into tight switchboards. 5× diameter min bend radius.
−40 °C to 105 °C range Durability
Protected indoor through cold-storage installs, across the full service range.
Enhanced fire safety Fire
Flame non-propagating to EN/IEC 60332-1 and UL VW-1; CPR reaction-to-fire class Eca.
Global spec. Local supply.

100% made in Spain. Stocked in Australia.

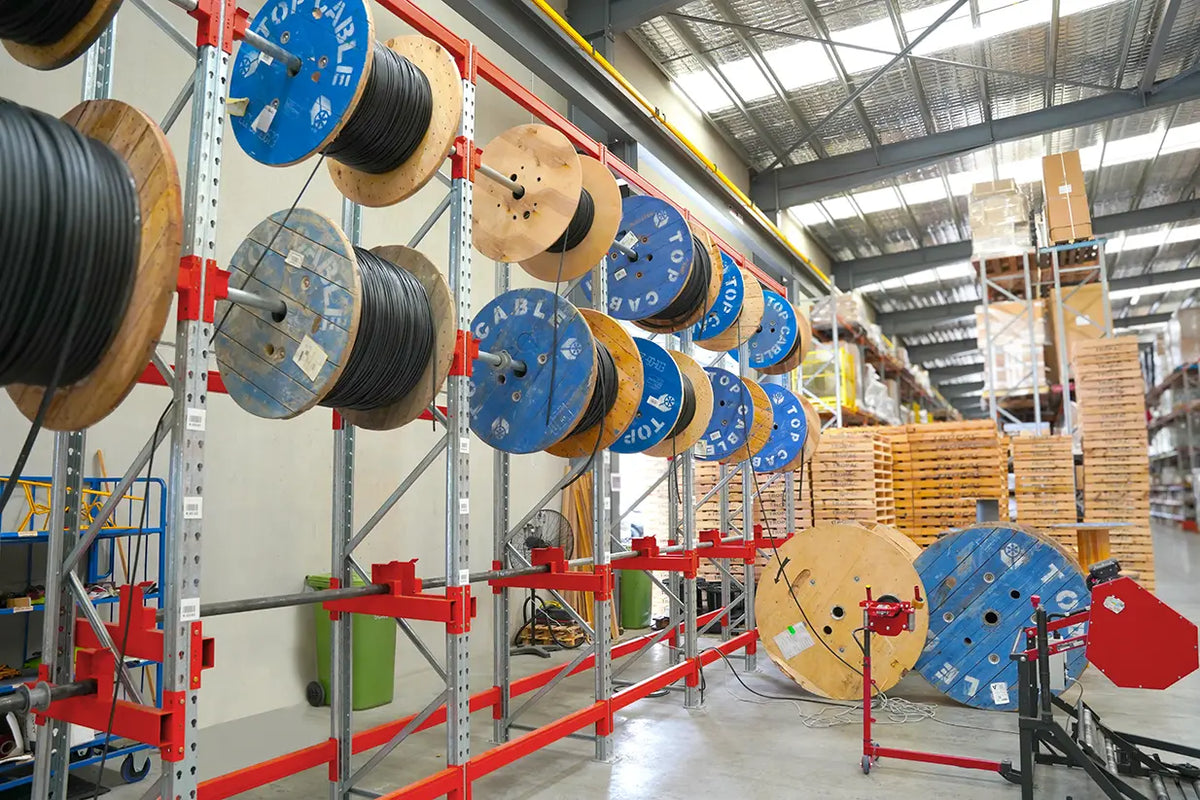

100% made in Spain by Top Cable. Power Flex is TROPAC's exclusive Australian channel — deep local stock of the TOPFLEX MS range across QLD, NSW and VIC, meter-by-meter marked (10 mm² up), cut to length and dispatched same-day. No grey imports: genuine, fully traceable, HAR / AENOR / UL Listed cable.
Download compliance certificates
Resources & support

Specify with confidence.

Technical datasheet
Full current ratings, colours, packaging and all four standards for the TOPFLEX MS range.
Download TOPFLEX MS datasheet →
Tri-rated comparison chart
TOPFLEX MS against single-standard panel wire, standard by standard.
View comparison chart →
Compliance certificates
EN 50525-2-31, BS 6231, UL 758, CSA C22.2, HAR, AENOR, UL Listed, CE and RoHS on file.
Download certificates →
Other Power Flex cables

Running feeders, not panel wire?

TOPFLEX MS is internal panel and switchboard wire. For power runs and rugged jobs, step across to the rest of the Power Flex cable range.

Feeders & sub-mains
RV-K

The industrial all-rounder — 0.6/1 kV, 90 °C XLPE, Class 5, AD8 water immersion. For sub-mains, VSD feeders and cable trays.

Learn about RV-K →
Mobile & heavy-duty

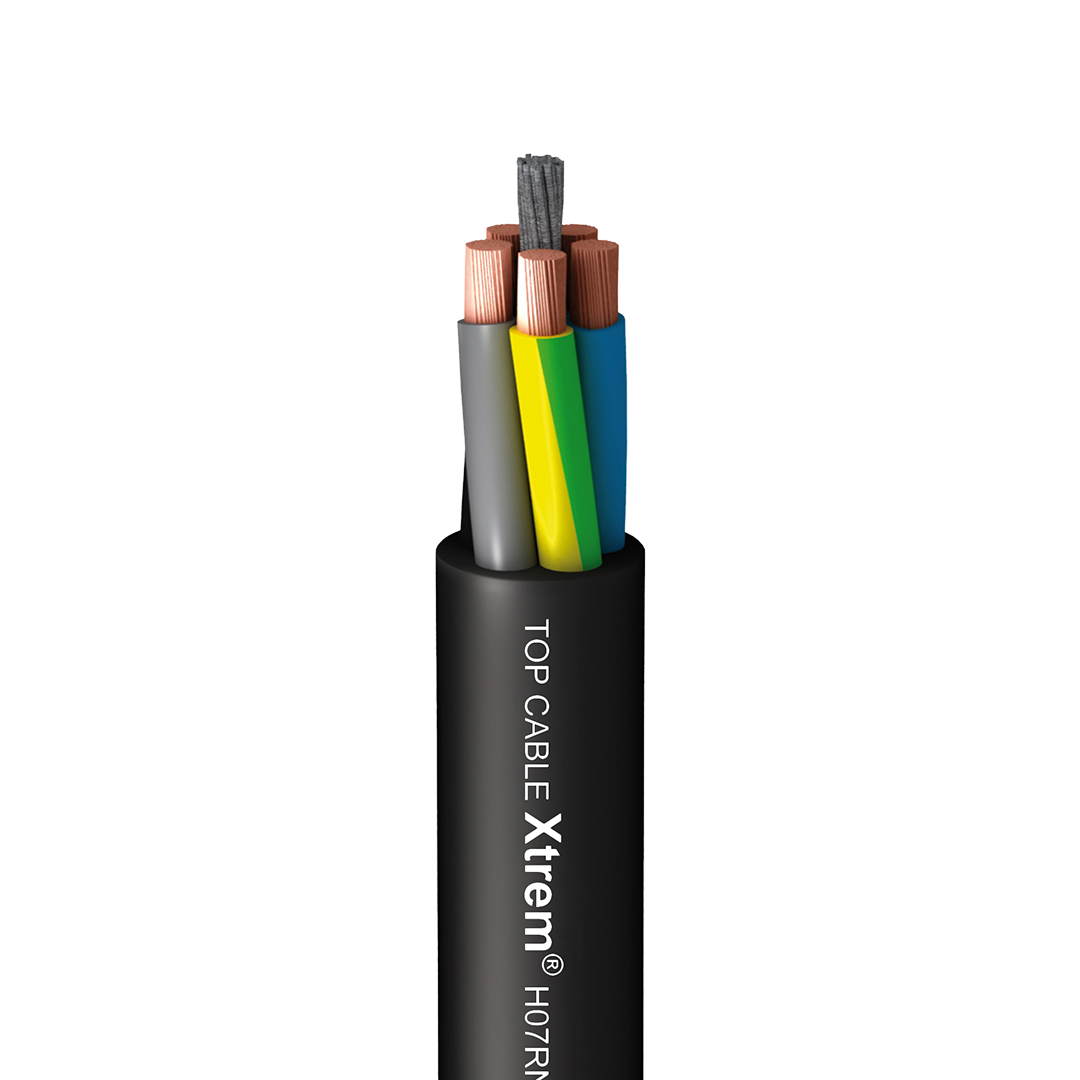

XTREM H07RN-F

The heavy-duty rubber version — a tough rubber sheath for abrasion, impact and repeated flexing. For construction, mobile plant, pumps, hoists and harsh outdoor power.

Learn about H07RN-F →

Need low-smoke zero-halogen for fire-critical, marine or public-space wiring? Browse the TOXFREE ZH range →
Need help specifying?

Talk to a Product Application Consultant.

Our PACs assist with multi-standard export builds, conductor sizing, colours, compliance and cut-to-length — cutting TOPFLEX MS to length off the reel before it ships. Technical support from local experts across QLD/NT, NSW/ACT and VIC/SA/TAS.

Talk to a PAC
Frequently asked questions

Power Flex TOPFLEX MS Tri-rated

  • Approved to multiple regional standards in one cable — here EN (50525-2-31), BS (6231), UL (758) and CSA (C22.2) — so the same wire suits AU/EU, UK and North American-bound equipment without re-spec.
  • H = harmonised · 07 = 450/750 V · V2 = high-temperature PVC insulation · K = Class 5 flexible conductor. The 300/500 V version is H05V2-K, for small-device wiring.
  • Building wire carries one regional approval and lower temperature ratings. TOPFLEX MS is tri-rated, 105 °C, extra-sliding and export-ready — one part number for multiple markets.
  • MS is high-temperature PVC, tri-rated, for general panels and export equipment. TOXFREE ZH is low-smoke zero-halogen for fire-critical, marine and public spaces. Choose MS for compliance and temperature; choose TOXFREE ZH where smoke and halogen matter in a fire.
  • 105 °C maximum conductor temperature (UL/CSA), 90 °C (EN/BS), down to −40 °C in fixed and protected installations.
  • Yes — flame non-propagating to EN/IEC 60332-1 and UL VW-1, with CPR reaction-to-fire class Eca.
  • Internal wiring of cabinets, switchboards and small devices, in conduit or flexible motor ducts. Suited to protected indoor installations (AD3 — water sprays).
  • 0.5–6 mm² on 100 m reels (barrels on request), 10–16 mm² on reels or drums, 25 mm² and up on drums. Meter-marked from 10 mm², and cut to length via TROPAC.
Power Flex · TOPFLEX MS Tri-rated

One cable. Four standards. Zero re-wire.

TOPFLEX MS is stocked across Australia through TROPAC, cut to length and meter-marked. Talk to a PAC for multi-standard export builds, sizing, colours and compliance — or browse the range online.
