Built for the jobs that destroy ordinary cable.
Where it's specified
Made for the hard jobs.
Construction
Site power & temporary supply
Mobile plant
Hoists, reels & machinery
Submersible pumps
Bores, wells & drinking water
Mining & quarry
Abrasive, crushing duty
Events & temporary
Staging, AV & generators
When you need rubber.
Most jobs are fine on PVC. But on sites with constant movement, dragging, crushing and impact, PVC cracks and fails. That's where H07RN-F earns its place. Here's how it sits against the cables it steps up from.
|
|
|
|
|---|---|---|---|

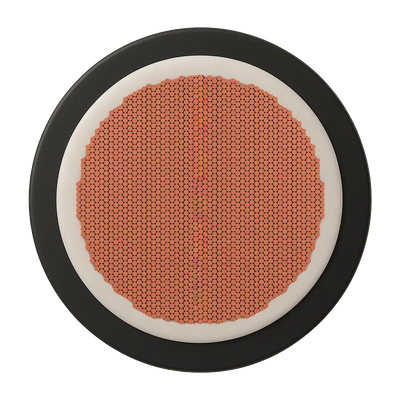

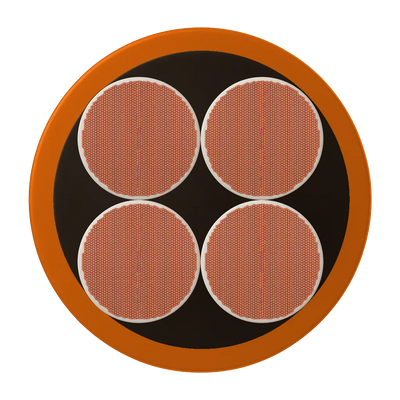

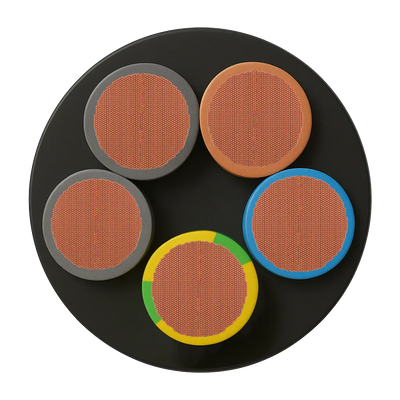

| Standard PVC | RV-K (XLPE) | XTREM H07RN-F | |
| Best for | Fixed installs | Industrial all-rounder | Mobile & extreme |
| Sheath | PVC | PVC | Thermoset rubber |
| Abrasion / impact | Low | Medium | Very high |
| Repeated flexing | No — cracks and fails in service | Limited | Yes — mobile / trailing |
| Oil & weather | Limited | Good | Excellent · UV & oil resistant |
| Water rating | Damp only | AD8 submersible | AD8 submersible |
Indicative positioning. H07RN-F is rated 450/750 V — use it for portable, mobile and mechanically punishing duty rather than fixed sub-mains.
Which H07RN-F do you need?
| Conductor size | Cores | Current rating (indicative) | Nominal OD | |
|---|---|---|---|---|
| 1.5 mm² | 1C | 18 A | 6.4 mm | Shop this size → |
| 2.5 mm² | 1C | 26 A | 7.2 mm | Shop this size → |
| 4 mm² | 1C | 34 A | 8.0 mm | Shop this size → |
| 6 mm² | 1C | 44 A | 8.8 mm | Shop this size → |
| 10 mm² | 1C | 61 A | 10.8 mm | Shop this size → |
| 16 mm² | 1C | 82 A | 12.4 mm | Shop this size → |
| 25 mm² | 1C | 108 A | 15.2 mm | Shop this size → |
| 35 mm² | 1C | 135 A | 16.8 mm | Shop this size → |
| 50 mm² | 1C | 168 A | 19.2 mm | Shop this size → |
| 70 mm² | 1C | 207 A | 21.8 mm | Shop this size → |
| 95 mm² | 1C | 250 A | 24.6 mm | Shop this size → |
Sizes shown are the common stocked range. Current ratings are a guide only (≈30 °C ambient, in air), the same guide figure is shown across 2–5 core counts, and actual ratings vary with core count and installation method — always confirm against the datasheet. Need a size not listed, or cut-to-length? Talk to a PAC →
When the site is brutal
Out on site, cable gets dragged, run over, crushed, twisted and left in the weather. PVC isn't built for it — it cracks, splits and fails.
XTREM H07RN-F is engineered for exactly that. Thermosetting rubber insulation and a tough thermosetting rubber outer sheath give it outstanding resistance to abrasion, impact, tearing, oil, chemicals and UV — while staying flexible for repeated coiling, dragging and trailing duty. It handles full submersion (AD8) and a wide temperature range (−40 °C fixed, −25 °C mobile, to 90 °C), indoors or out.
The cable you stop replacing. Spec H07RN-F for portable tools, mobile plant, hoists, generators, temporary power and submersible bore pumps — it's even approved for drinking-water pumps to AS/NZS 4020 — and it outlasts every PVC alternative on punishing jobs.
Exclusive Australian distributor — Top Cable.
TROPAC holds the exclusive distribution agreement for Top Cable in Australia. We hold deep local stock of the XTREM H07RN-F range in QLD, NSW and VIC, ready for same-day dispatch and cut-to-length to your run.
Full compliance documentation available — so you can specify with confidence that your cable meets all required specifications and performance requirements for the project.
Specify with confidence.
Need a different cable?
H07RN-F is the heavy-duty choice. For other jobs, step across to its siblings in the Top Cable cable range.
awuerbu92bktwbgrmtaigenblock3aa90d8d7hbwr

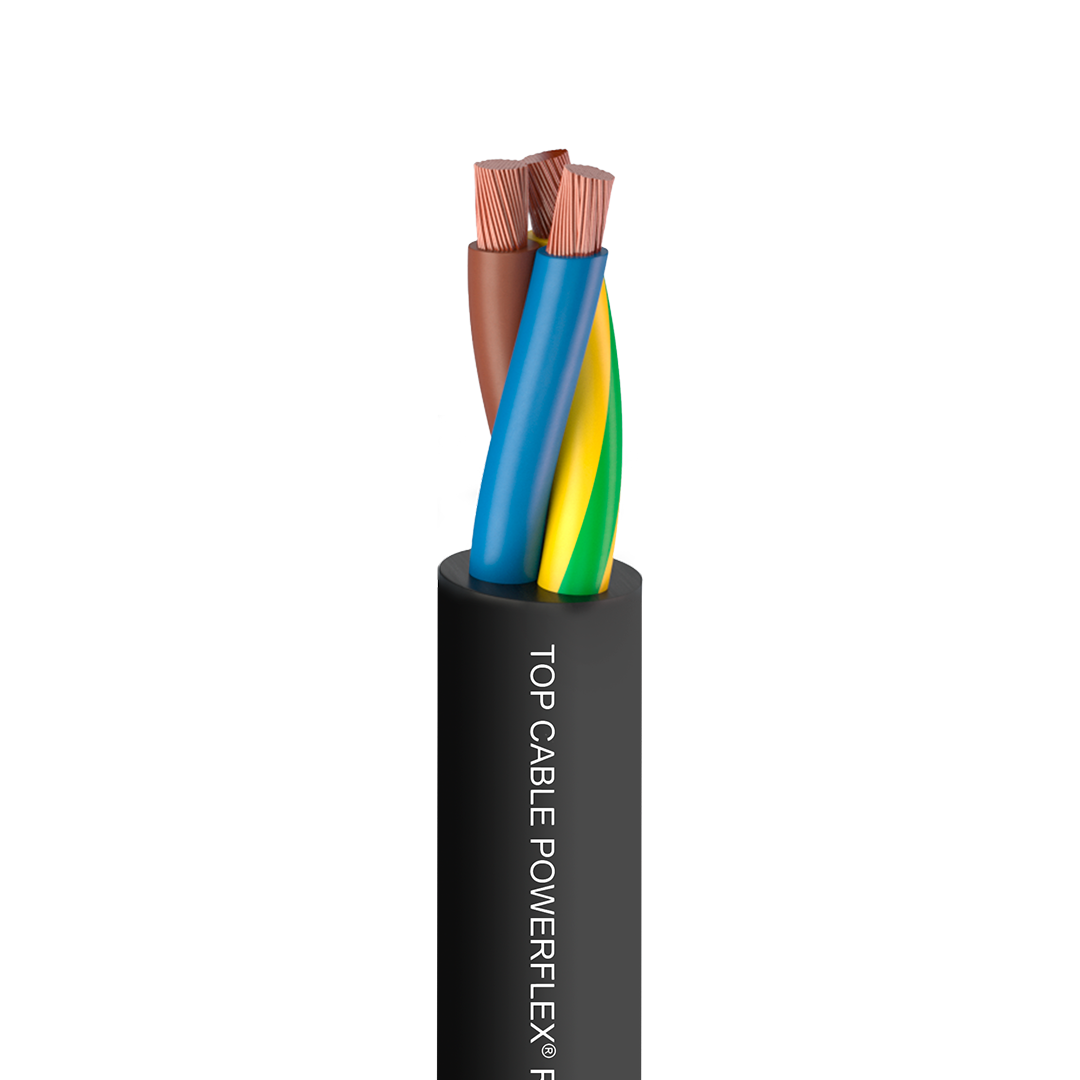

The standard fixed-install version — 0.6/1 kV, 90 °C XLPE, Class 5 — for sub-mains, VSD feeders and cable trays that don't take heavy mechanical punishment. Lower cost than rubber.
awuerbu92bktwbgrmtaigenblock3aa90d8d7hbwr
The low-smoke zero-halogen (LSZH) version — XLPE-insulated and CPR-classified (B2ca / Cca) to stay low-smoke and non-toxic in a fire. For public buildings, data centres, hospitals, schools and transport.
Talk to a Product Application Consultant.
Our PACs assist with cable selection, current and voltage sizing, compliance and installation advice — and cut H07RN-F to length off the drum before it ships. Technical support from local experts across QLD/NT, NSW/ACT and VIC/SA/TAS.

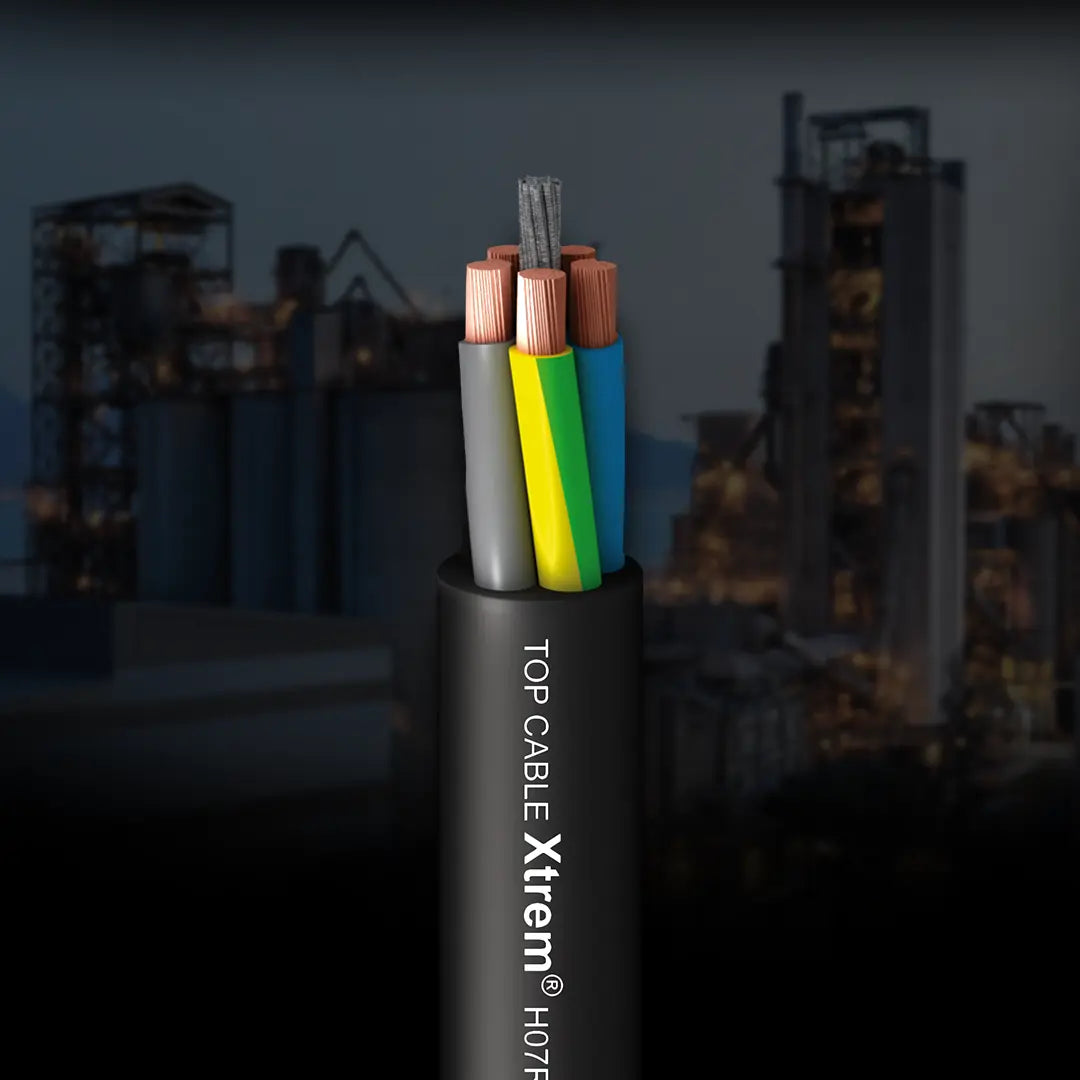

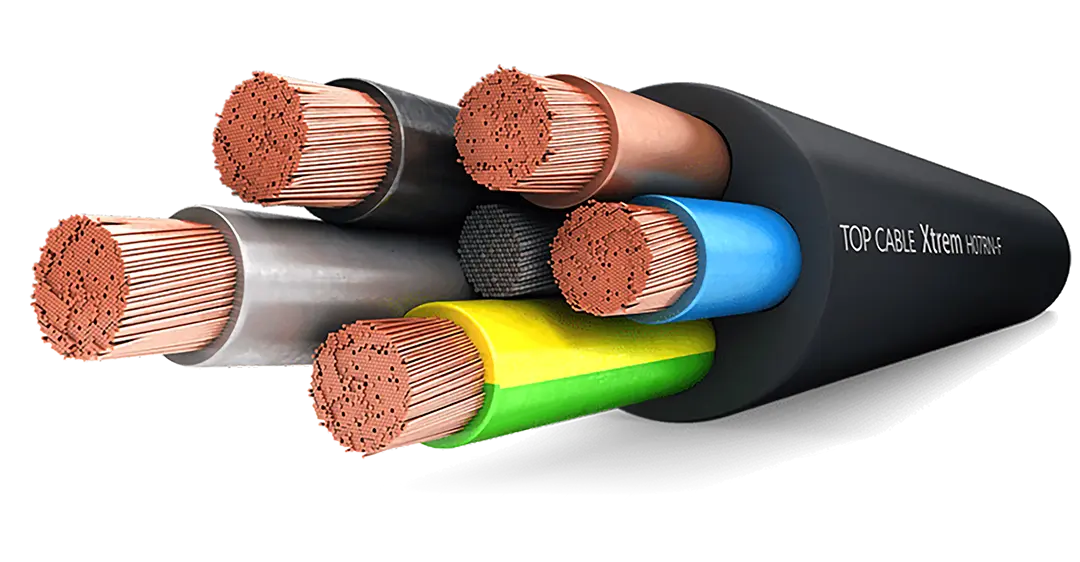

Top Cable XTREM H07RN-F
-
H07RN-F is the harmonised designation for a heavy-duty rubber flexible cable rated 450/750 V. It uses Class 5 flexible copper, thermosetting rubber insulation (type EI7) and a tough thermosetting rubber sheath (type EM2), making it the standard choice for portable, mobile and mechanically demanding applications. XTREM H07RN-F is manufactured by Top Cable.
-
Use H07RN-F wherever the cable is moved, dragged, coiled, run over or exposed to constant mechanical stress — construction, mobile plant, pumps, hoists, generators and events. PVC and RV-K are designed for fixed installation; H07RN-F is built for movement and abuse.
-
Yes — XTREM H07RN-F is approved for submersible pumps in drinking (potable) water to AS/NZS 4020, with AWQC certification, and is rated AD8 for full submersion. It's well suited to bores and deep wells.
-
Indoors and outdoors, on sites, in agriculture and industry, for portable and mobile equipment, and submerged in water (AD8). Its rubber construction handles weather, oil and UV. See the datasheet for temperature and submersion limits.
-
The thermosetting rubber sheath (type EM2) gives excellent resistance to abrasion, impact, tearing, crushing, oils, chemicals and UV — well beyond PVC. It stays flexible for repeated coiling and trailing without cracking.
-
Yes — it is certified flame retardant (non-propagation) to EN 60332-1 / IEC 60332-1, with CPR reaction-to-fire class Eca. For low-smoke zero-halogen performance in public or enclosed spaces, specify the TOXFREE N2XH flex (AS) range instead.
-
XTREM H07RN-F is manufactured to EN 50525-2-21 / IEC 60092-353 / IEC 60245-4 at 450/750 V (up to 1000 V in fixed protected assemblies) and carries HAR, AENOR, DNV, RoHS and CE approvals (CPR Eca). It is also approved for submersible pumps in drinking water to AS/NZS 4020.
-
Available in a wide range of cross-sections and core counts, supplied on 100 m or 500 m drums or cut to length. Talk to a PAC for the right configuration for your job.
-
With national distribution, deep inventory and local technical support, you get consistent supply of genuine, fully traceable Top Cable product, rapid delivery and expert help selecting the right cable for the application.
The cable that takes a beating.
Spec H07RN-F for the jobs that wreck ordinary cable — stocked, cut to length and supported locally through TROPAC.
Need help specifying?
Send the team your application and a TROPAC Product Application Consultant will come back with the right Top Cable product, stock position and account pricing — usually same business day.
- Selection & cross-reference from your current part numbers
- Live stock check across QLD, NSW & VIC
- Trade-account & project pricing
