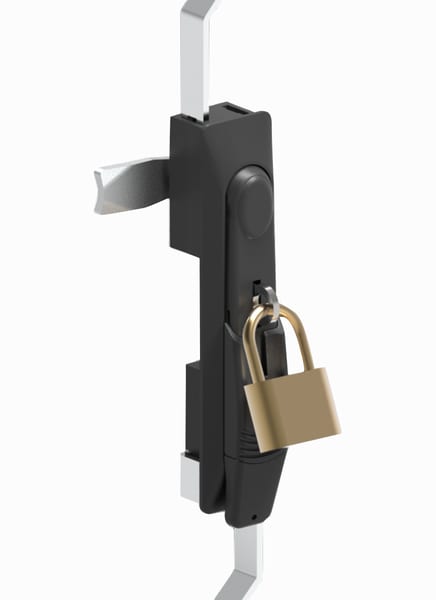

Black Polyamide Swing Handle for Electrical Cabinets - 3 Point Locking, Key Lockable & Padlockable

SKU
£32.33 ex. VAT £38.80 inc. VAT
In stock
14 in stockUpdated just nowShipping & pickup →
  • Type 3 Point Locking, Padlockable
  • Material Polyamide & Cast Alloy
  • Colour Black

Black Polyamide Swing Handle for Electrical Cabinets - 3 Point Locking, Key Lockable & Padlockable

FEATURES

– Sliding dust cover
– Ergonomic handle
– Padlockable

MATERIAL

BODY: Polyamide DIN-EN ISO 1043-1 PA6 GFR 30
HANDLE: Cast Alloy Zamak Black Coated
CAM: Steel
SEAL: Polyurethane
Cylinder: Keyed Alike

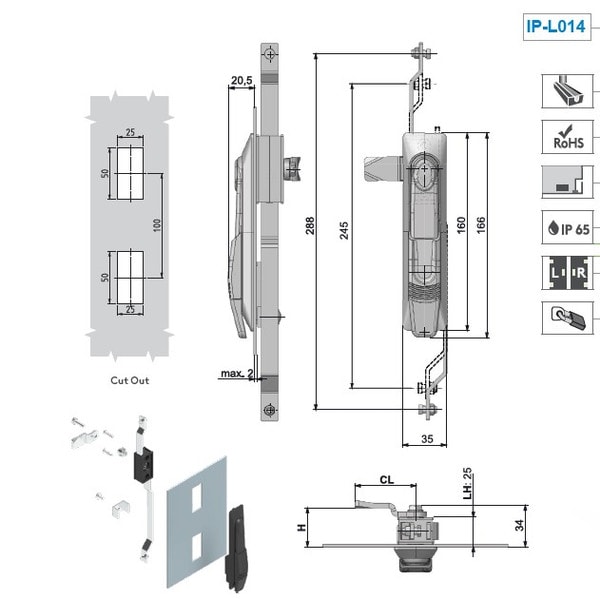

DIMENSIONS

H=32mm

CL=49mm

Suits IP Enclosures Cabinets with an Existing 3 Point Locking System
