IP Enclosures

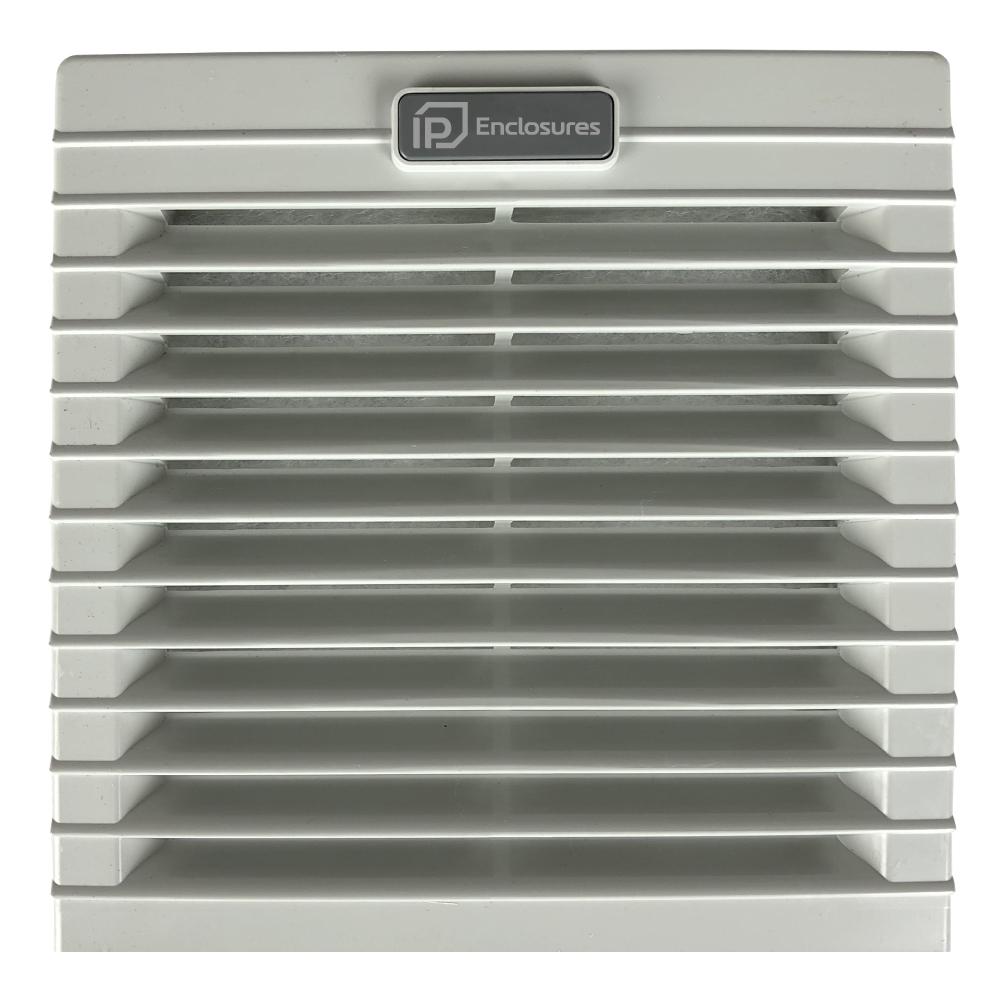

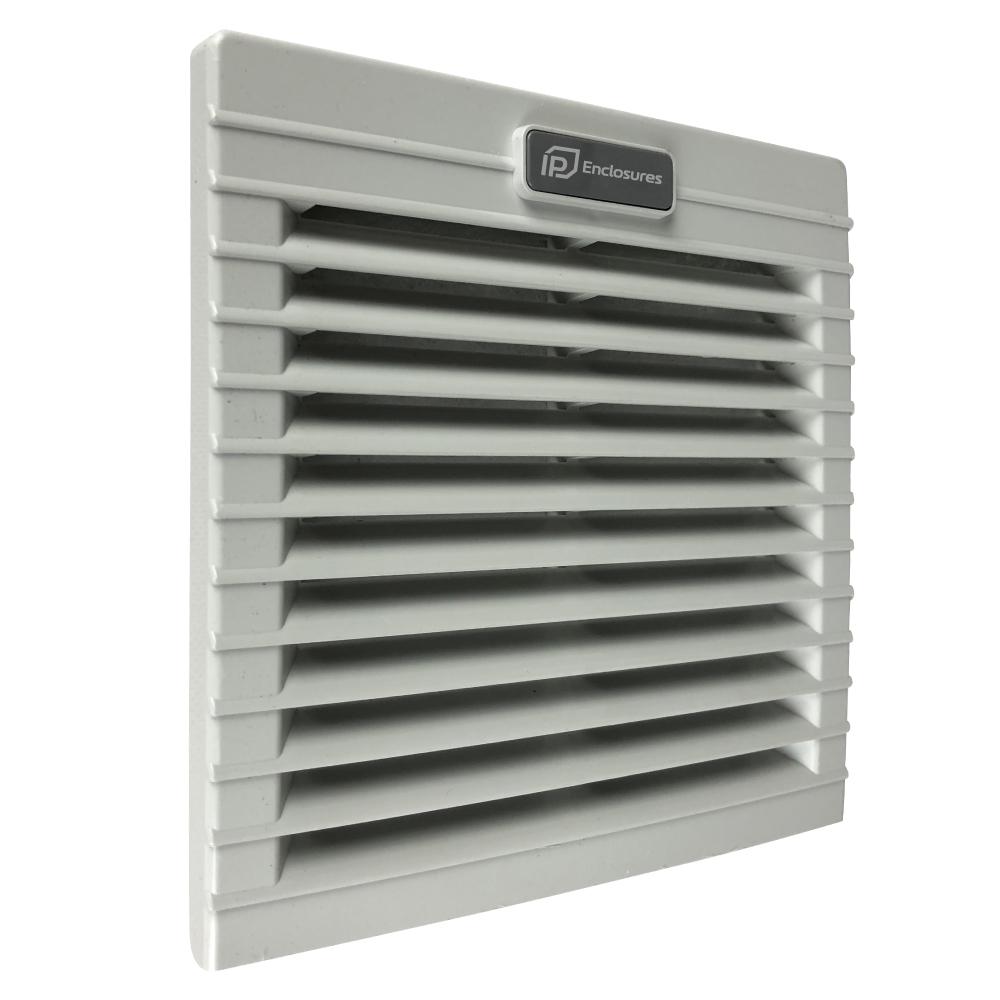

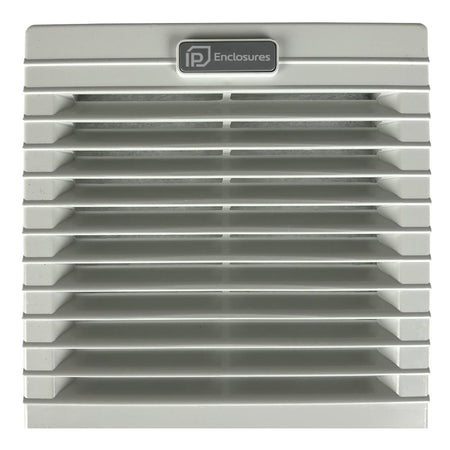

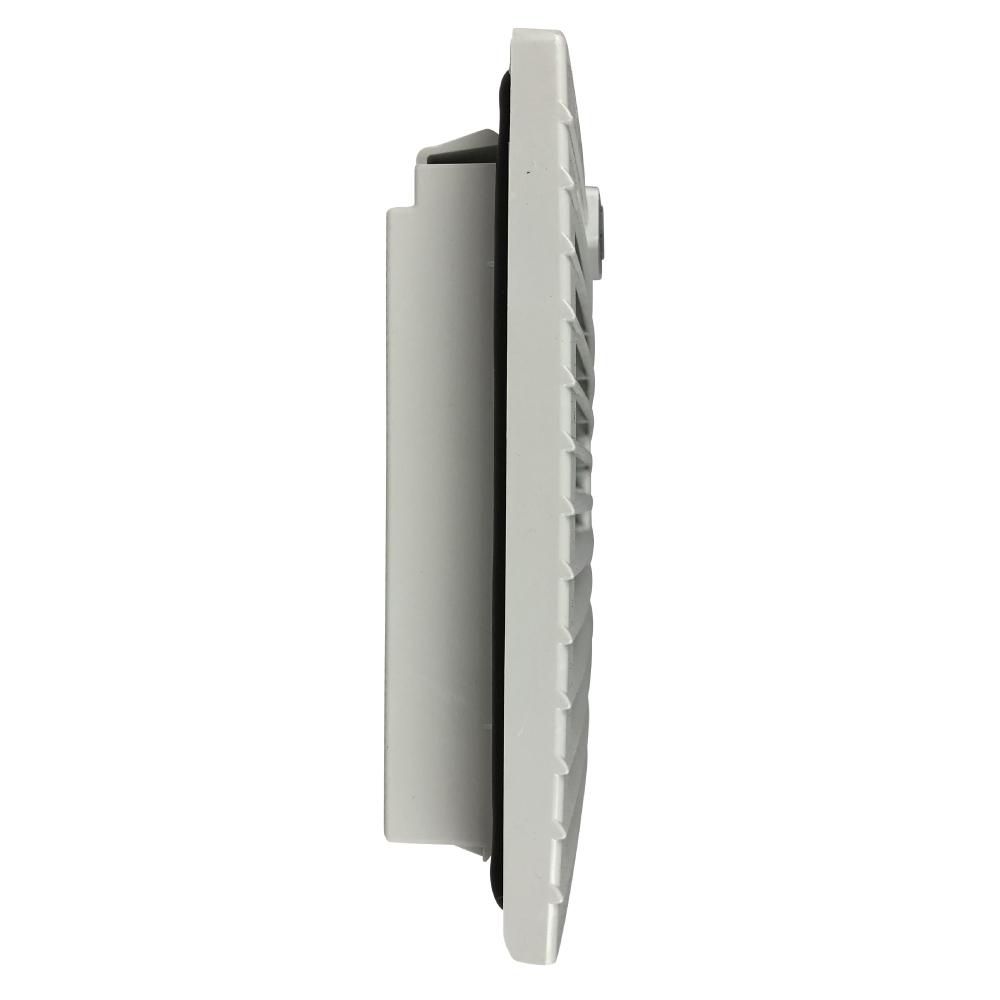

Filter Vent 150 x 150

SKU
£12.35 ex. VAT £14.82 inc. VAT
In stock
96 in stock across 1 warehouse
Free Shipping

Ask an expert!

Chat Email 01527 433383
  • Height (mm) 150
  • Width (mm) 150
  • Colour Grey
  • IP Rating IP54

Filter Vent 150 x 150

High quality Italian vent filter grille for electrical enclosures. Designed for easy front access maintenance for fast filter mat cleaning and replacement.

G3 Filter Mat Included.

Features Unit IP-V2000
Air flow rate (free blow) m³/h –
Flow rate with exit filter m³/h –
Power supply V/Hz –
Dimensions HxLxP mm 150x150x37
Power consumption W –
Current consumption A –
Overcurrent consumption – –
Electric connection – –
Duty cycle – –
Operating temperature °C – 10 / +70 (+14 / +158)
Protection degree/class – IP54
Noise level dB(A) –
Flow direction – –
Bearing – –
Filter mat (Eurovent) – G3
Service life (at 40°C) hr –
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 0.18 (0.23)
Package dimensions mm 165x165x45
Montaggio – fast clip-on
Cut-Out dimensions mm 124×124
Conformity/Approvals – CE

Standards & certifications

IP54Dust-protected · splashing
Product Datasheet PDF Dimensional Drawing PDF Dimensional Drawing DWG

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
