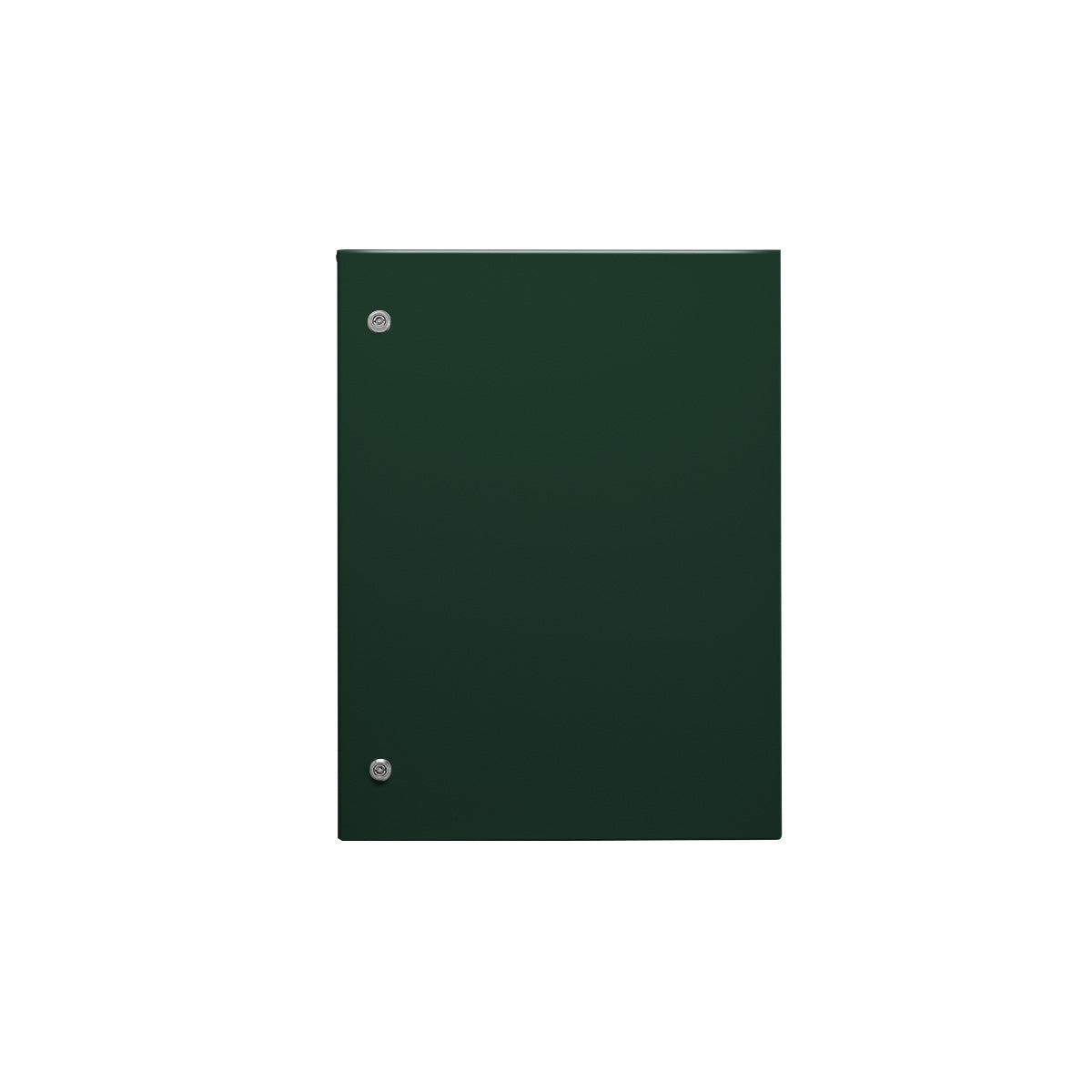

Electrical Enclosure 800H x 600W x 300D IP66 Green — IP Enclosures

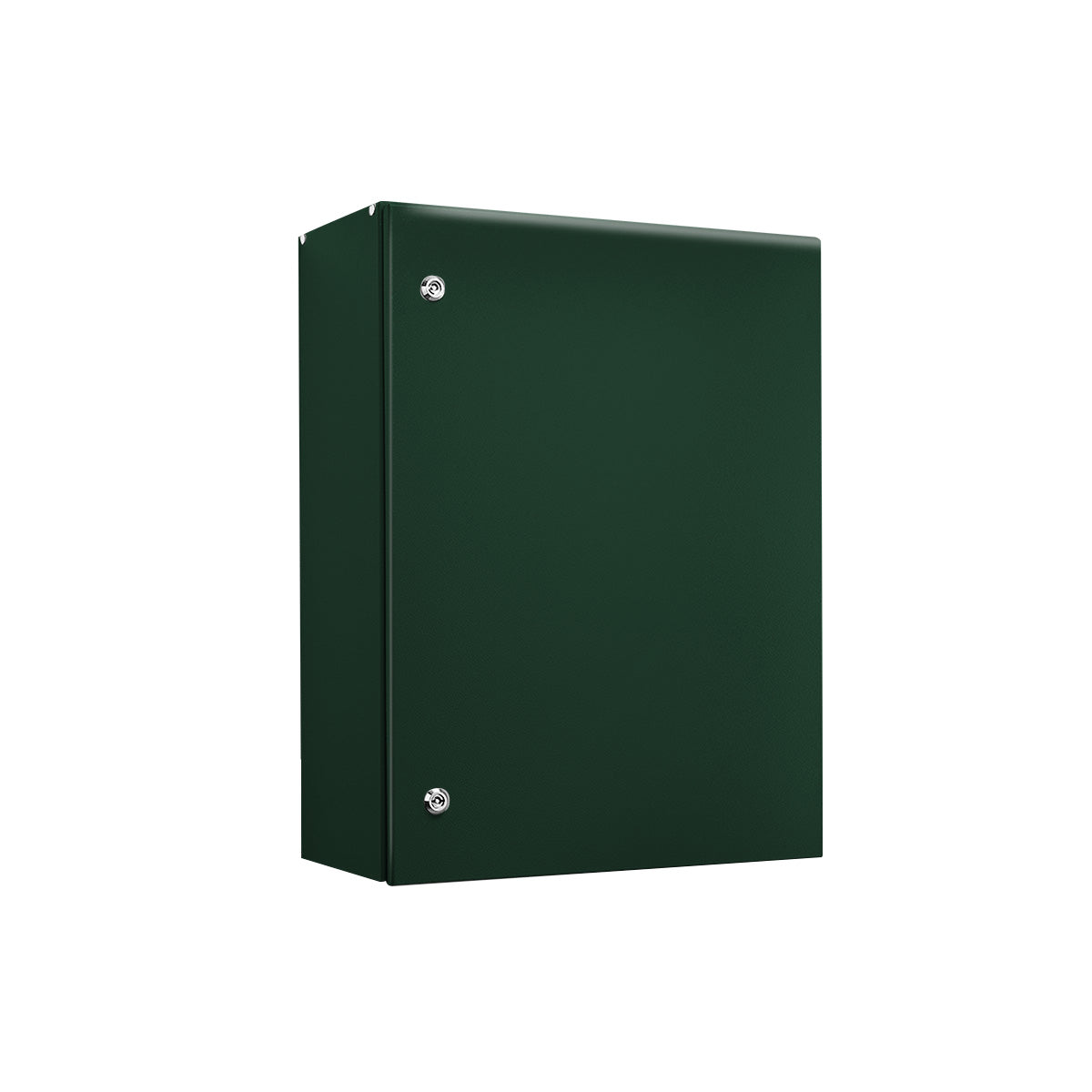

IP-806030-GRN - image 2
Electrical Enclosure 800H x 600W x 300D IP66 Green — IP Enclosures
IP-806030-GRN - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Electrical Enclosure 800H x 600W x 300D IP66 Green

SKU
£250.51 ex. VAT £300.61 inc. VAT
In stock
3 in stock across 1 warehouse
  • Series S1
  • Height (mm) 800
  • Width (mm) 600
  • Depth (mm) 300
  • Material Galvanised Steel
  • Colour Green
  • Finish UL Approved Epoxy Polyester Powder Coat
  • IP Rating IP66 IK10
  • Seal Type Polyurethane FIP
  • Lock Type 5mm Double Bit Quarter Turn
  • Door Type Single Door
  • Operating Temp −40°C to +80°C
  • Standards
    • IEC 62208
    • IEC/EN/AS60529
    • IEC/EN 61439
  • Certifications
    • IP66
    • IK10
    • CE
    • UKCA
    • UL
    • NEMA
    • RoHS

Electrical Enclosure 800H x 600W x 300D IP66 Green

Standards & certifications

IP66 IK10Dust-tight · powerful jets IEC/EN/AS60529Ingress protection CEEU conformity UKCAUK conformity ULUS safety listed NEMAUS enclosure rating RoHSHazard-free IEC/EN 62208 · 61439 Tested standards

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
