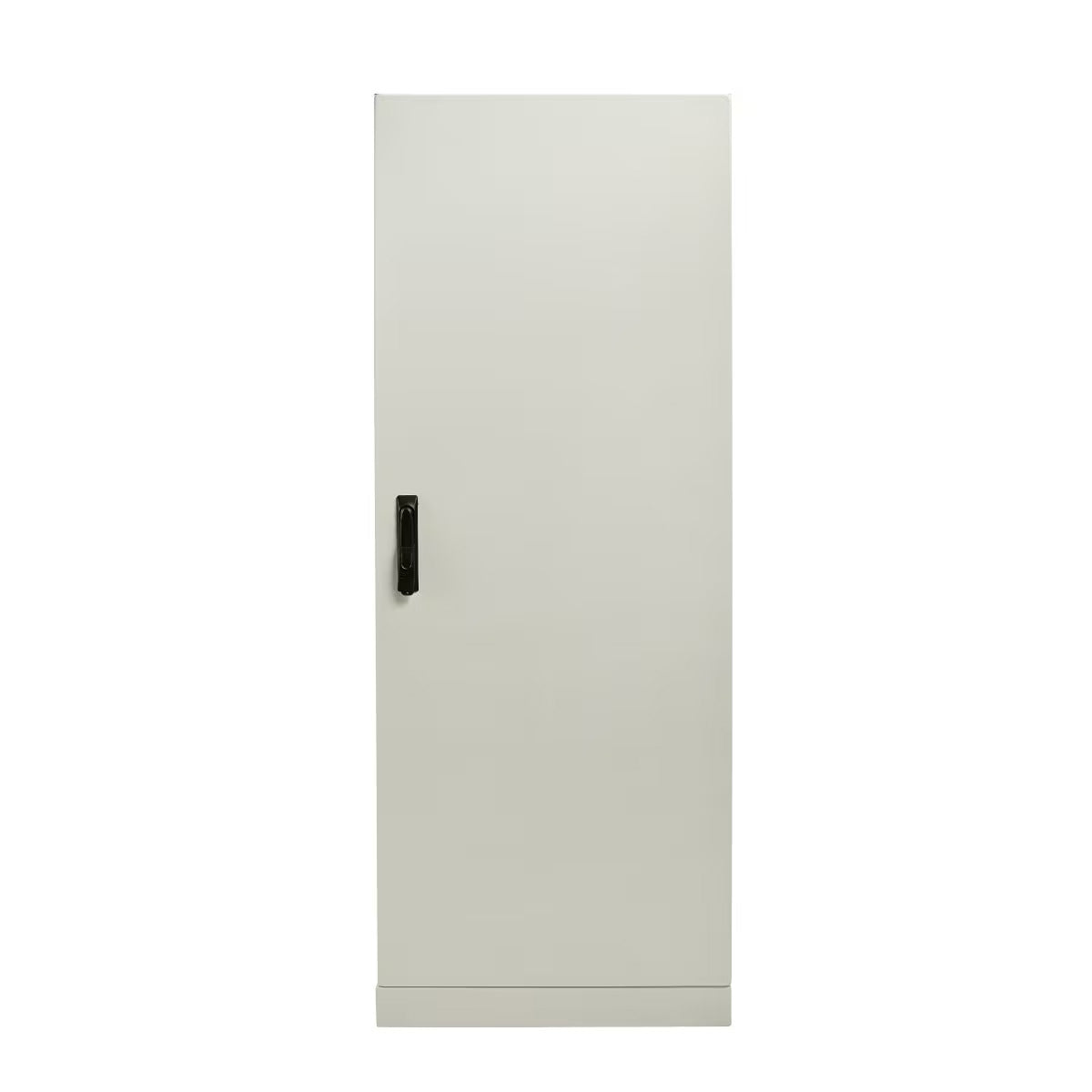

Electrical Enclosure 1600H x 800W x 600D IP66 with 100mm Plinth
IP Enclosures MF1S range of floor standing electrical cabinets are rated for protection up to IP55 and are suitable for general industrial applications.
Features and Specifications
Protection: IP55 (Independent accredited test laboratory).
Standard: IEC 62208, IEC/EN/AS60529, RoHS
Material:
Main Frame: 2.0mm Galvanised Steel W Profile System
Side, Rear & Roof Panels: 1.2mm Powder-Coated Galvanised Steel Sheet
Front Door: 2.0mm Powder-Coated Galvanised Steel Sheet
Mounting Plates: 2.0mm Galvanised Steel Sheet
Seal: EPDM
Frame:
The robust modular main structure is fabricated using 2.0mm galvanised steel sheet W Profile system with 20mm hole pattern.
Door:
The robust door is fabricated using 2.0mm powder coated galvanised steel sheet and incorporates four concealed hinges. The door is designed for a 135° opening. Each door contains integral cable management rails with 20mm hole pattern, M6 earth stud and document pocket.
Side, Rear and Roof Panels:
Removable panels are fabricated using 1.2mm powder coated galvanised steel sheet.
Base:
Base is 100mm high.
Enclosure Seal:
High quality EPDM replaceable door seal
Enclosure Lock:
4 point locking system with key-lock swing handle.
Device Mounting Plate:
The device mounting plate is fabricated using 2.0mm mm galvanised steel sheet, pressed to provide additional strength.
Earthing:
All panels are earthed to provide earthing continuity.
Surface Treatment:
UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL7035.
