24U X 800W X 800D IP55 19” Rack Cabinet
The IP Enclosures MF1S range of powder coated galvanised steel modular floor standing cabinets fitted with 19” racks is designed for low voltage industrial applications. The enclosure provides protection up to IP55 and features front and rear doors with precision engineered cut-outs for fans and vents to support fast assembly and effective ventilation. Top and bottom gland plates are included for efficient cable management.
Protection: IP55
Standards and Conformities: IEC/EN 60529, IEC/EN 62208, IEC/EN 61439, RoHS
Rack Unit Size: 24U
Cut-outs Size: 291mm x 291mm for fan and vent
Material:
Main Frame: 2.0mm galvanised steel W profile system
Side and Roof Panels: 1.2mm galvanised steel sheet
Front and Rear Doors: 2.0mm galvanised steel sheet
19” Data Rack Rails: 2.0mm galvanised steel sheet
Gland Plates: 1.5mm galvanised steel sheet
Seal: EPDM

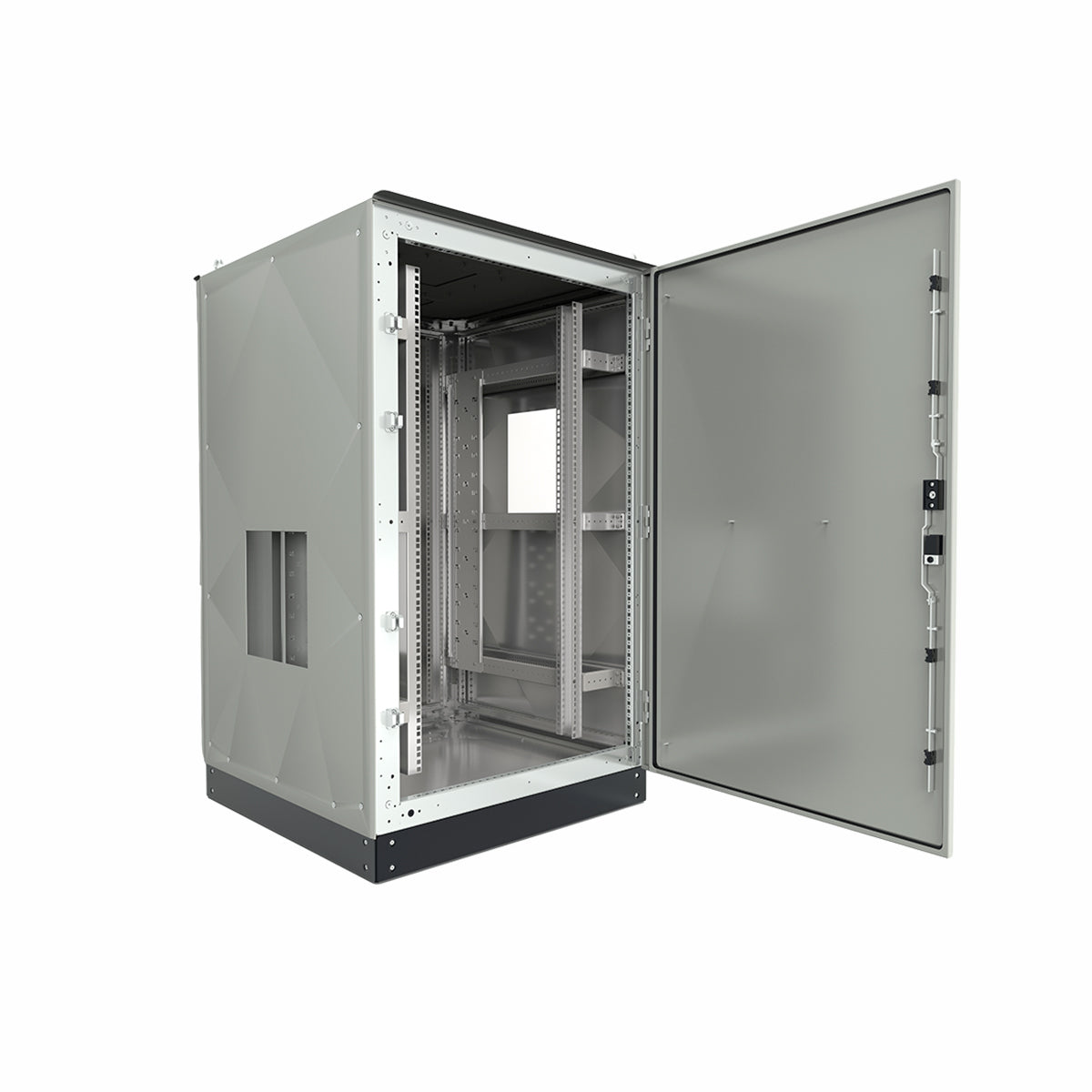

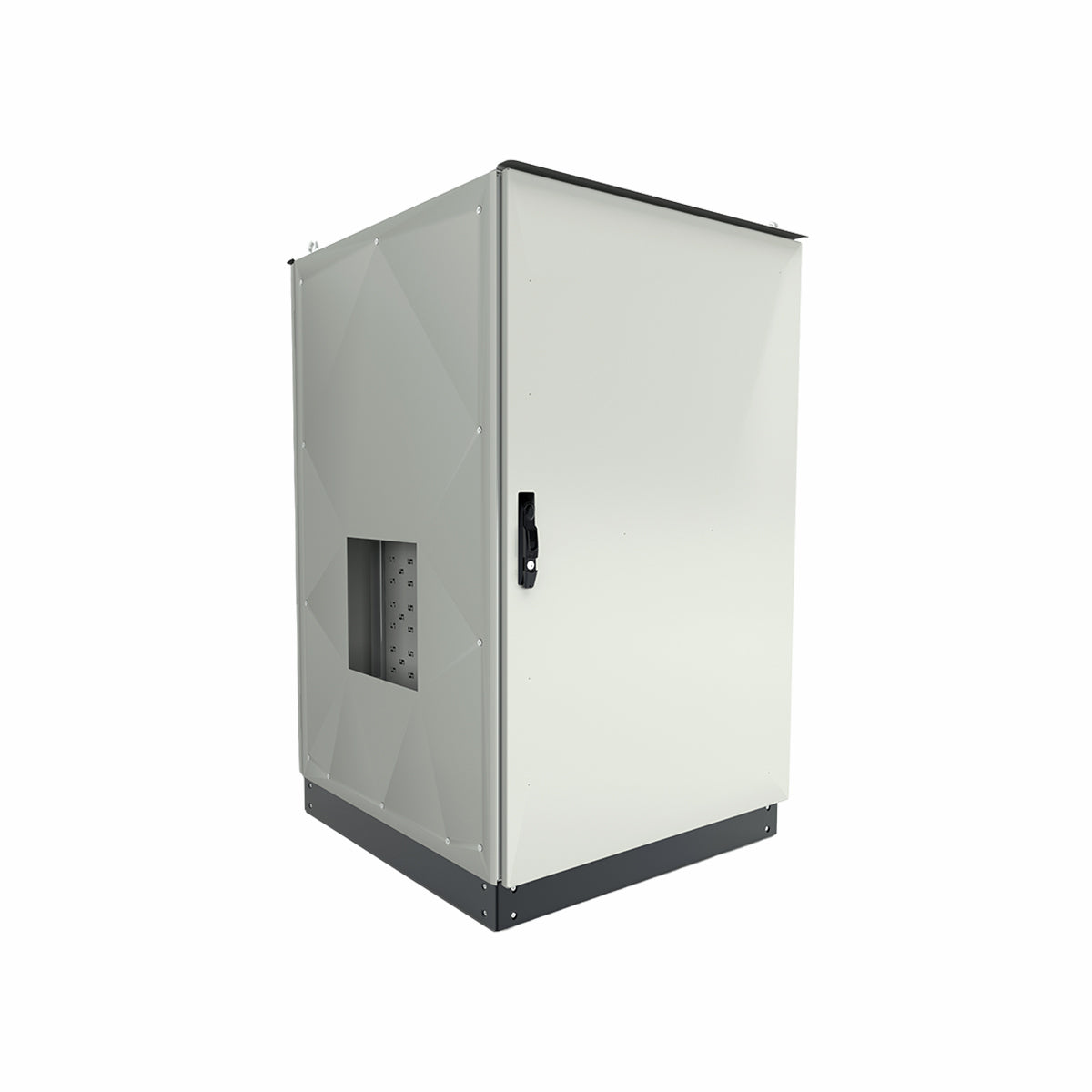

Enclosure Body and Main Frame: The modular main body and frame are fabricated from 2.0mm galvanised steel using a W profile system with a 20mm hole pattern. Galvanised steel gland plates are fitted to the top and bottom. Integrated 19” data rack rails are installed. Two 291mm x 291mm cut-outs are positioned diagonally opposite to accommodate a fan and vent.

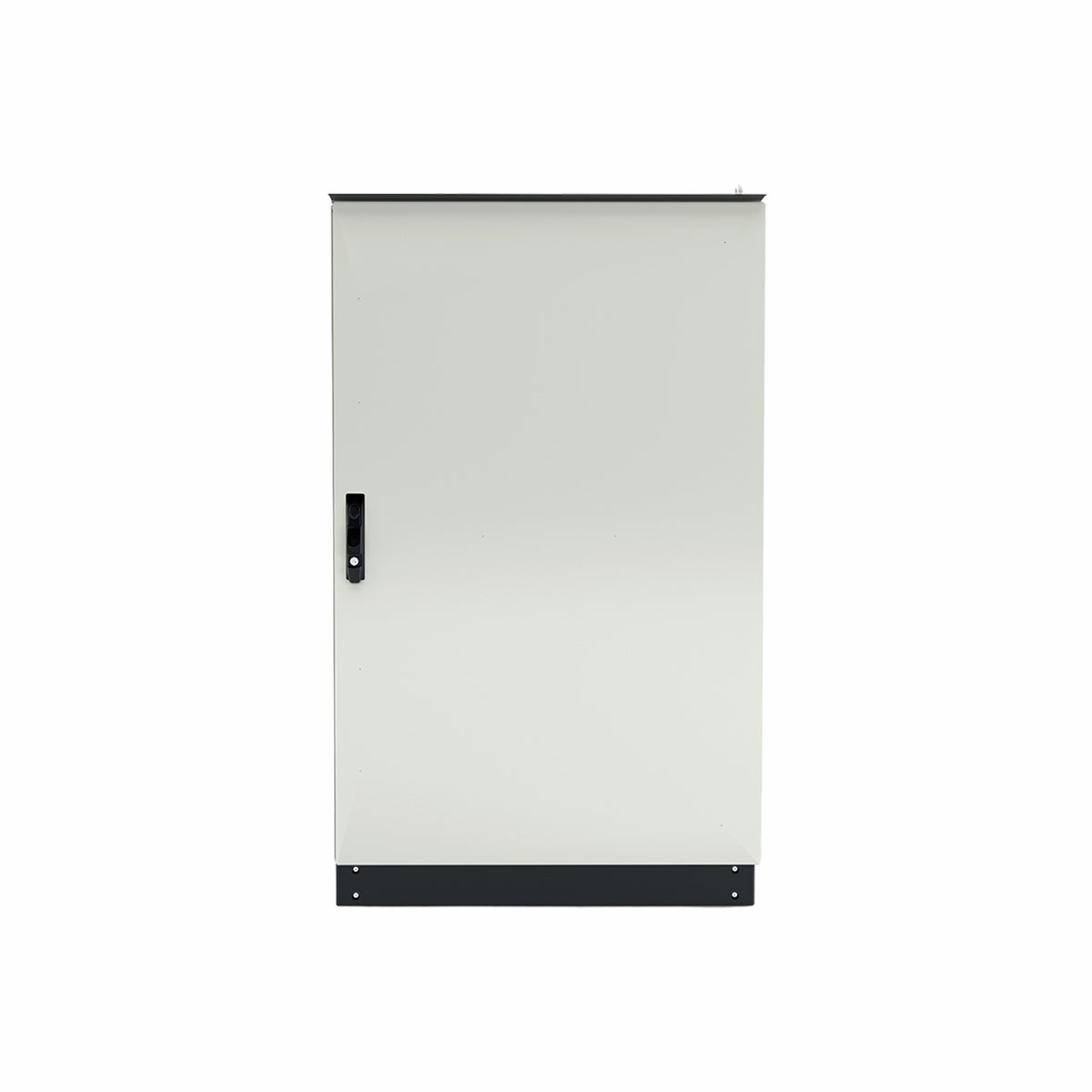

Front and Rear Doors: Fabricated from 2.0mm galvanised steel sheet with four concealed hinges. Doors open up to 135°. Each door includes earth studs.
Enclosure Side and Roof Panels: Removable panels fabricated from 1.2mm galvanised steel sheet.
Enclosure Base: 100mm high base.
Door Seal: Replaceable high quality EPDM seal.
Enclosure Locks: 4 point locking system with key lock swing handle.
Gland Plates: Fabricated from 1.5mm galvanised steel sheet and supplied with gaskets and fasteners.
Earthing: All panels are bonded to maintain earthing continuity.
Surface Treatment: UL approved AkzoNobel epoxy polyester powder coated finish with textured surface. Average coating thickness 80 to 120 microns.
Standard Colour: RAL7035 Light Grey
Mass: 136.0kg
