Tame the drive. Protect the motor.
Where it's specified
Made for drive systems.
VFD & drives
Variable-speed motor runs
Motors & pumps
Speed-controlled loads
Conveyors
Lines & materials handling
HVAC drives
Fans, blowers & chillers
Process automation
Plant & machinery
Why a screened drive cable.
Run a VFD motor on ordinary unscreened power cable and the drive's fast switching radiates electrical noise — tripping sensors, corrupting data and pitting motor bearings. A symmetrical, screened VFD cable contains it. Here's how TOPDRIVE compares to the alternatives.
|
|
|
|
|---|---|---|---|

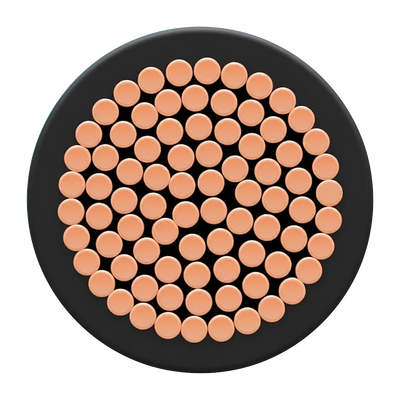

| Unscreened power (RV-K) | TOPDRIVE VFD ROZ1-K | Generic screened | |
| Best for | Mains & feeders | VFD / drive to motor | Light EMI |
| Interference faults | Unscreened — noise trips sensors & comms | 100% Al-PET + drain — signals stay clean | Partial braid — gaps in coverage |
| Earth configuration | Single | Symmetrical 3+3 | Single / asymmetric |
| Motor bearing & winding life | Unprotected — overshoot & shaft currents | Damped — protects the motor it feeds | Partial |
| Fire behaviour | Smoke + halogens | Low smoke, zero halogen | Varies |
| Insulation | XLPE 90 °C | XLPE 90 °C · Class 5 | Varies |
Rated 0.6/1 kV to IEC 60502-1 / IEC 60092-353. Specify TOPDRIVE for the run between the variable-frequency drive and the motor — the noisiest cable on the site.
Why symmetrical & screened
A variable-frequency drive switches thousands of times a second. On unscreened cable that energy escapes as electromagnetic interference — nuisance trips, corrupted instrument signals and circulating currents that pit motor bearings and shorten winding life.

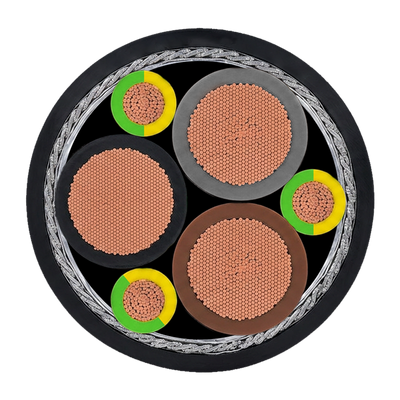

TOPDRIVE VFD ROZ1-K is engineered to contain it. An overlapping aluminium-polyester screen with 100% coverage is backed by a full tinned-copper braid — the tape and braid act as a double screen, giving the noise a low-impedance path back to the drive — while the symmetrical 3+3 earth (three grounds in the interstices) balances the impedance so common-mode currents cancel. Together they suppress leakage current and damp the reflected-wave spikes that destroy motors.
Safe and durable, too. XLPE insulation under a polyolefin LSZH sheath means low smoke and zero halogen in a fire, with chemical, oil and UV resistance for long fixed installs on the plant floor.
Exclusive Australian distributor — Top Cable.
TROPAC holds the exclusive distribution agreement for Top Cable in Australia. We hold local stock of the TOPDRIVE VFD ROZ1-K range in QLD, NSW and VIC, ready for same-day dispatch and cut-to-length to your run.
Full compliance documentation available — so you can specify with confidence that your cable meets all required specifications and performance requirements for the project.
Specify with confidence.
Need a different cable?
TOPDRIVE is the screened cable for the drive-to-motor run. For other jobs, step across to its siblings in the Top Cable cable range.
askkymva5ahq2ewroqaigenblock3aa90d8d7hbwr
The standard unscreened XLPE power cable — 0.6/1 kV, 90 °C, Class 5 — for sub-mains, feeders and cable trays where no EMC screen is needed.
askkymva5ahq2ewroqaigenblock3aa90d8d7hbwr

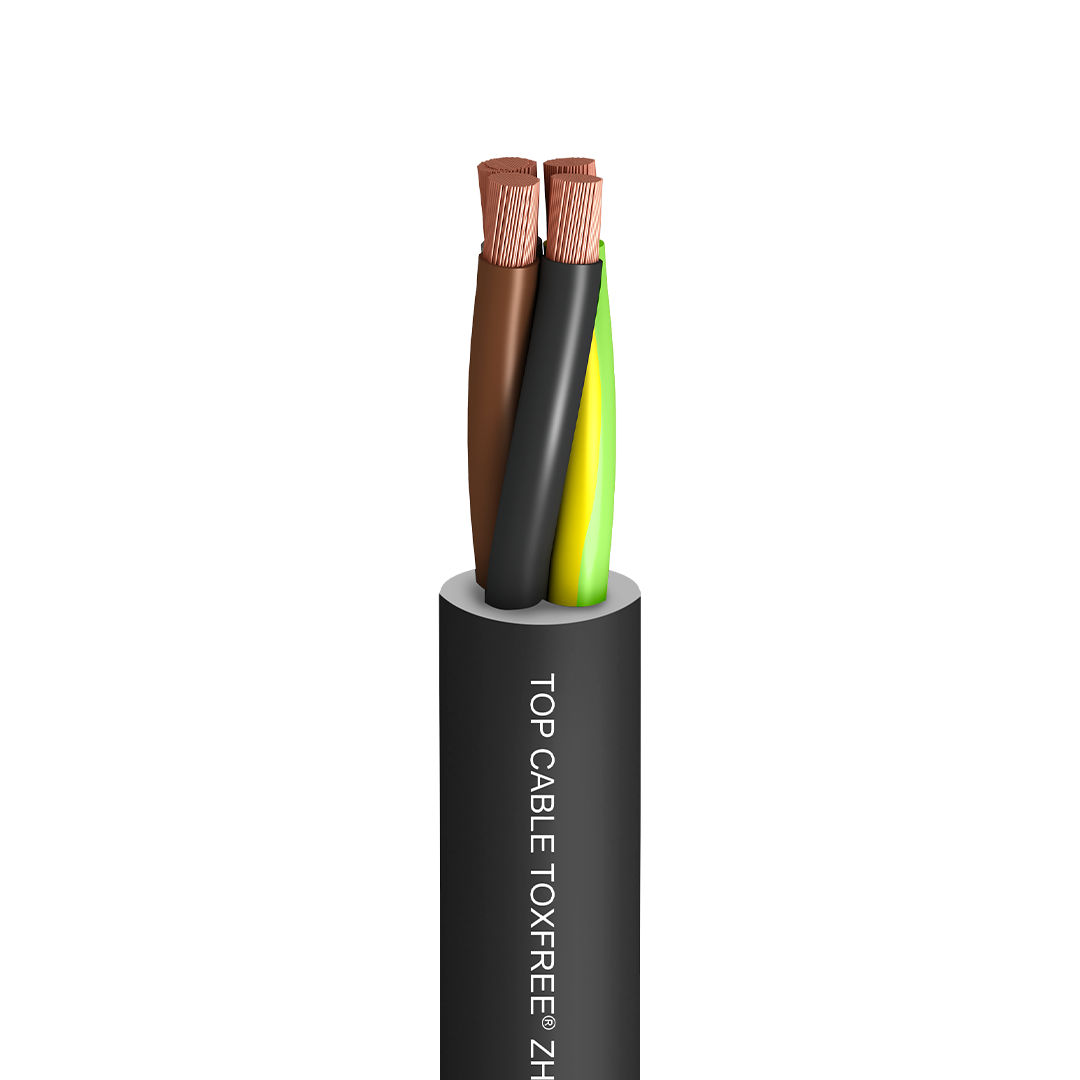

The low-smoke zero-halogen power cable — XLPE, CPR-classified (B2ca / Cca) for public buildings, data centres, hospitals, schools and transport.
Talk to a Product Application Consultant.
Our PACs assist with VFD cable selection, conductor sizing, screen earthing and EMC best practice — and cut TOPDRIVE to length off the reel before it ships. Technical support from local experts across QLD/NT, NSW/ACT and VIC/SA/TAS.

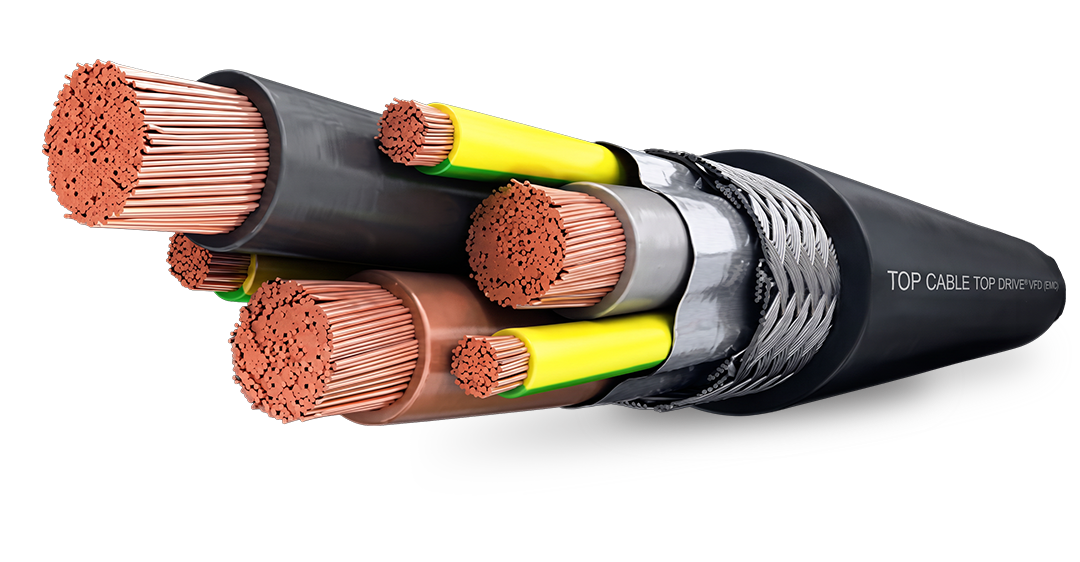

Top Cable TOPDRIVE® VFD ROZ1-K
-
A flexible, screened, low-smoke zero-halogen power cable (0.6/1 kV) designed for the run between a variable-frequency drive (VFD) and its motor. XLPE-insulated with a 100% aluminium-polyester screen and a symmetrical 3+3 earth, it limits the electromagnetic interference that drives generate.
-
A VFD switches voltage thousands of times a second. On ordinary unscreened cable that radiates EMI — nuisance trips, corrupted instrument signals and circulating currents that pit motor bearings and shorten winding life. A screened, symmetrical VFD cable contains the noise and protects the motor.
-
Three ground conductors balanced in the interstices around the phases give common-mode currents a balanced, low-impedance return path so they cancel — cutting shaft voltages and bearing damage. A 4G configuration (single full-size earth) is available up to 4 mm².
-
An overlapping aluminium-polyester tape gives 100% coverage, backed by a full tinned-copper braid — the tape and braid act as a double screen — for a reliable termination. Earth the screen 360° at both ends (drive and motor) for best EMC performance.
-
Yes. LSZH to IEC 60754-1, low corrosive gases to 60754-2, light transmittance >80% (61034). Flame and fire retardant to 60332-1 / 60332-3 and EN 50399, with a CPR class of Cca-s1a,d1,a1.
-
0.6/1 kV with XLPE insulation, a 90 °C maximum conductor temperature and 250 °C short-circuit rating (max 5 s). Maximum ambient 60 °C; minimum service ‒40 °C (fixed, protected).
-
Open air, buried or in conduit, with a minimum bending radius of 10× the cable diameter — larger than standard power cable, so plan the routing. UV resistant (EN 50618) with AD5 (jets) water resistance. It also carries ABS, DNV, Lloyd's and BV marine approvals.
-
Available in a range of cross-sections and 3+3 / 4G configurations, supplied on drums or cut to length. Talk to a PAC for the right size and current rating for your drive and motor.
Quiet the drive. Save the motor.
Specify TOPDRIVE for every variable-frequency-drive run — 100% screened, symmetrical 3+3 earth, low-smoke zero-halogen, stocked, cut to length and supported locally through TROPAC.
Need help specifying?
Send the team your application and a TROPAC Product Application Consultant will come back with the right Top Cable product, stock position and account pricing — usually same business day.
- Selection & cross-reference from your current part numbers
- Live stock check across QLD, NSW & VIC
- Trade-account & project pricing
